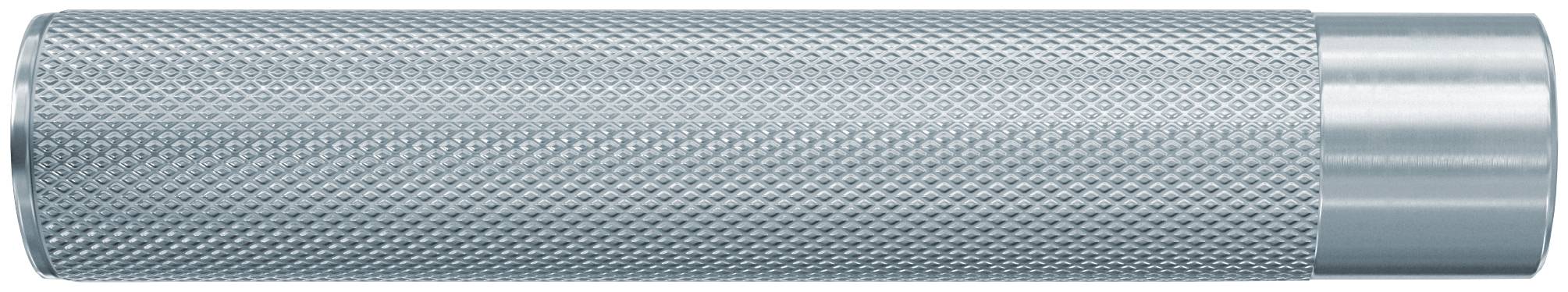

Fischer 43631 FIS E 11 x 85 M 6 Plug with internal thread 85 mm 14 mm 10 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
14 mm
- Product type
Plug with internal thread
- Material
Steel
- Length
85 mm
- Screw diameter
6 mm
- Dim
(Ø x L) 14 mm x 85 mm
- Suitable for
Flintlime bricks
Solid brick
Concrete
Pumice
- Content
10 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477634 Fischer 43631 FIS E 11 x 85 M 6 Plug with internal thread 85 mm 14 mm 10 pc(s)
Description

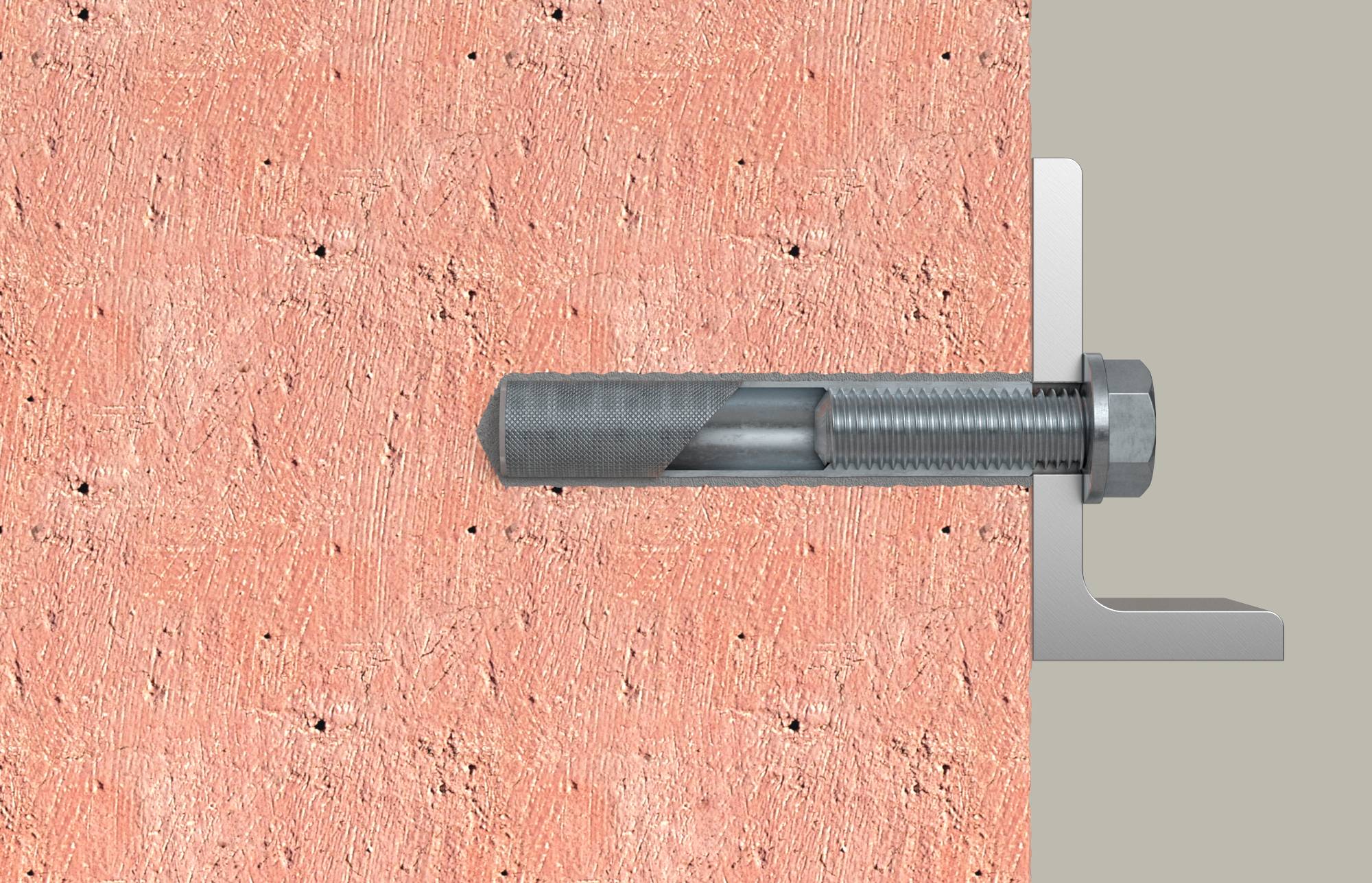

The fischer plug with internal thread FIS E made of galvanised weld galvanized steel is the system component for the use of the fischer injection mortar in masonry. The setting of the internal thread anchor is done by hand under easy rotating movements. The injection mortar the internal thread in solid stone glued Sleeve fully with the drill hole wall. Hole in the building materials is the mortar through the grid of the anchor sleeve is pressed and connects the form-fit with the hole stone. This is the load in the material. The use of the plug with internal thread anchor FIS E enables the surface flush disassembly of the attachment unit.
This text is machine translated.
This text is machine translated.
Features
- ETA-approval for maximum safety.
- Standard Metric Screws and threaded rods can be used. This reduces cost and complexity
- Surface-flush dismantling possible. Attachment point can be re-used.
