Fischer 44886 FH II 12/50 S Heavy duty anchor 130 mm 12 mm 25 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
12 mm
- Product type
Heavy duty anchor
- Material
Steel
- Length
130 mm
- Screw diameter
8 mm
- Dim
(Ø x L) 12 mm x 130 mm
- Suitable for
Concrete
Natural stone
- Content
25 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477693 Fischer 44886 FH II 12/50 S Heavy duty anchor 130 mm 12 mm 25 pc(s)
Description

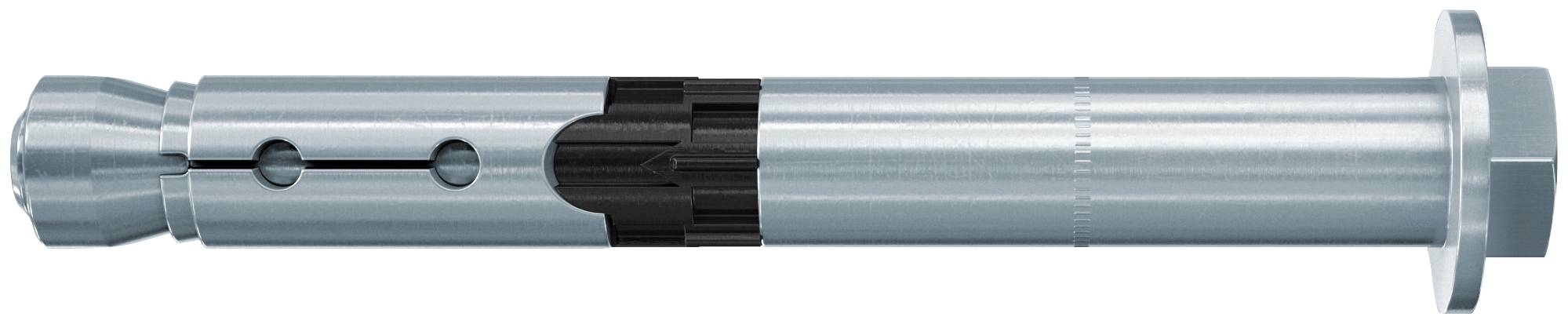

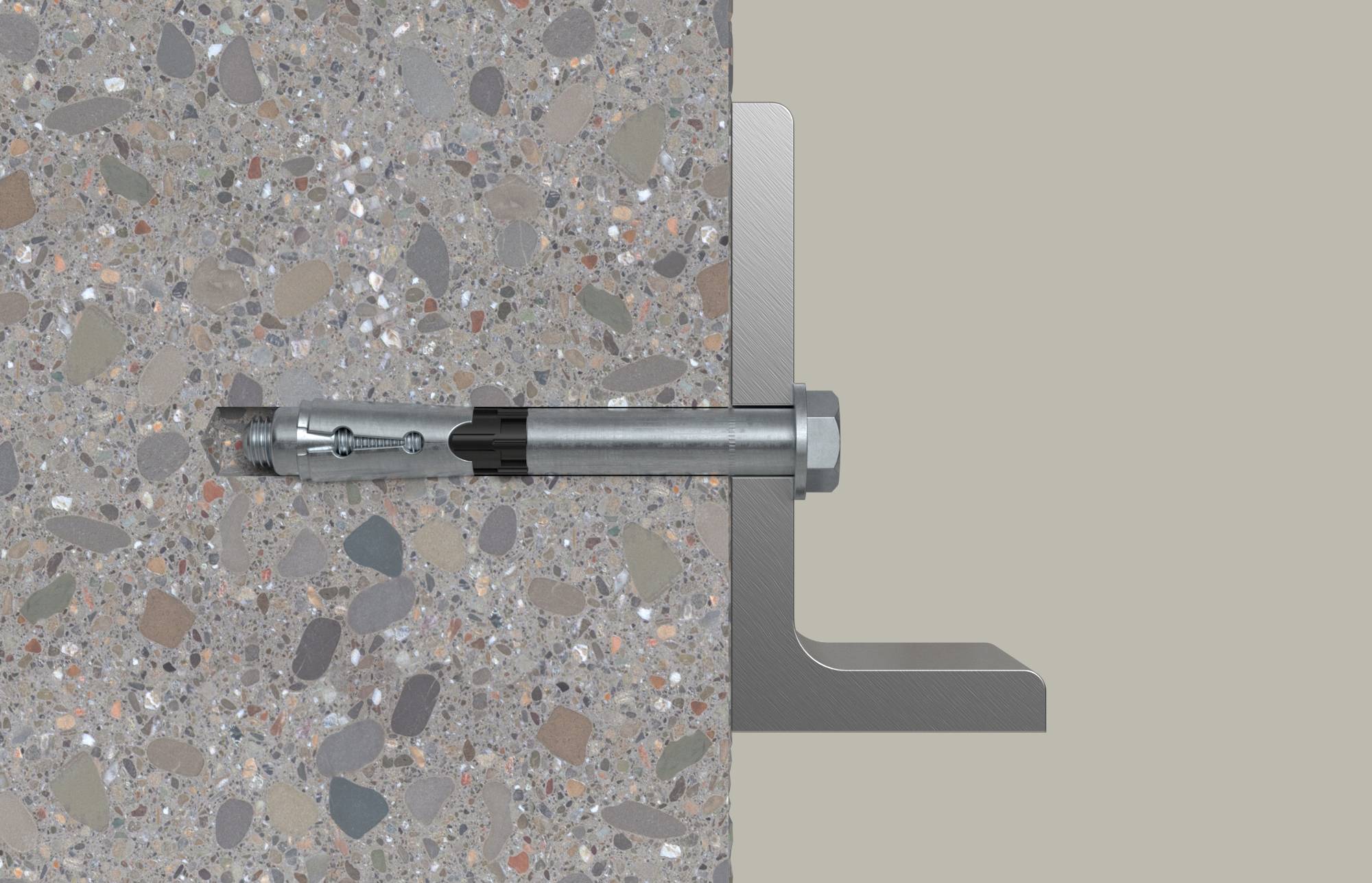

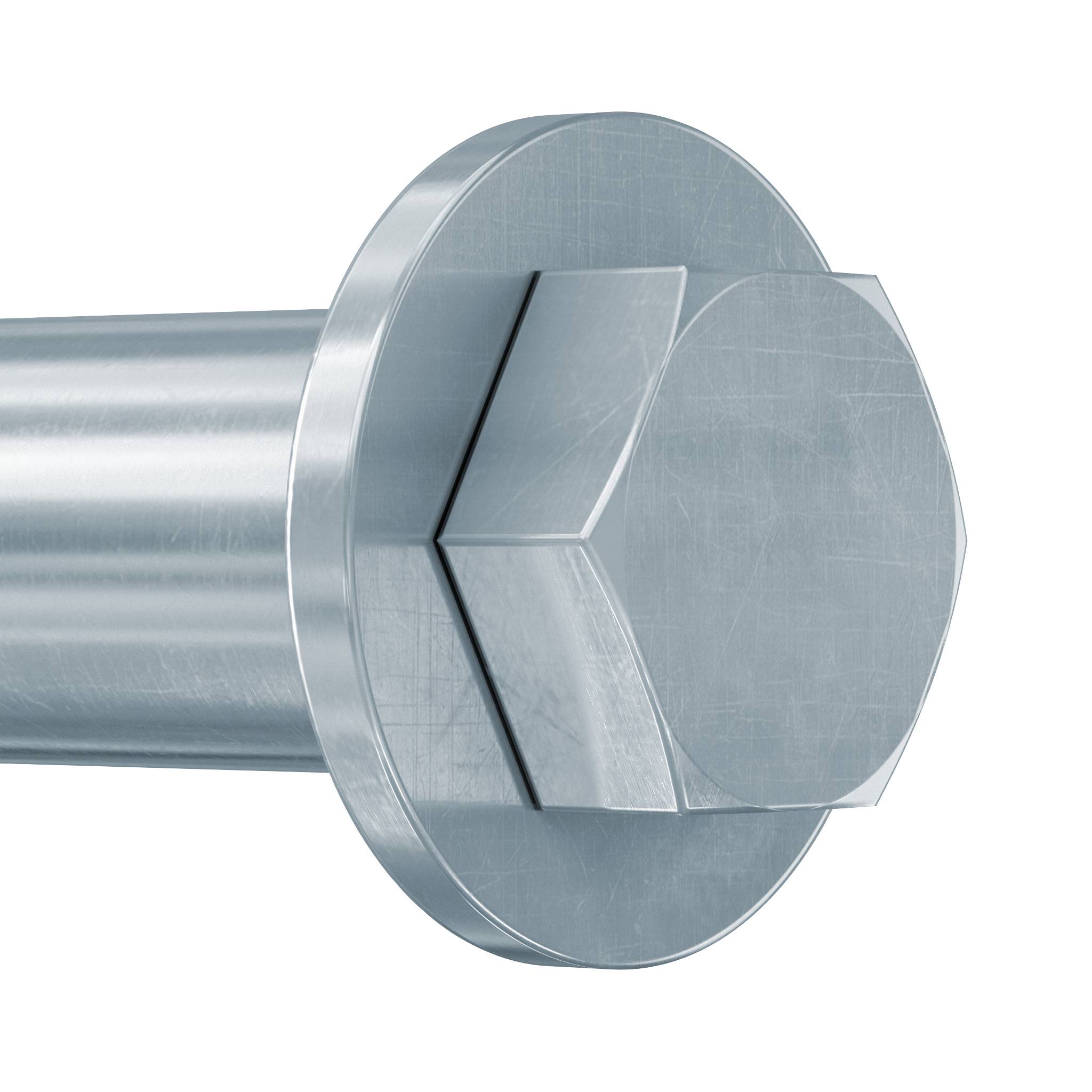

The fischer high-performance anchor FH II S with hexagonal head is a anchor plug from galvanically zinc-plated steel. The anchor is in the time-saving through-hole mounting. While tightening of the anchor, the cone in the split sleeve pulled and tightens them against the drill hole wall. The black plastic ring prevents the armature rotates, and the tightness slip to. The Add-on will be drawn to the anchoring reason. The fischer high-performance anchor FH II S with hex head is best suited to in gerissenem and ungerissenem concrete consoles, steel structures and cable trays.
This text is machine translated.
This text is machine translated.
Features
- ETA-approval for cracked concrete and seismic loads
- Energy-saving installation through optimized dowel geometry
- Less attachment points by high lateral load capacity
- Time-saving through installation.
