Buy Fischer 44900 FH II 24/50 S Heavy duty anchor 185 mm 24 mm 10 pc(s)

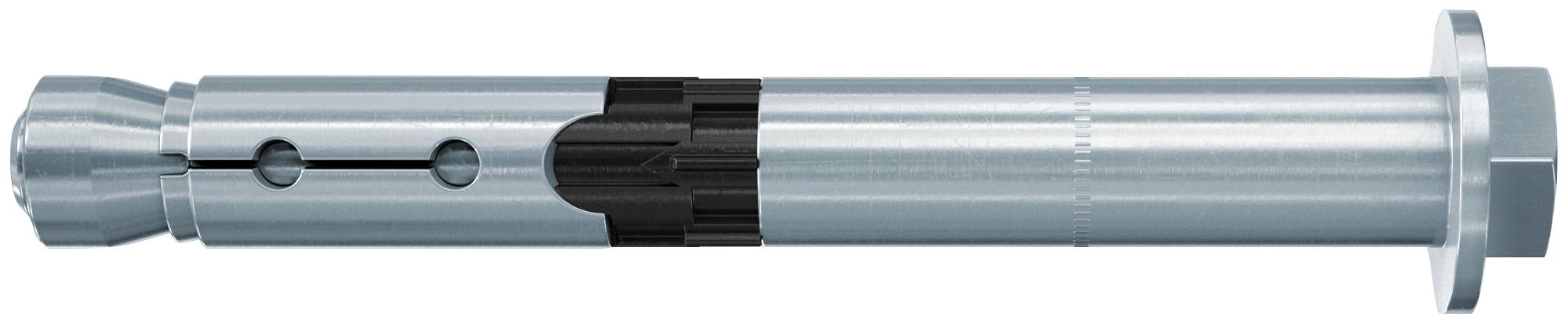

Silver metal drill chuck attachment with a hexagonal end and black grip ring, shown on a white background.

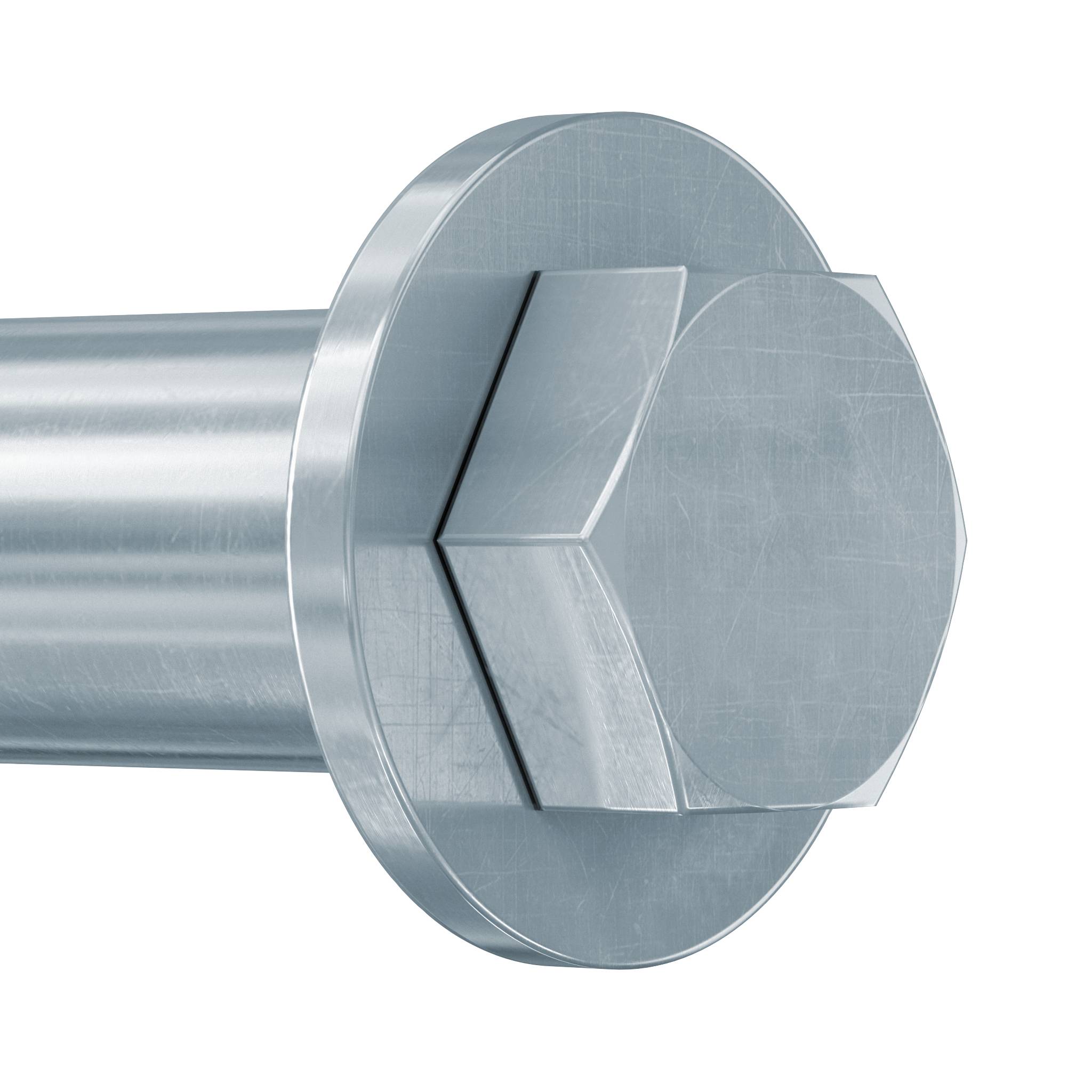

Close-up of a silver hex bolt with a large round washer, isolated on a white background.

Concrete outdoor stairs with stainless steel handrail and yellow edge markings.

Red steel beam bolted to a concrete wall with visible mounting plate and fasteners.

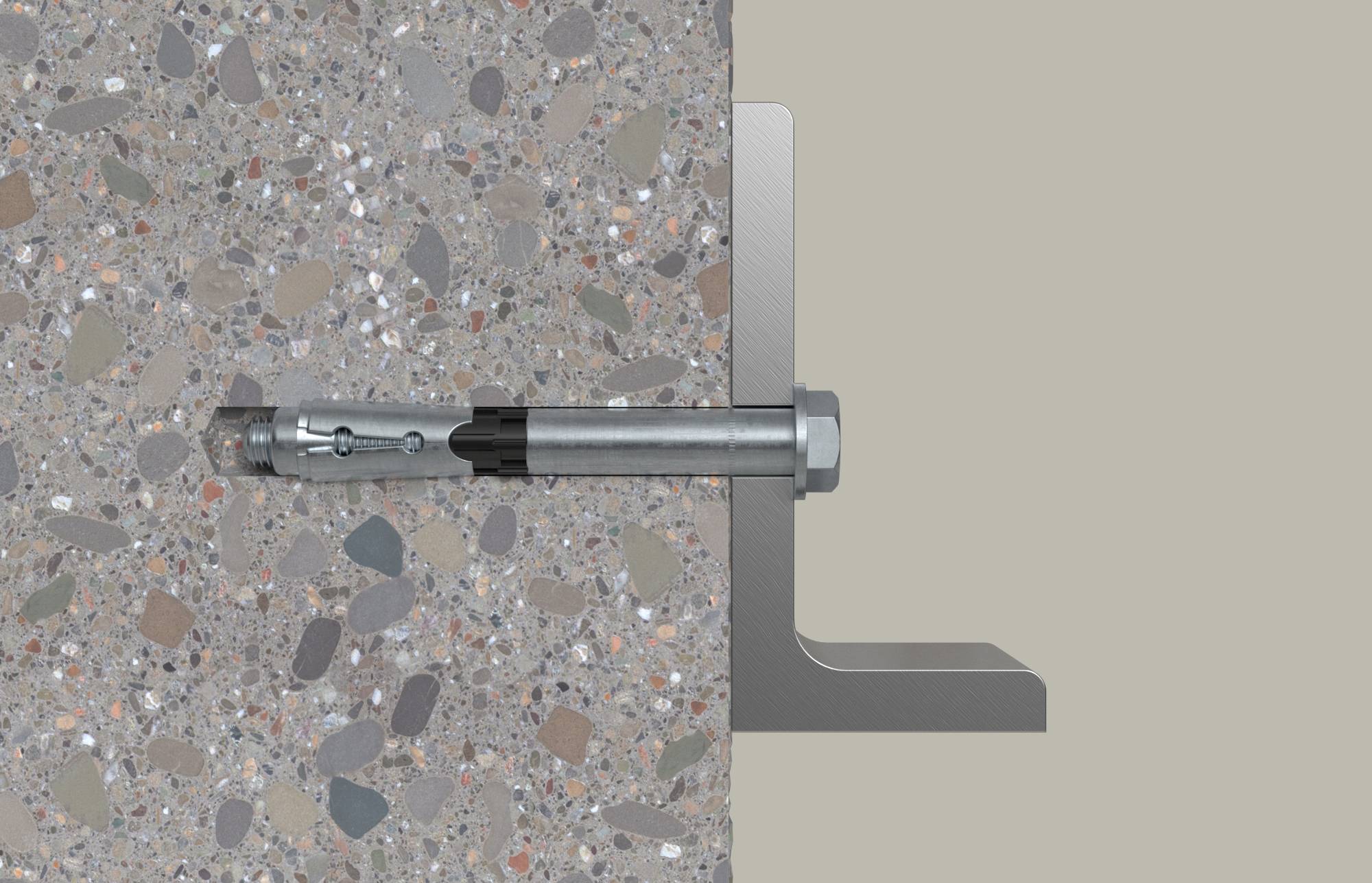

Cross-section of a wall anchor bolt drilled into concrete, with a metal bracket fixed to the surface by a hex bolt.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

High-performance anchor

Technical specifications

(Ø): 24 mm

Product type: Heavy duty anchor

Material: Steel

Length: 185 mm

Screw diameter: 16 mm

Dim: (Ø x L) 24 mm x 185 mm

Suitable for: Concrete
Natural stone

Content: 10 pc(s)

Material properties: zinc galvanized

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 477700 Fischer 44900 FH II 24/50 S Heavy duty anchor 185 mm 24 mm 10 pc(s)

Description

The fischer high-performance anchor FH II S with hexagonal head is a anchor plug from galvanically zinc-plated steel. The anchor is in the time-saving through-hole mounting. While tightening of the anchor, the cone in the split sleeve pulled and tightens them against the drill hole wall. The black plastic ring prevents the armature rotates, and the tightness slip to. The Add-on will be drawn to the anchoring reason. The fischer high-performance anchor FH II S with hex head is best suited to in gerissenem and ungerissenem concrete consoles, steel structures and cable trays.

This text is machine translated.
