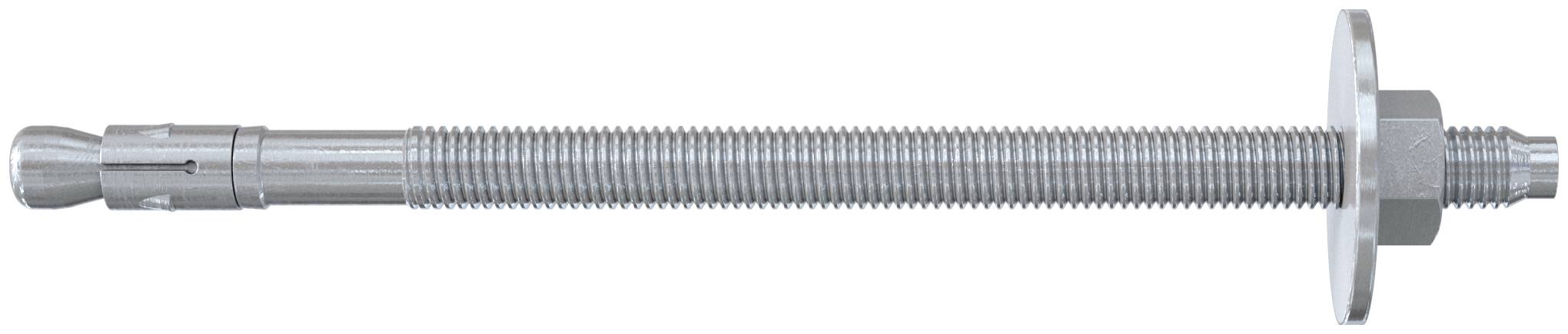

Fischer 45588 FBN II 16/100 GS Cavity fixing 220 mm 56 mm 10 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
56 mm
- Product type
Cavity fixing
- Material
Steel
- Length
220 mm
- Screw diameter
16 mm
- Dim
(Ø x L) 56 mm x 220 mm
- Suitable for
Concrete
Natural stone
- Content
10 pc(s)
- Features
incl. washer
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477799 Fischer 45588 FBN II 16/100 GS Cavity fixing 220 mm 56 mm 10 pc(s)
Description

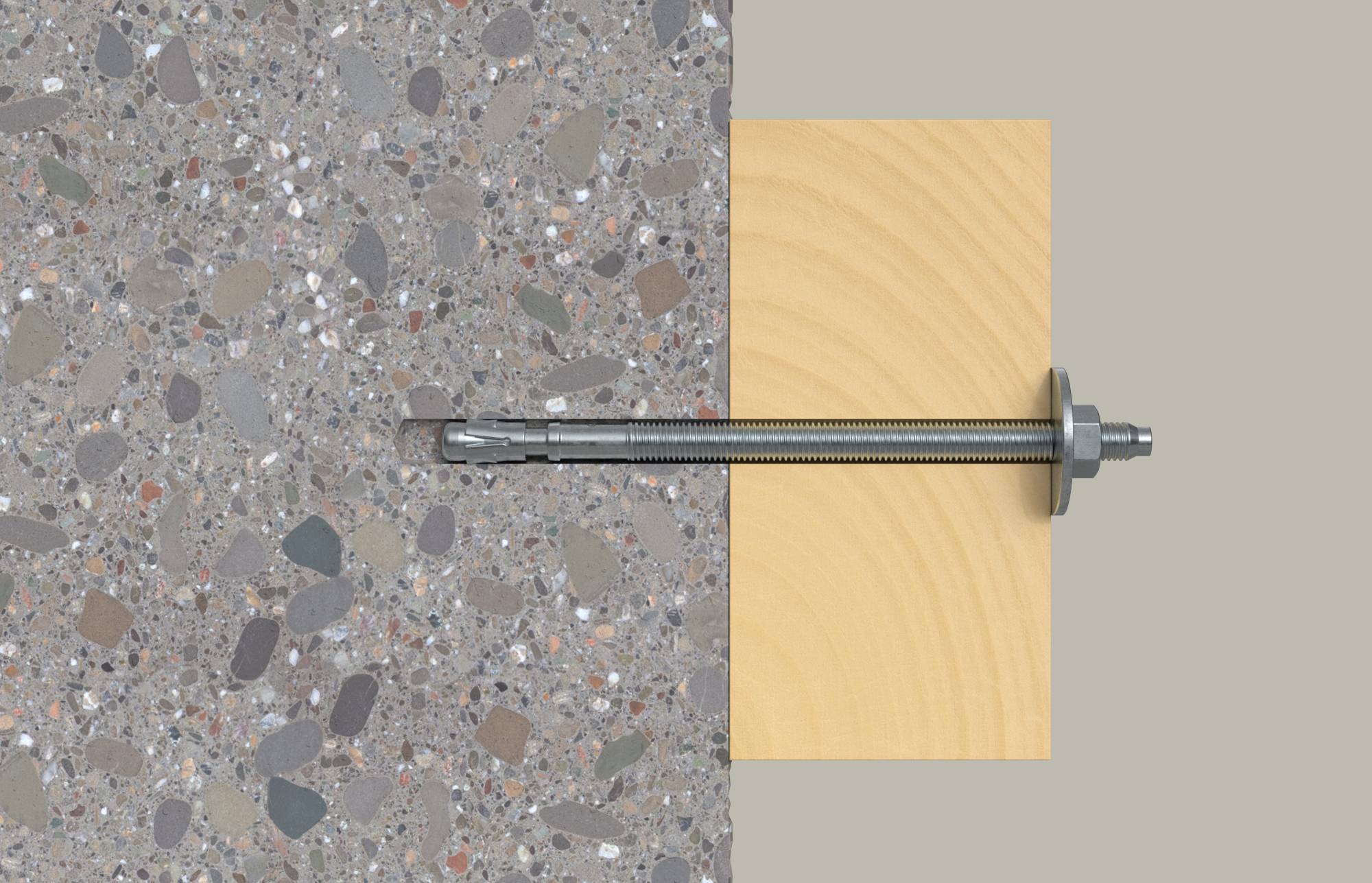

The fishermen anchor bolt FBN II with a large washer is a steel anchor for economic attachments in ungerissenem concrete. Thanks to the long thread, and the two anchor bolt FBN II deep is the fishermen anchor especially flexible. In addition to the pre-plug-and-hole mounting is the Cavity fixing for the distance between mounting. With the pre-installed large washer is the steel anchors from electro-galvanised for mounting the support beams and thresholds, as well as other wooden structures to be recommended.
This text is machine translated.
This text is machine translated.
Features

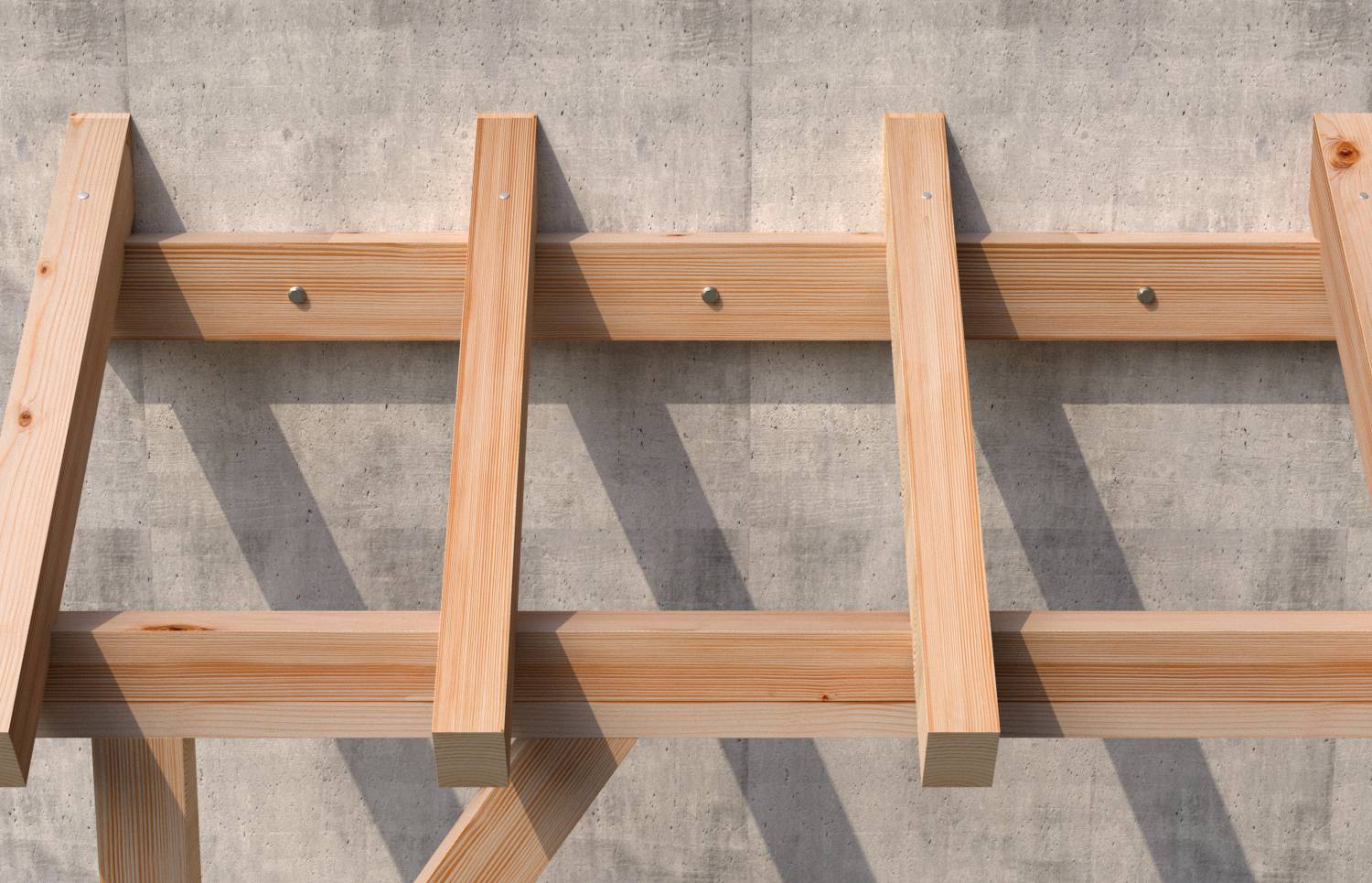

- Large Washer increases the bearing surface. Ideal for the attachment of wooden structures
- With the long threads are balanced component tolerances. In addition, the FBN II for distance montages. This increases the flexibility
- With the standard anchoring depth reaches the FBN II highest load capacity. This means: less fixing points and smaller anchor plates
- Pre-assembled washer saves time during installation
- Is the reduced anchoring depth used, reduces the hole depth and simplifies the installation.
