Fischer 46022 FNA II 6 x 30 M6/10 Nail plug 55 mm 10 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
10 mm
- Product type
Nail plug
- Material
Steel
- Length
55 mm
- Screw diameter
6 mm
- Dim
(Ø x L) 10 mm x 55 mm
- Suitable for
Concrete
Flintlime bricks
Natural stone
Prestressed concrete hollow boards
- Content
100 pc(s)
- Features
incl. flange nut
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477815 Fischer 46022 FNA II 6 x 30 M6/10 Nail plug 55 mm 10 mm 100 pc(s)
Description

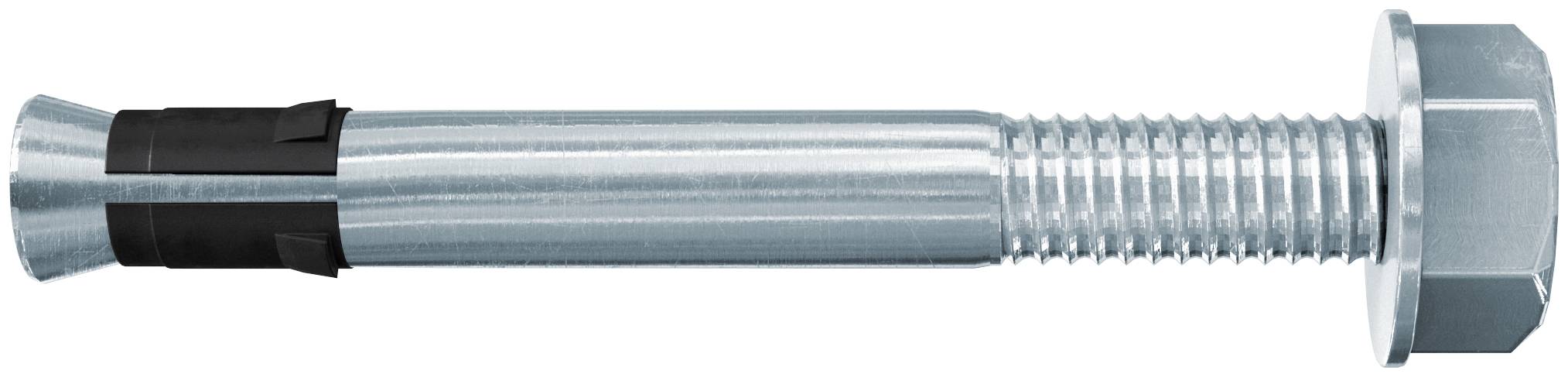

The fischer nail plug FNA II 6 with thread and flange nut is made from electro-galvanised. The FNA II is with a few hammer blows to save time through-hole or the pre-on mounting. When load is spread to the FNA II independently after. At the same time, the cone in the Split clip pulled and tightens it against the drill hole. The fischer nail plug FNA II with thread and flange nut is especially for the fastening of cables and pipes, suitable for indoor use.
This text is machine translated.
This text is machine translated.
Features
- ETA-approval for multiple fixtures
- No reinforcement hit by small anchoring depth. This saves time and costs in the series mounting
- Shock mounting saves time
- Split clip provides for a secure hold.
