Fischer 46270 SXR Plug (long) 230 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

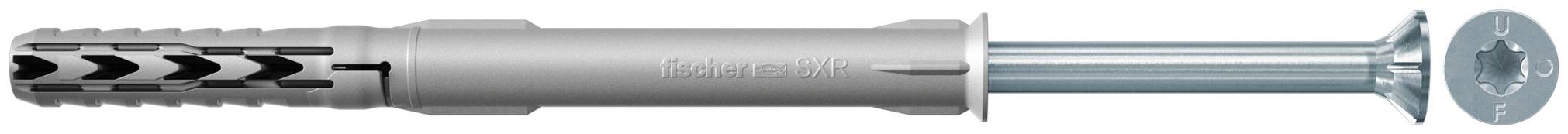

Fischer SXR 10 x 230 T countersunk screw long shaft plugs

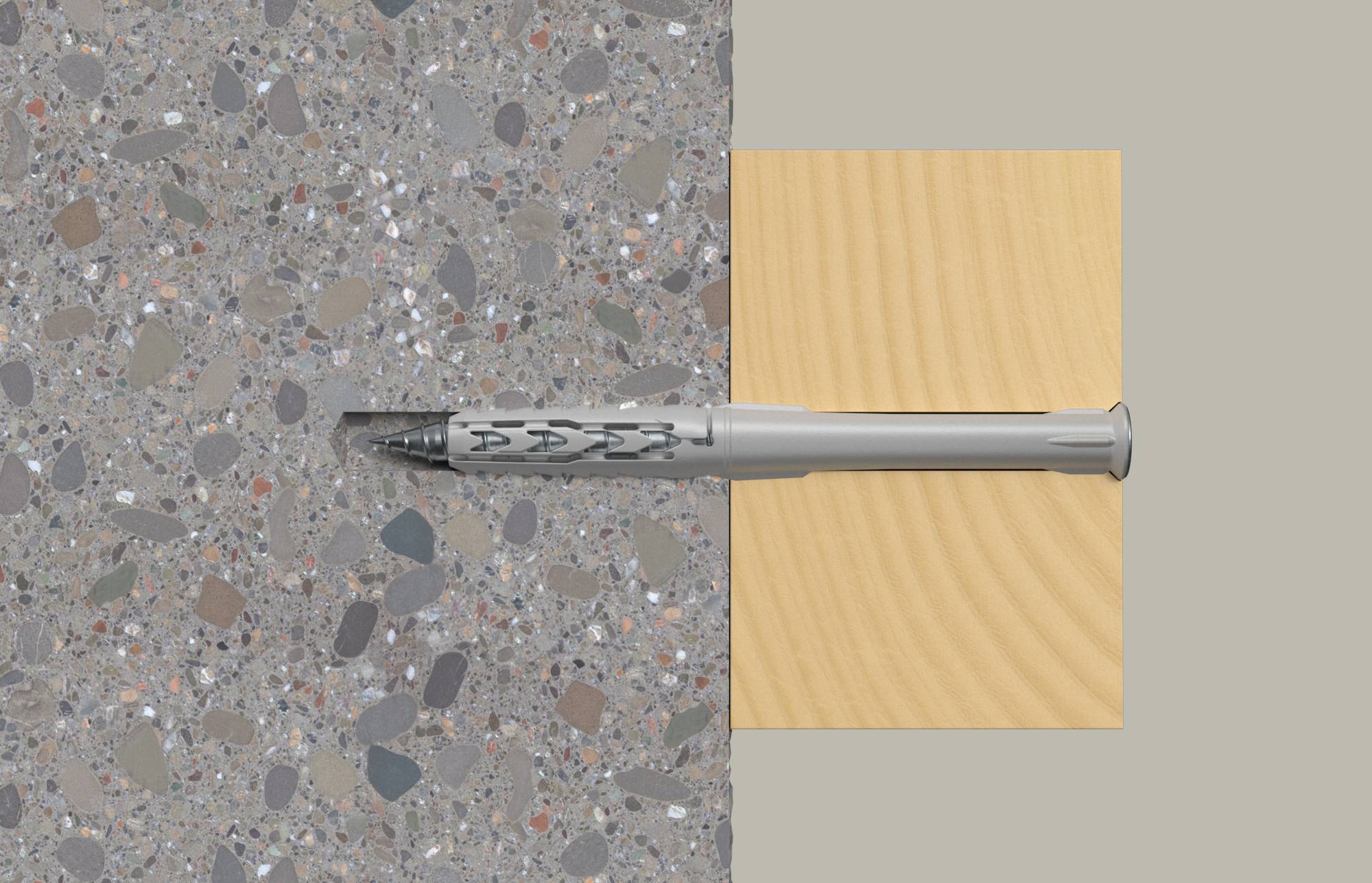

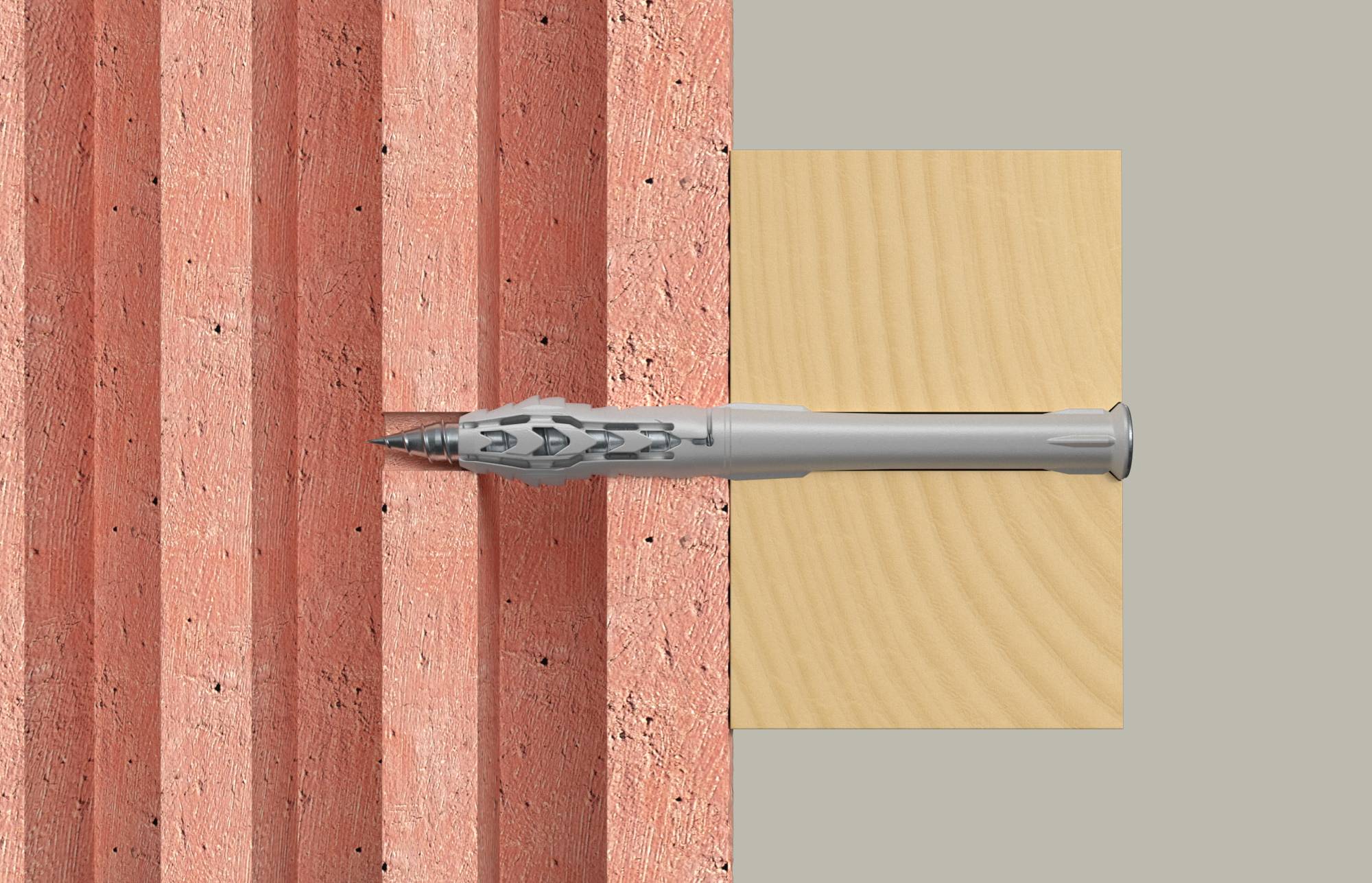

- Low anchoring depth saves time and costsETA evaluation in concrete and masonryWith pre-mounted safety screw with countersunk headDowel spread out in solid building materialsThe dowel anchored in the hollow space in perforated building materials
Technical specifications
- Drive: TX40 10 mm drill nominal diameterDowel length 230 mmDistance mounting: No. Through-hole mounting: YesColour: greyDrive: Inner star TX Usable length 180 mmScrew geometry: Countersunk head Max. Thickness of attachment 180 mmMin Drill depth 240 mmMin Hole depth during through-hole installation 240 mmMin Anchoring depth 50 mmUsable length with anchoring depth 50 mm: 180 mmScrew dimensions 7.0 x 237 mm
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Steel
- Length
230 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 10 mm x 230 mm
- Suitable for
Concrete
Cored bricks
Flintlime hollow bricks
Flintlime bricks
Natural stone
Foamed concrete wall
Solid brick
Thermal insulation blocks
- Content
50 pc(s)
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2699440 Fischer 46270 SXR Plug (long) 230 mm 10 mm 50 pc(s)
Description
The Fischer SXR-T long shaft bolt is a high-quality nylon plug with pre-mounted Fischer safety screw with countersunk head. Thanks to the special dowel geometry the SXR can be used in solid building materials and perforated building materials. Due to the low anchorage depth of only 50 mm, the long shaft bolt can be processed particularly economically, especially in case of multiple fixings of non-load systems. The Fischer SXR-T long shaft anchor bolt with the countersunk screw is particularly recommended for fixing wooden structures.
