Fischer 46339 SXR Plug (long) 60 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

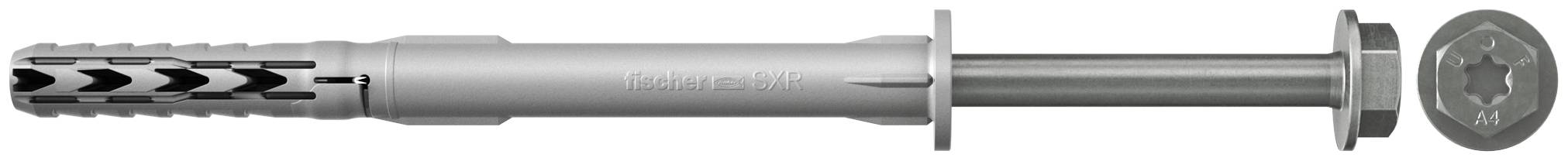

Fischer SXR 10 X 60 FUS hex screw with U disc of stainless steel R

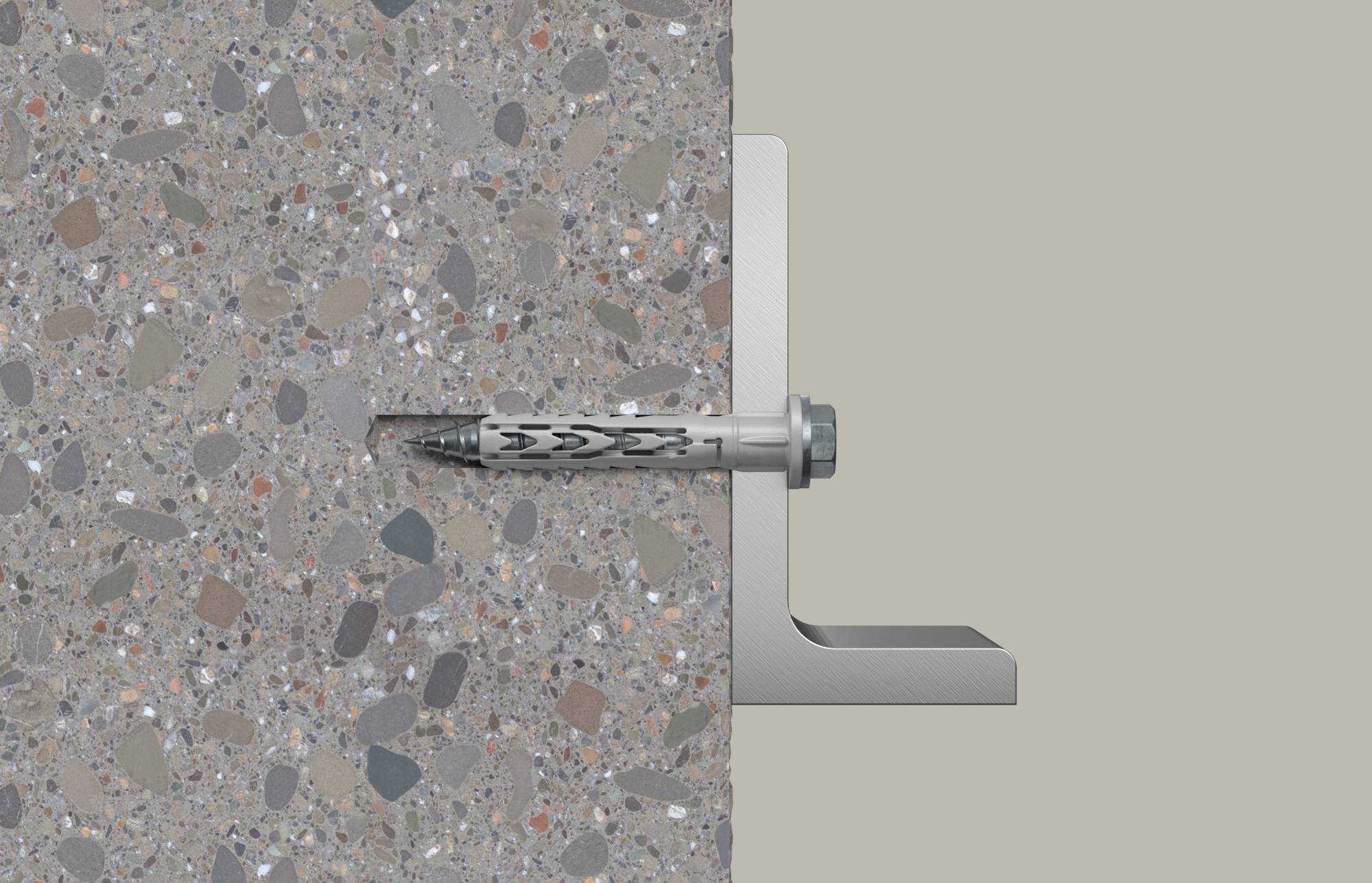

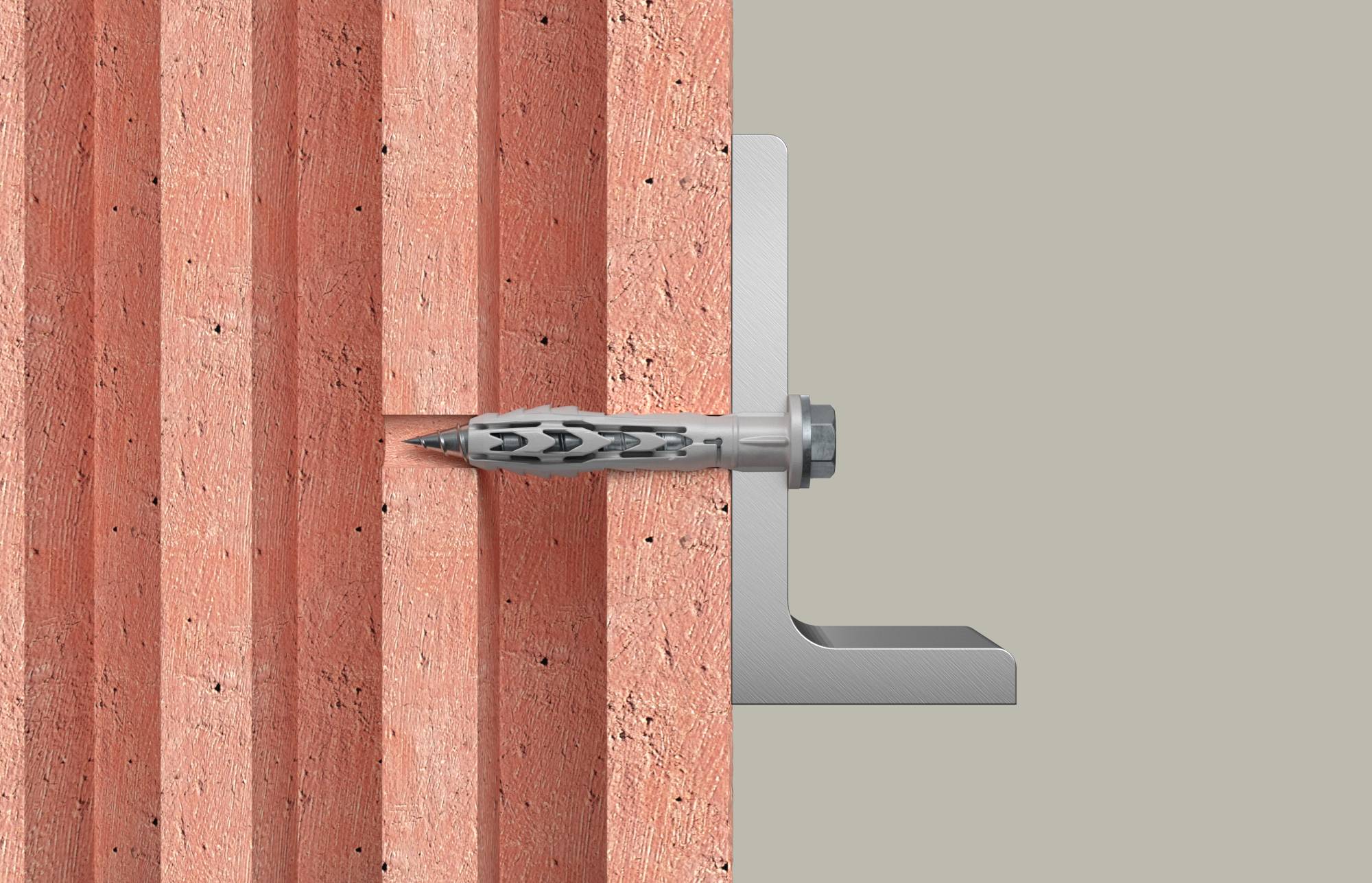

- With pre-assembled safety screw with hex head and molded washerLow anchoring depth saves time and costsETA evaluation in concrete and masonryDowel spread out in solid building materialsThe dowel anchored in the hollow space in perforated building materials
Technical specifications
- Drive: TX40/SW 13 10 mm drill nominal diameterDowel length 60 mmDistance mounting: No. Through-hole mounting: Yes Colour: grey Drive: Inner star TX / hexagon Usable length 10 mmSurface bolt: Stainless steel A4 Screw geometry: Hex with pressed washer Max. Thickness of attachment 10 mmMin Drill depth 70 mmMin Hole depth during through-hole installation 70 mmMin Anchoring depth 50 mmUsable length with anchoring depth 50 mm: 10 mmScrew dimensions 7.0 x 69 mm
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Steel
- Length
60 mm
- Dim
(Ø x L) 10 mm x 60 mm
- Suitable for
Concrete
Cored bricks
Flintlime hollow bricks
Flintlime bricks
Natural stone
Foamed concrete wall
Solid brick
- Content
50 pc(s)
- Material properties
rust-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2699441 Fischer 46339 SXR Plug (long) 60 mm 10 mm 50 pc(s)
Description

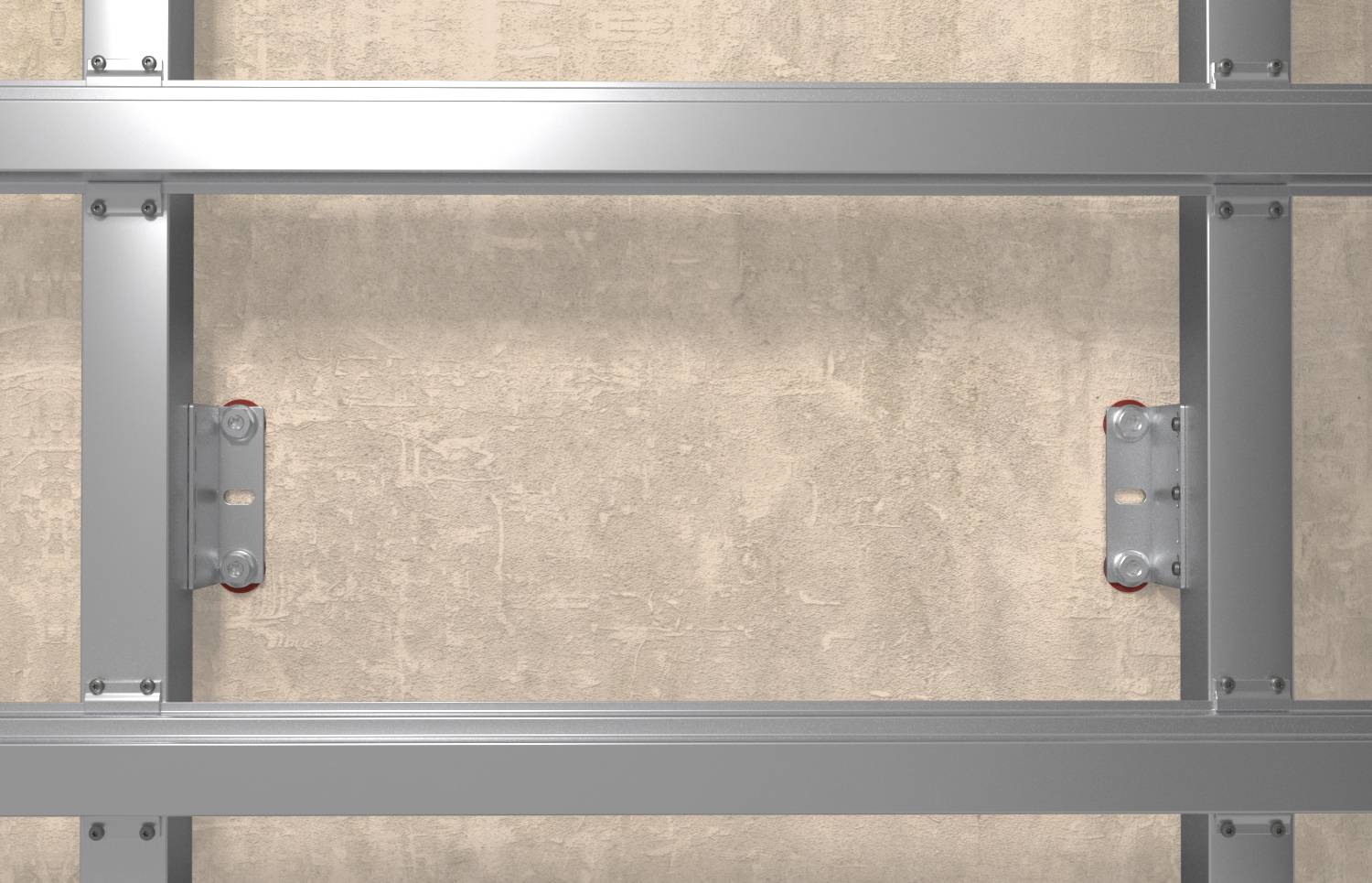

The Fischer SXR-FUS A4 long-shaft plug is a plug made of high-quality nylon with pre-mounted Fischer hexagon screw and molded washer. Thanks to the special dowel geometry the SXR can be used in solid building materials and perforated building materials. Due to the low anchorage depth of only 50 mm, the long shaft bolt can be processed particularly economically, especially in case of multiple fixings of non-load systems. The Fischer SXR-FUS A4 long shaft anchor bolt with the hexagon screw and molded washer is particularly recommended for securing metal constructions.
