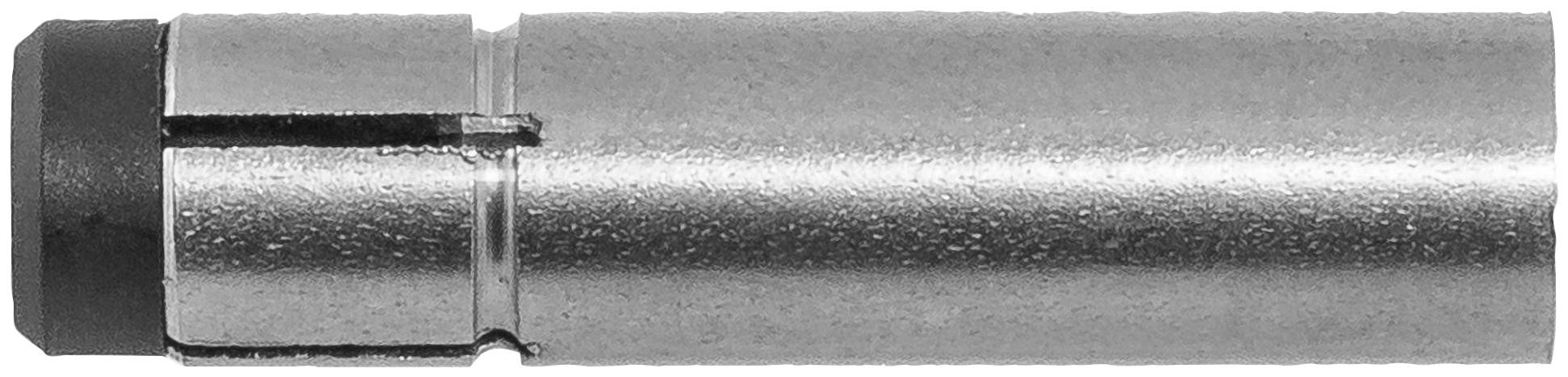

Fischer 47305 FZEA II 14 x 40 M12 Steel plug 43 mm 14 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
14 mm
- Product type
Steel plug
- Material
Steel
- Length
43 mm
- Screw diameter
12 mm
- Dim
(Ø x L) 14 mm x 43 mm
- Suitable for
Concrete
Natural stone
- Content
50 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477905 Fischer 47305 FZEA II 14 x 40 M12 Steel plug 43 mm 14 mm 50 pc(s)
Description
The fischer ZYKON-Steele plug FZEA II is an internal thread from galvanically zinc-plated steel. With the special drill FZUB is in one operation the hinterschnittene drill hole is created. The undercut anchor in the time-saving through-hole mounting. With the setting tool FZED Plus is the split sleeve with the breaking of the inner spread pen via the cone transmissions. This fills out the hinterschnittene drill hole is positively. The fischer ZYKON-Steele plug FZEA II is for single fasteners of pipes, suspended ceilings and sprinkler systems in the interior in gerissenem concrete.
This text is machine translated.
This text is machine translated.
Features
- ETA-approval for cracked concrete and fire resistance class R 120
- Undercut boring without tool change. This saves time and money
- High flexibility through the use of commercially available metric screws and threaded rods
- Maximum safety through positive connection
- Quick Shock mounting.
