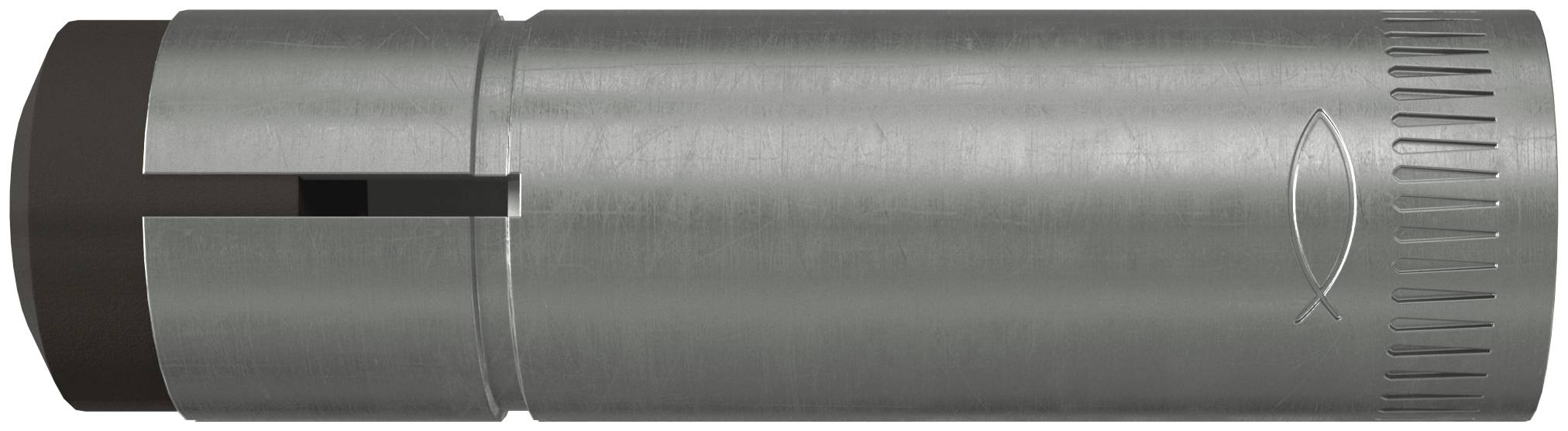

Fischer 47307 FZEA II 12 x 40 M10 A4 Steel plug 43 mm 12 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
12 mm
- Product type
Steel plug
- Material
Steel
- Length
43 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 12 mm x 43 mm
- Suitable for
Concrete
Natural stone
- Content
100 pc(s)
- Material properties
rust-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477908 Fischer 47307 FZEA II 12 x 40 M10 A4 Steel plug 43 mm 12 mm 100 pc(s)
Description
The fischer ZYKON-Steele plug FZEA II is an internal thread made from stainless steel. With the special drill FZUB is in one operation the hinterschnittene drill hole is created. The undercut anchor in the time-saving through-hole mounting. With the setting tool FZED Plus is the split sleeve with the breaking of the inner spread pen via the cone transmissions. This fills out the hinterschnittene drill hole is positively. The fischer ZYKON-Steele plug FZEA II is for single fasteners of pipe lines, cable trays and ventilation system in outdoor area in gerissenem concrete.
This text is machine translated.
This text is machine translated.
Features
- Made of stainless steel for attachments in the outdoor area
- ETA-approval for cracked concrete and fire resistance class R 120
- High flexibility through the use of commercially available metric screws and threaded rods
- Maximum safety through positive connection
- Quick Shock mounting.
