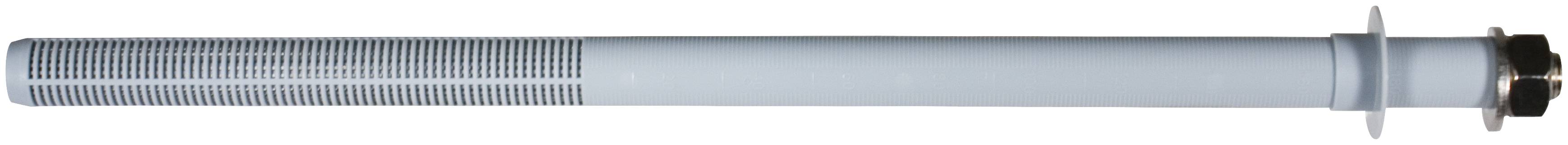

Fischer 47452 FIS Set 18 x 130/200 M12/200 A4 Anchor plug 330 mm 18 mm 5 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
18 mm
- Product type
Anchor plug
- Length
330 mm
- Screw diameter
12 mm
- Dim
(Ø x H) 18 mm x 330 mm
- Suitable for
Cored bricks
Structural lightweight concrete
Concrete
Flintlime hollow bricks
Flintlime bricks
Solid brick
Hollow pumice slabs
Hollow ceiling panels
Pumice
- Content
5 pc(s)
- Outside Ø
18 mm
- Material properties
A4
- Height
330 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477917 Fischer 47452 FIS Set 18 x 130/200 M12/200 A4 Anchor plug 330 mm 18 mm 5 pc(s)
Description

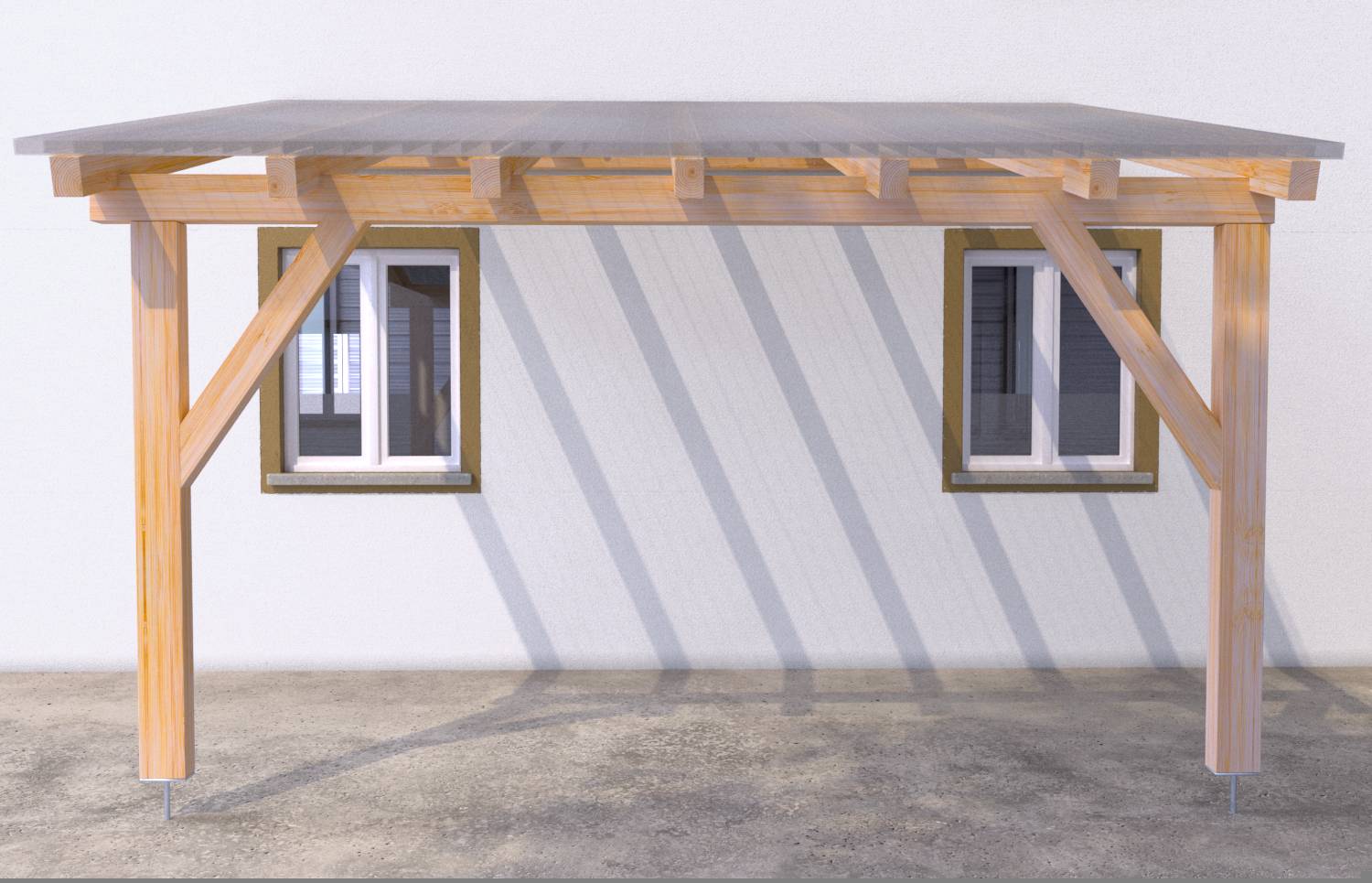

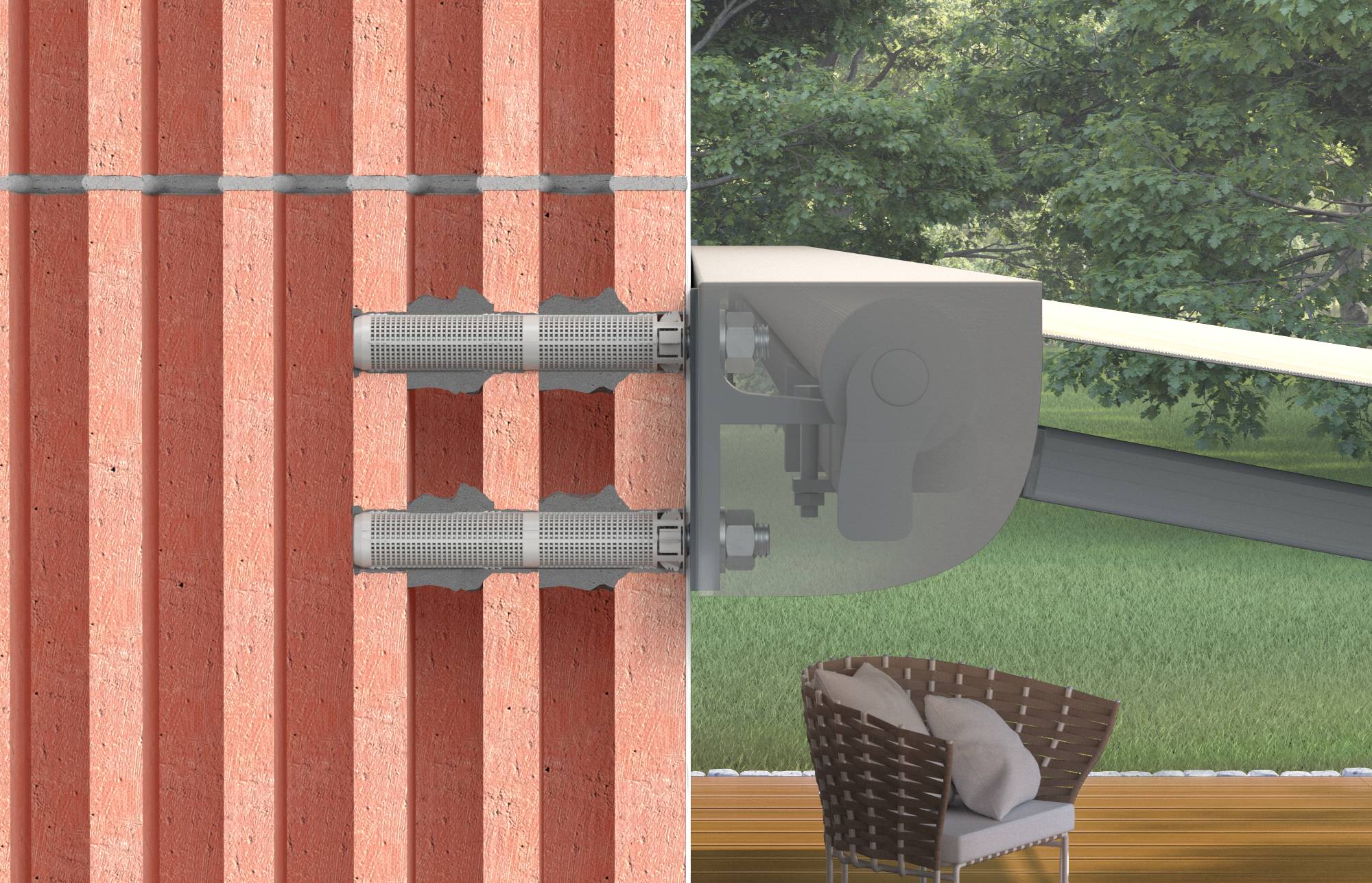

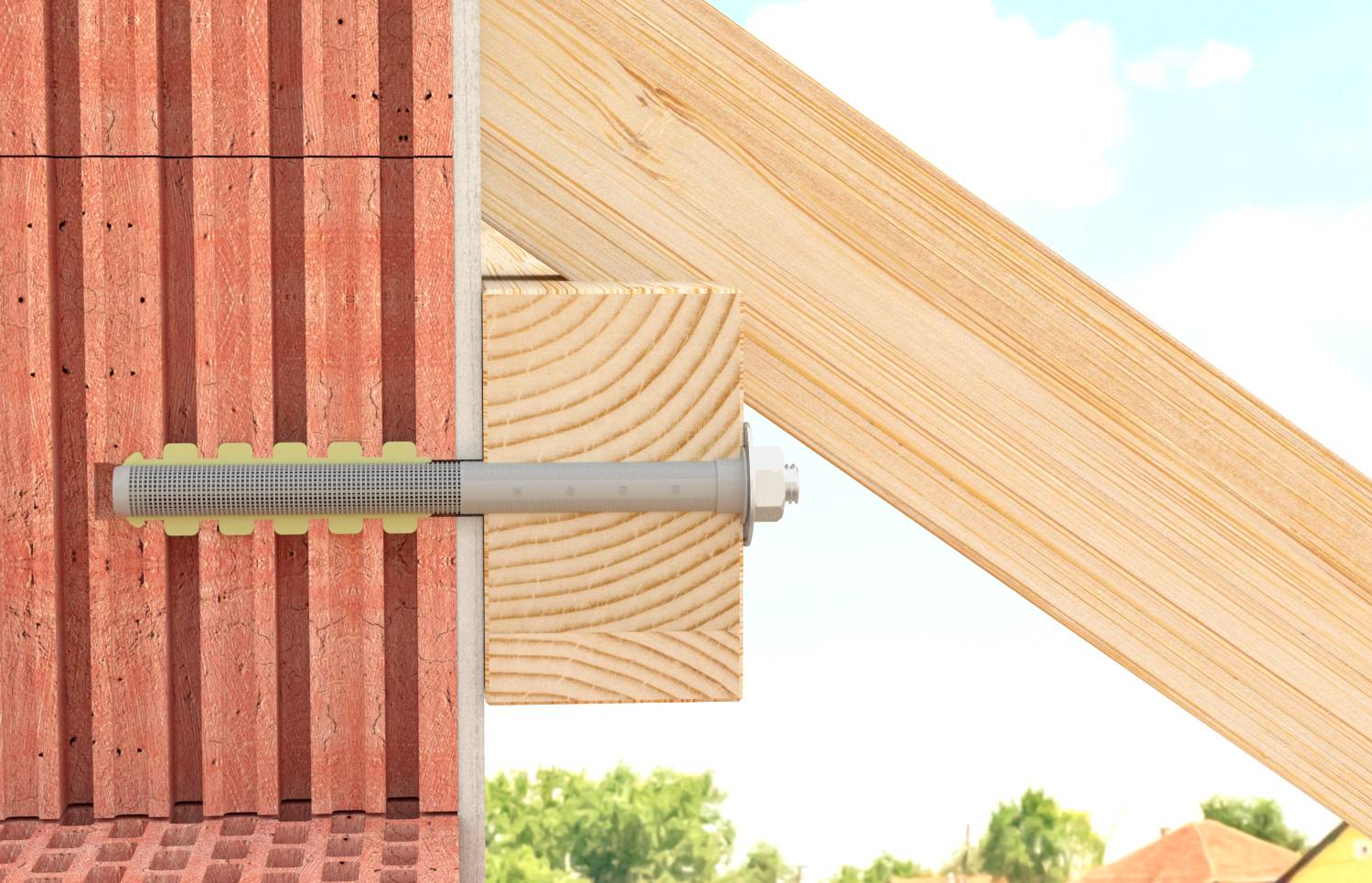

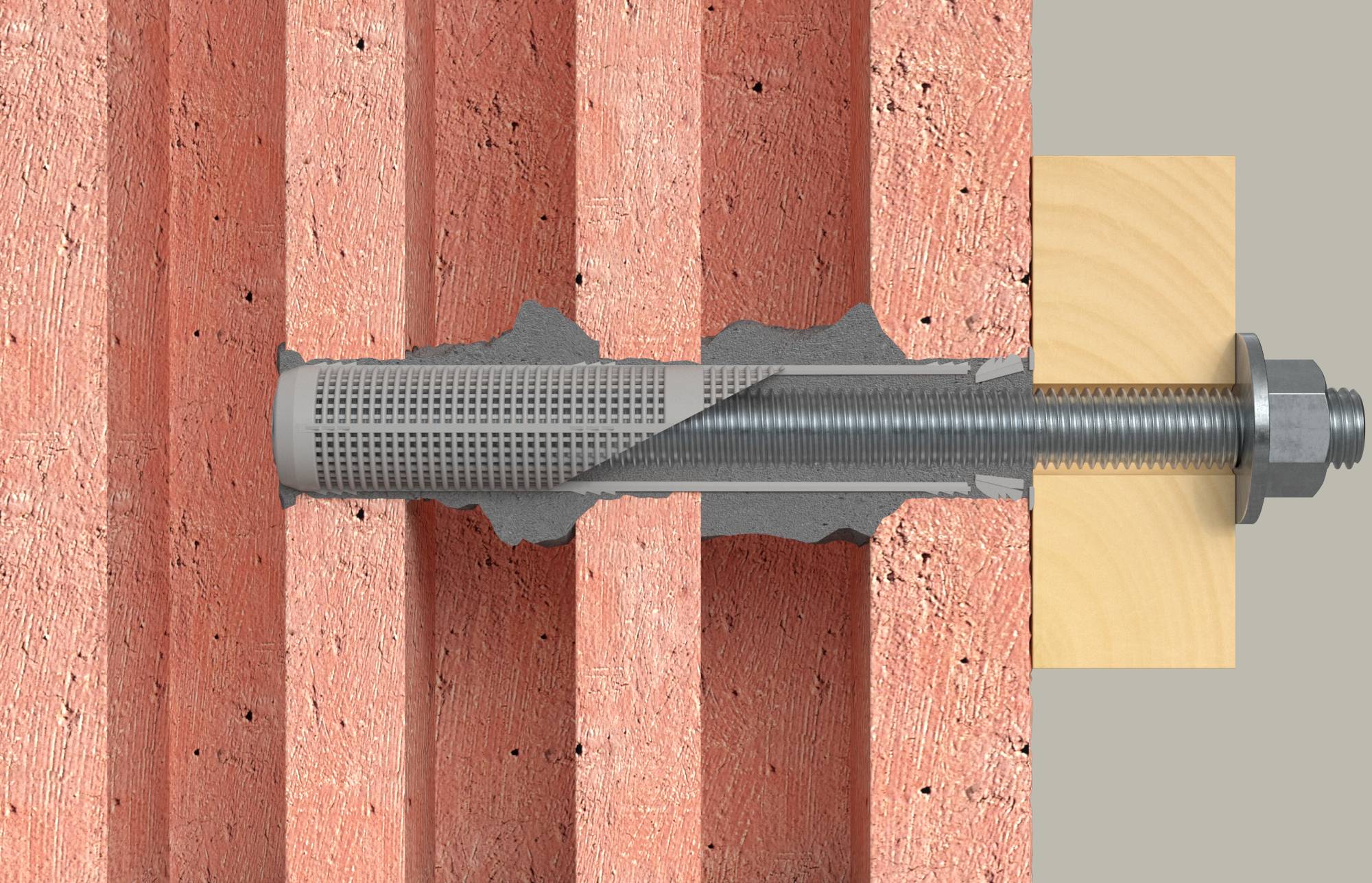

The Fishing injection th anchor sleeve FIS set 18 x 130/200 M 12/200 A4 is the system component for the use of the fischer injection mortar hole in the stone wall in the through-hole mounting. The anchor is with the scaling and the slider edge on the thickness of the mounting part is adjusted and cut off. The injection mortar is the basis of the anchor sleeve filled in. When setting the anchor rod is the mortar through the lattice structure and connects with the hole in the form-stone. This is the load in the material. With the injection th anchor sleeve can also non-load-bearing layers to be bridged. The TH anchor sleeve FIS H K is for mounting the wooden structures, carport or awnings.
This text is machine translated.
This text is machine translated.
Features
- Anchor sleeve can be cut to the required working length. This saves time and reduces complexity in selection
- Through-hole mounting reduces time and costs for multiple mounting points
- ETA-Approval
- Easy adjustment of the anchor sleeve on usable length with scaling and a displacable edge. This saves time.
