Fischer 48409 EA II M 20 x 80 Steel plug 80 mm 25 mm 10 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
25 mm
- Product type
Steel plug
- Material
Steel
- Length
80 mm
- Screw diameter
20 mm
- Dim
(Ø x L) 25 mm x 80 mm
- Suitable for
Concrete
Natural stone
- Content
10 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477987 Fischer 48409 EA II M 20 x 80 Steel plug 80 mm 25 mm 10 pc(s)
Description

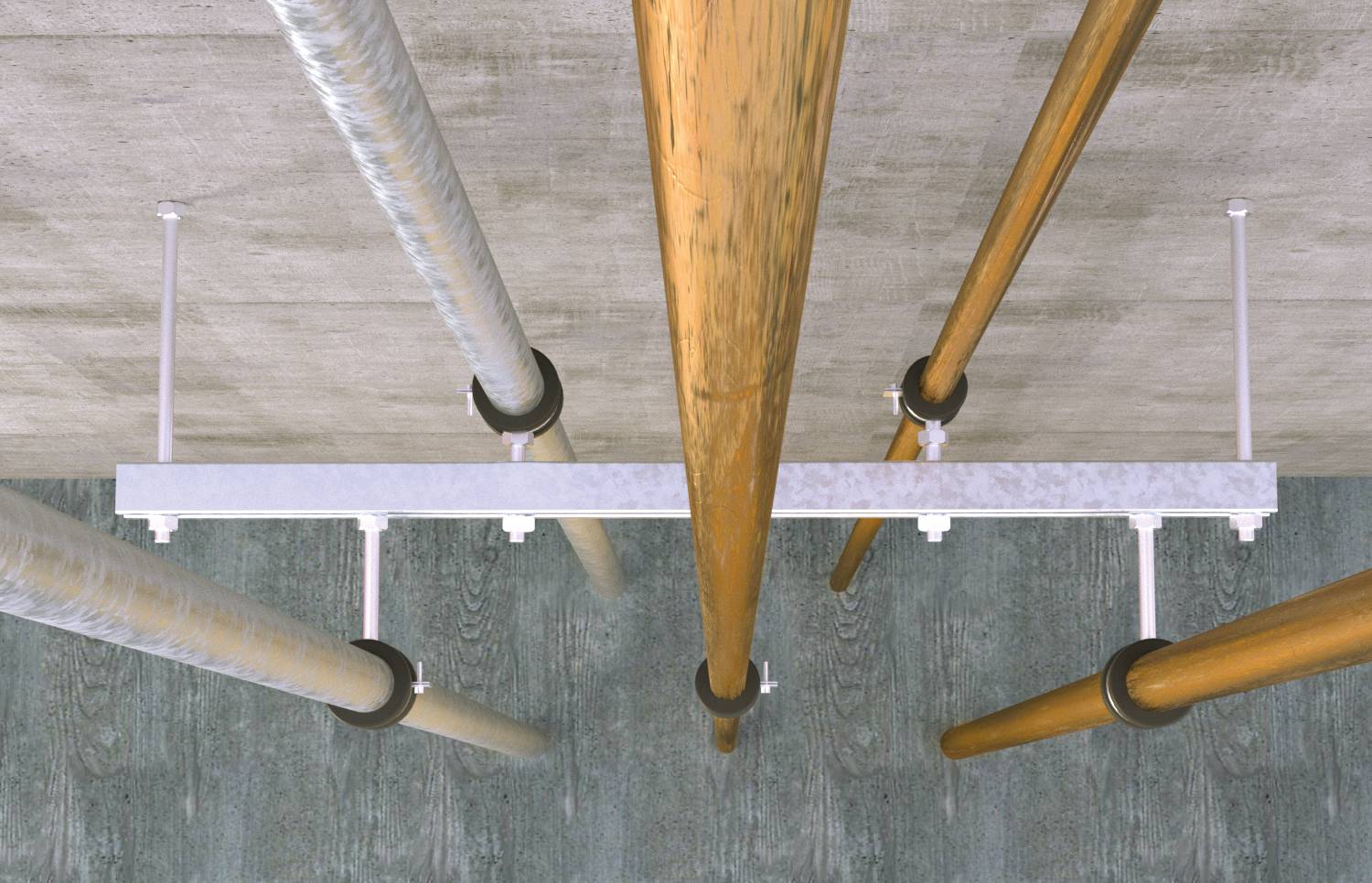

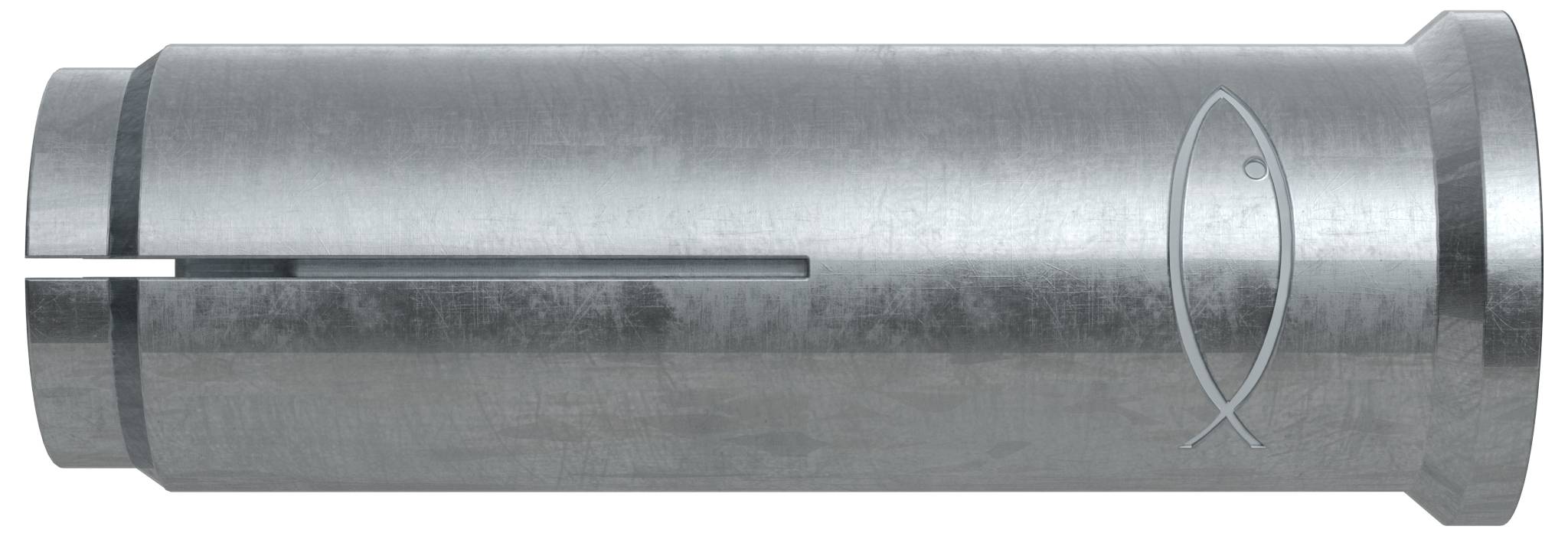

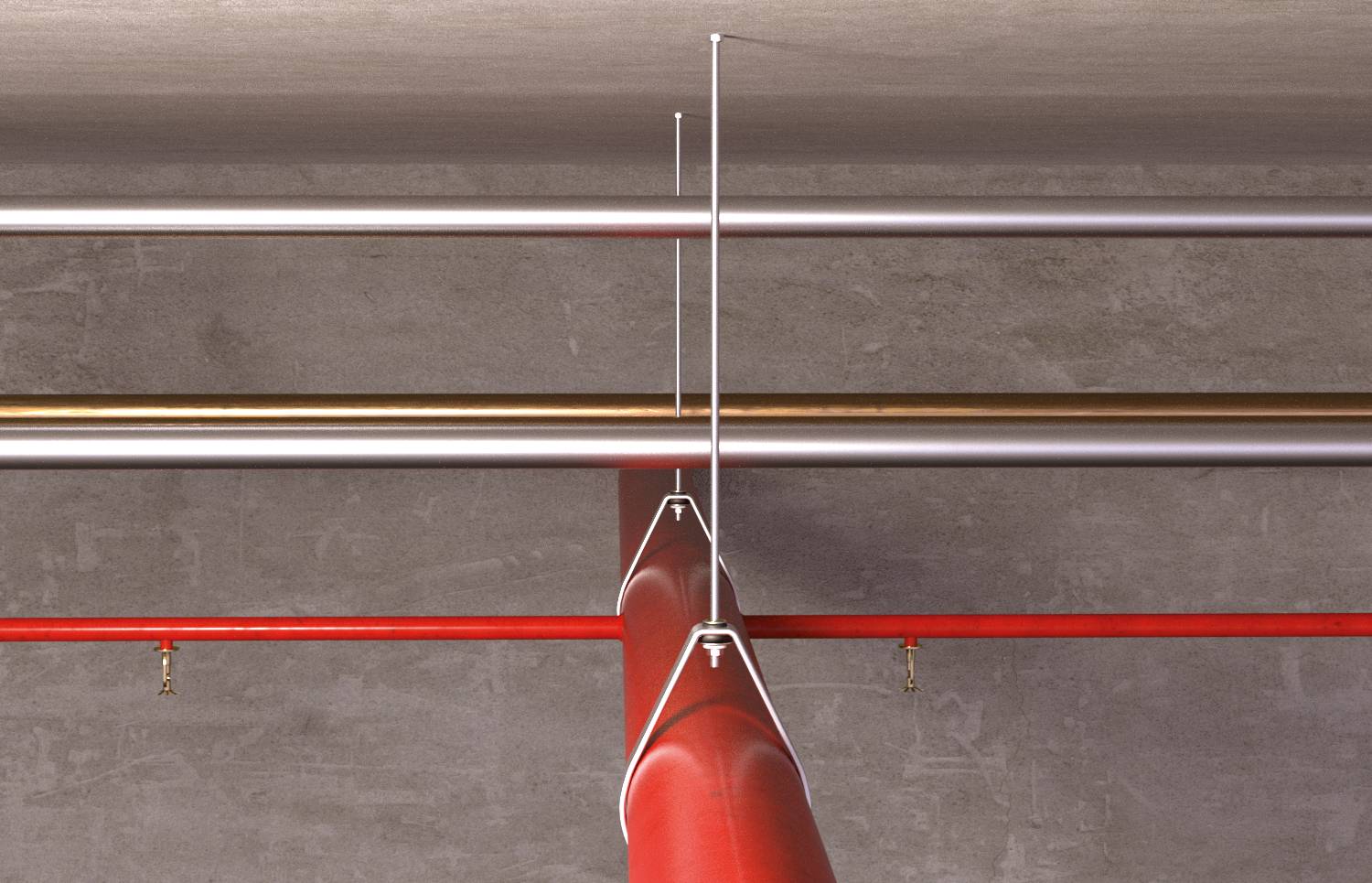

The fischer impact anchor EA II is an internal thread from galvanically zinc-plated steel. The Steele plug is flush with the surface with a hammer. anchoring base. With the impact tool EAW H plus or the machine setting device EA II S-SDS is the sleeve with the driving of inner pin in the wings and tightens against the drill hole wall. For a correct straddle irritation, there is no torque on the screw or the threaded rod has to be applied. The fischer impact anchor EA II is ideal for sprinkler systems, grilles and consoles in the inner area with approval.
This text is machine translated.
This text is machine translated.
Features
- Simple shock mounting: no deep sliding during installation by distinctive edge of the anchor sleeve
- ETA-approval for cracked concrete
- Energy-saving series mounting with machine setting device EA II S-SDS
- Visual inspection by embossing
- Use commercially available metric screws and threaded rods reduces complexity.
