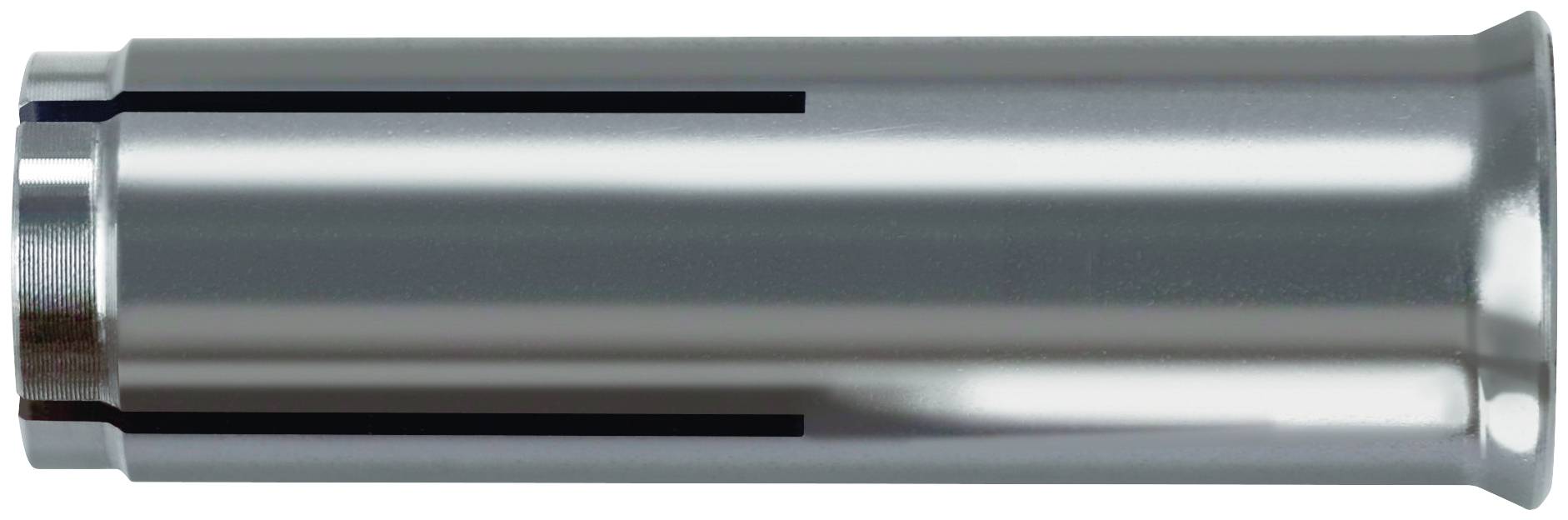

Fischer 48414 EA II M 10 x 40 A4 Plug with internal thread 40 mm 12 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
12 mm
- Product type
Plug with internal thread
- Material
Steel
- Length
40 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 12 mm x 40 mm
- Suitable for
Concrete
Natural stone
- Content
50 pc(s)
- Material properties
rust-proof
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477992 Fischer 48414 EA II M 10 x 40 A4 Plug with internal thread 40 mm 12 mm 50 pc(s)
Description
The fischer impact anchor EA II A 4 is an internal thread made from stainless steel. The Steele plug is flush with the surface with a hammer. anchoring base. With the impact tool EAW H plus or the machine setting device EA II S-SDS is the sleeve with the driving of inner pin in the wings and tightens against the drill hole wall. For a correct straddle irritation, there is no torque on the screw or the threaded rod has to be applied. The fischer Steele plug EA II A4 is ideal for steel constructions and formwork support in the outdoor area with approval.
This text is machine translated.
This text is machine translated.
Features
- Made of stainless steel for attachments in the outdoor area
- Simple shock mounting: no deep sliding during installation by distinctive edge of the anchor sleeve
- ETA-approval for cracked concrete and multiple attachments
- Energy-saving series mounting with machine setting device EA II S-SDS
- Use commercially available metric screws and threaded rods reduces complexity.
