Buy Fischer 500544 FHB II-PF 12 x 120 Highbond HIGH SPEED cartridge 14 mm 10 pc(s)

Concrete stairwell with metal railings and a grated landing over an empty underpass-like space.<br>

Close-up of a red steel beam bolted to a concrete wall with a red mounting plate and four visible bolts.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cartridge

Technical specifications

(Ø): 14 mm

Product type: Highbond HIGH SPEED cartridge

Dim: (Ø) 14 mm

Suitable for: Concrete

Content: 10 pc(s)

Outside Ø: 14 mm

Features: incl. hex nut

UKCA: yes

Documents & Downloads

Security datasheet

Security datasheet 483197 Fischer 500544 FHB II-PF 12 x 120 Highbond HIGH SPEED cartridge 14 mm 10 pc(s)

Signal word

Attention

GHS / H Statements

H 317: May cause an allergic skin reaction
H 411: Toxic to aquatic life, with long-lasting effects

GHS / P Statements

P 280: Wear protective gloves/protective clothing/eye protection/face protection

Description

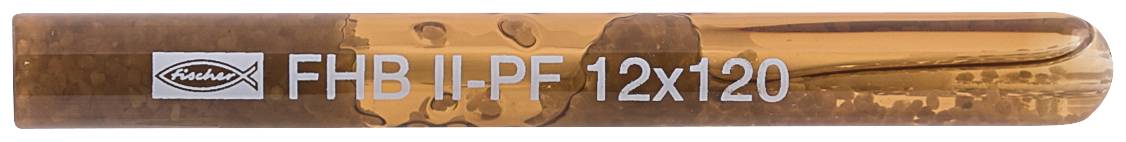

The fishermen cartridge FHB II PF HIGH SPEED is a system component of the fischer highbond system FHB II for attachment in gerissenem ungerissenem and concrete. The mortar cartridge contains a stirene-free vinyl ester mortar and harden very quickly. The mortar cartridge can be used with the fischer Highbond anchor rod FHB II A S (Standard), Highbond anchor rod FHB II A L (long) from electro-galvanised, stainless steel and high corrosion-resistant steel can be used. The fischer Highbond anchor rod with the setting tool RA-SDS with a hammer drill turning-hitting. When setting process, the mortar cartridge will be destroyed, real mix and activates the mortar mass. While tightening the hex nut, the cones of the anchor rod into the mortar shell pulled against the drill hole wall. With the fischer highbond system FHB II facades, machines and steel constructions in indoor and outdoor areas securely fastened.

This text is machine translated.

Features

Particularly fast curing. This reduces the waiting time especially for series installation
ETA-approval for cracked concrete
The same load level as with injection mortar-but without drill hole cleaning
The highest load values in gerissenem concrete. In this way, the less attachment points necessary
Vorportionierte quantity particularly economically with single fastenings. This reduces the installation time and lowers costs.
