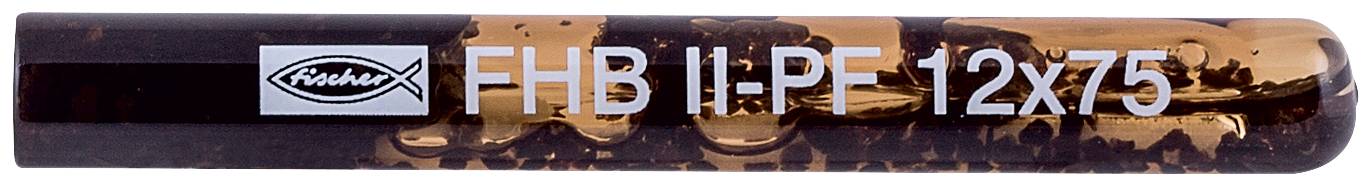

Fischer 500548 FHB II-PF 12 x 75 Highbond HIGH SPEED cartridge 12 mm 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Cartridge
Technical specifications
- (Ø)
12 mm
- Product type
Highbond HIGH SPEED cartridge
- Material
Epoxy resin
- Length
75 mm
- Dim
(Ø x L) 12 mm x 75 mm
- Suitable for
Concrete
- Content
10 pc(s)
- Outside Ø
12 mm
- UKCA
yes
Documents & Downloads
Security datasheet
Security datasheet 483231 Fischer 500548 FHB II-PF 12 x 75 Highbond HIGH SPEED cartridge 12 mm 10 pc(s)
Signal word
Attention
GHS / H Statements
- H 317: May cause an allergic skin reaction
- H 411: Toxic to aquatic life, with long-lasting effects
GHS / P Statements
- P 280: Wear protective gloves/protective clothing/eye protection/face protection
Description
The fishermen cartridge FHB II PF HIGH SPEED is a system component of the fischer highbond system FHB II for attachment in gerissenem ungerissenem and concrete. The mortar cartridge contains a stirene-free vinyl ester mortar and harden very quickly. The mortar cartridge can be used with the fischer Highbond anchor rod FHB II A S (Standard), Highbond anchor rod FHB II A L (long) from electro-galvanised, stainless steel and high corrosion-resistant steel can be used. The fischer Highbond anchor rod with the setting tool RA-SDS with a hammer drill turning-hitting. When setting process, the mortar cartridge will be destroyed, real mix and activates the mortar mass. While tightening the hex nut, the cones of the anchor rod into the mortar shell pulled against the drill hole wall. With the fischer highbond system FHB II facades, machines and steel constructions in indoor and outdoor areas securely fastened.
This text is machine translated.
This text is machine translated.
Features
- Particularly fast curing. This reduces the waiting time especially for series installation
- ETA-approval for cracked concrete
- The same load level as with injection mortar-but without drill hole cleaning
- The highest load values in gerissenem concrete. In this way, the less attachment points necessary
- Vorportionierte quantity particularly economically with single fastenings. This reduces the installation time and lowers costs.
