Fischer 500716 Pipe clamp Pipe clamp FRSN triple 26-28 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Nominal size: 3/4"
- Width x thickness clamp band: 20 x 1.5 mm
- Product type
Pipe clamp
- Content
100 pc(s)
- Material
Steel
- Clamping range
26 up to 28 mm
- Thread size
M8
M10
1/2"
- Material properties
zinc galvanized
- Width
63 mm
- Height
53 mm
- Range (max.)
28 mm
- Clamping range (min.)
26 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877443 Fischer 500716 Pipe clamp Pipe clamp FRSN triple 26-28 100 pc(s)
Description

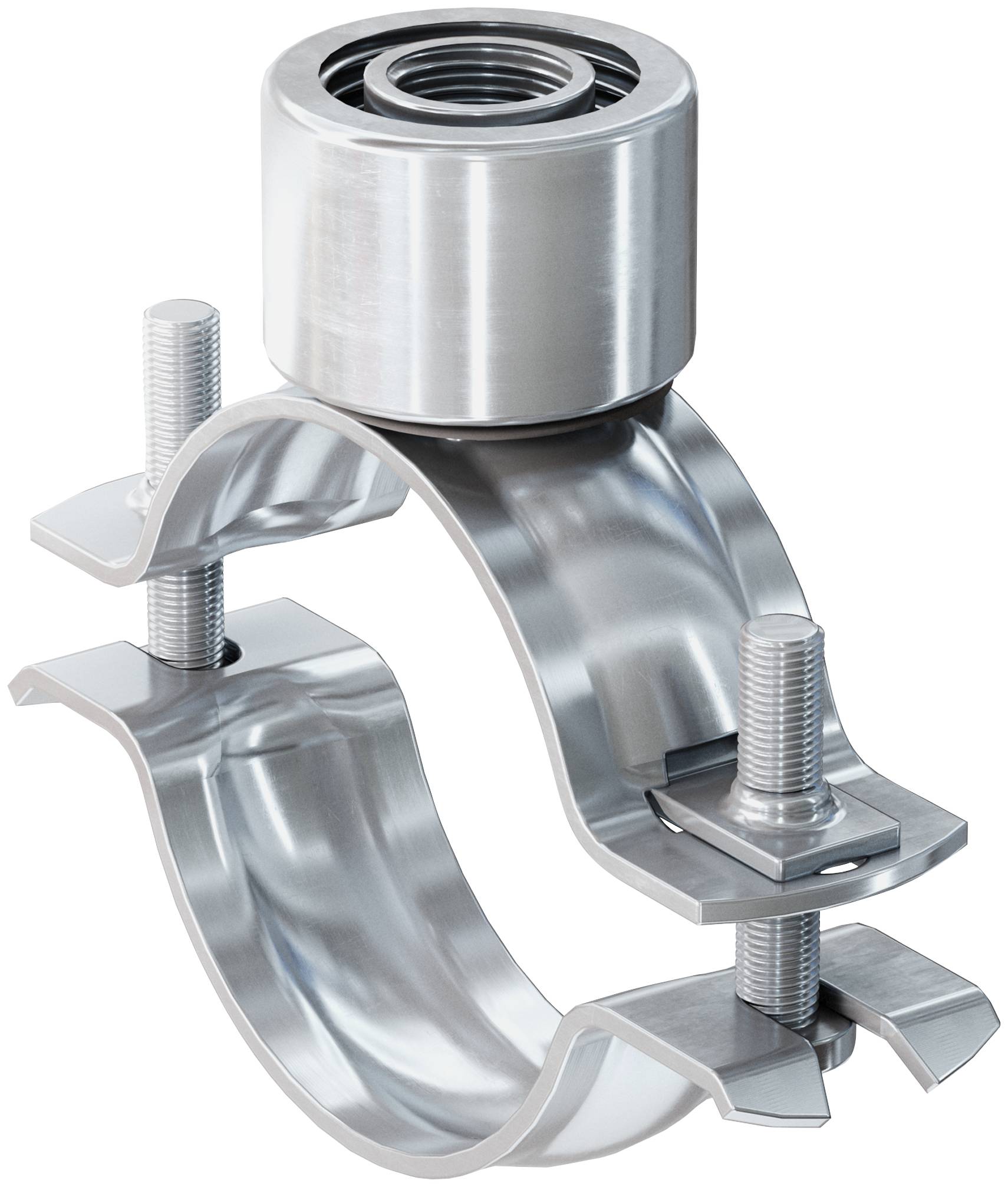

The fishermen pipe clamp FRSN Triple is a zweischraubige pipe clamp from electro-galvanised the material good DD11 with three-way connection thread M8/M10 and ½" without sound insulation insert. The quick release fastener enables easy and time-saving assembly. The design with two screws guarantees the optimal adaptation to the tube outer diameter. Together with the three-way connection thread will increase the flexibility. So that you can pipes with a diameter of 15 - 114 mm with threaded rod or stock screw economical and safe in buildings can be attached.
Advantages and benefits
The connecting nut with combination thread M8/M10/1/2" enables an optimized storage.
The quick release allows a simple and time-saving assembly.
The two screw sustainability enables an optimum adjustment on the tube outer diameter.
This text is machine translated.
Advantages and benefits
The connecting nut with combination thread M8/M10/1/2" enables an optimized storage.
The quick release allows a simple and time-saving assembly.
The two screw sustainability enables an optimum adjustment on the tube outer diameter.
