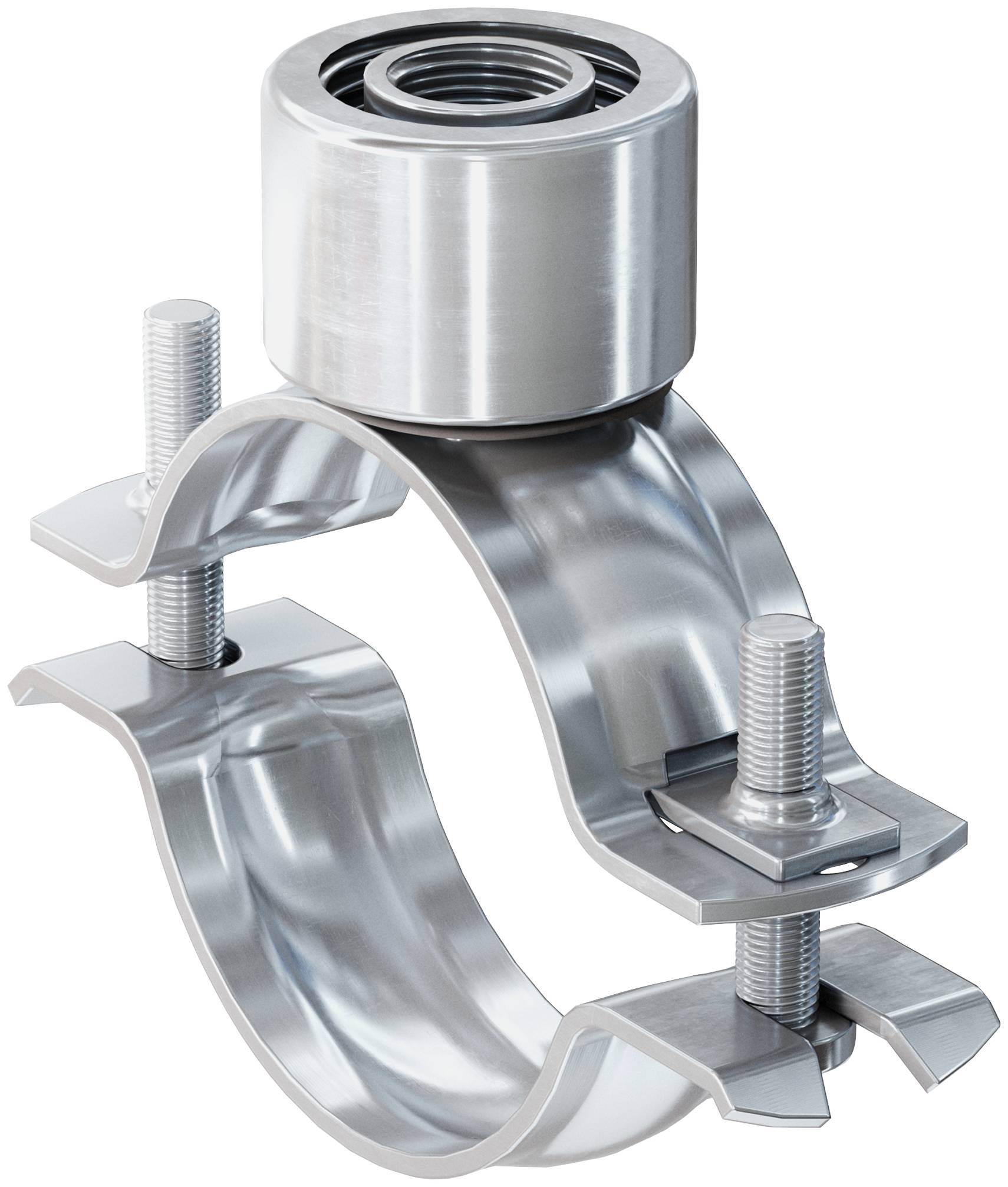

Fischer 500720 Pipe clamp Pipe clamp FRSN triple 57-62 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Nominal size: 2"
- Width x thickness clamp band: 20 x 1.5 mm
- Product type
Pipe clamp
- Content
50 pc(s)
- Material
Steel
- Clamping range
57 up to 63 mm
- Thread size
M8
M10
1/2"
- Material properties
zinc galvanized
- Width
97 mm
- Height
87 mm
- Range (max.)
63 mm
- Clamping range (min.)
57 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877843 Fischer 500720 Pipe clamp Pipe clamp FRSN triple 57-62 50 pc(s)
Description
The zweischraubige pipe clamp with snap closure and three-way connection nut.
Advantages and benefits
The connecting nut with combination thread M8/M10/1/2" enables an optimized storage.
The quick release allows a simple and time-saving assembly.
The two screw sustainability enables an optimum adjustment on the tube outer diameter.
