Name: Fischer 503140 FH II 10/25 H Heavy duty anchor 90 mm 10 mm 50 pc(s)
Brand: Fischer
SKU: 483392

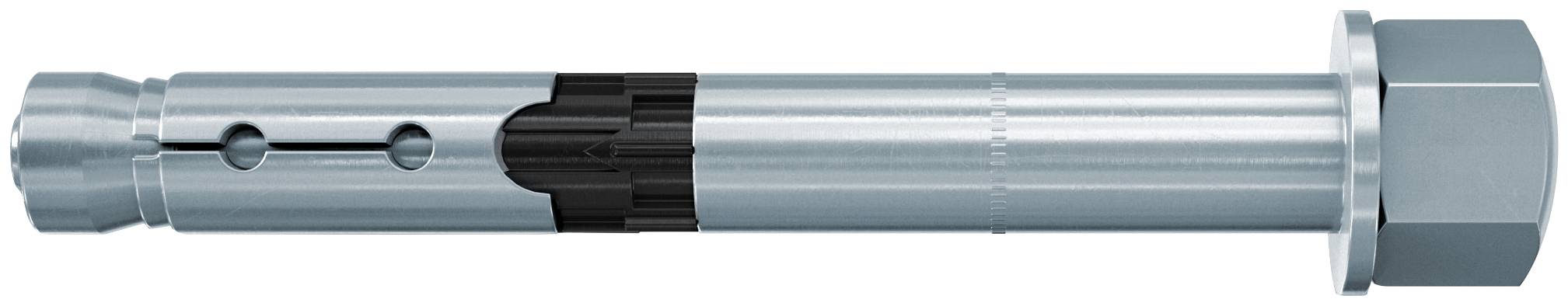

Metal cylindrical shaft with a hex nut on the right and a slotted, black-centered end on the left, shown on a white background.

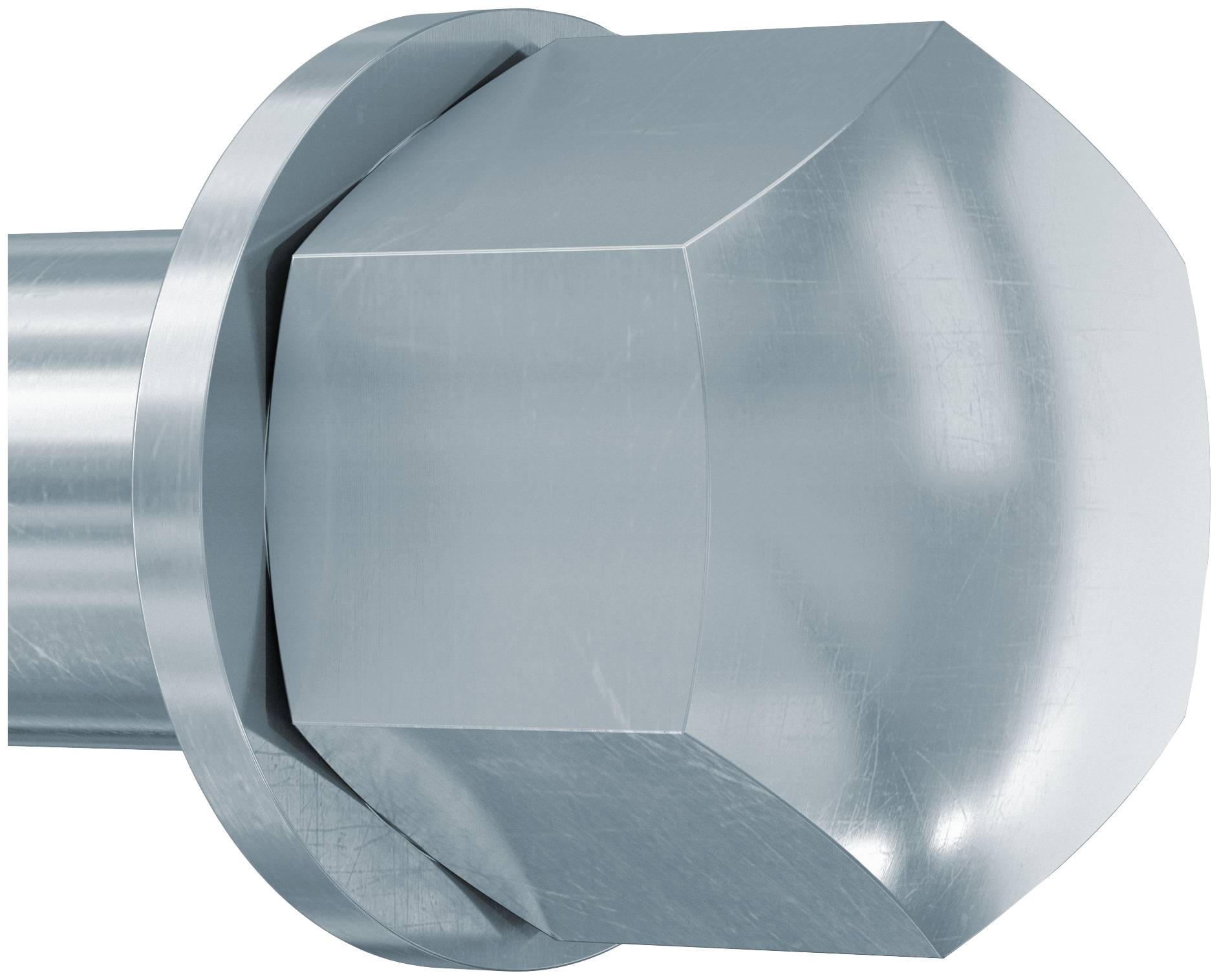

Close-up of a metal bolt with a hexagonal cap nut and washer on a smooth cylindrical shaft.

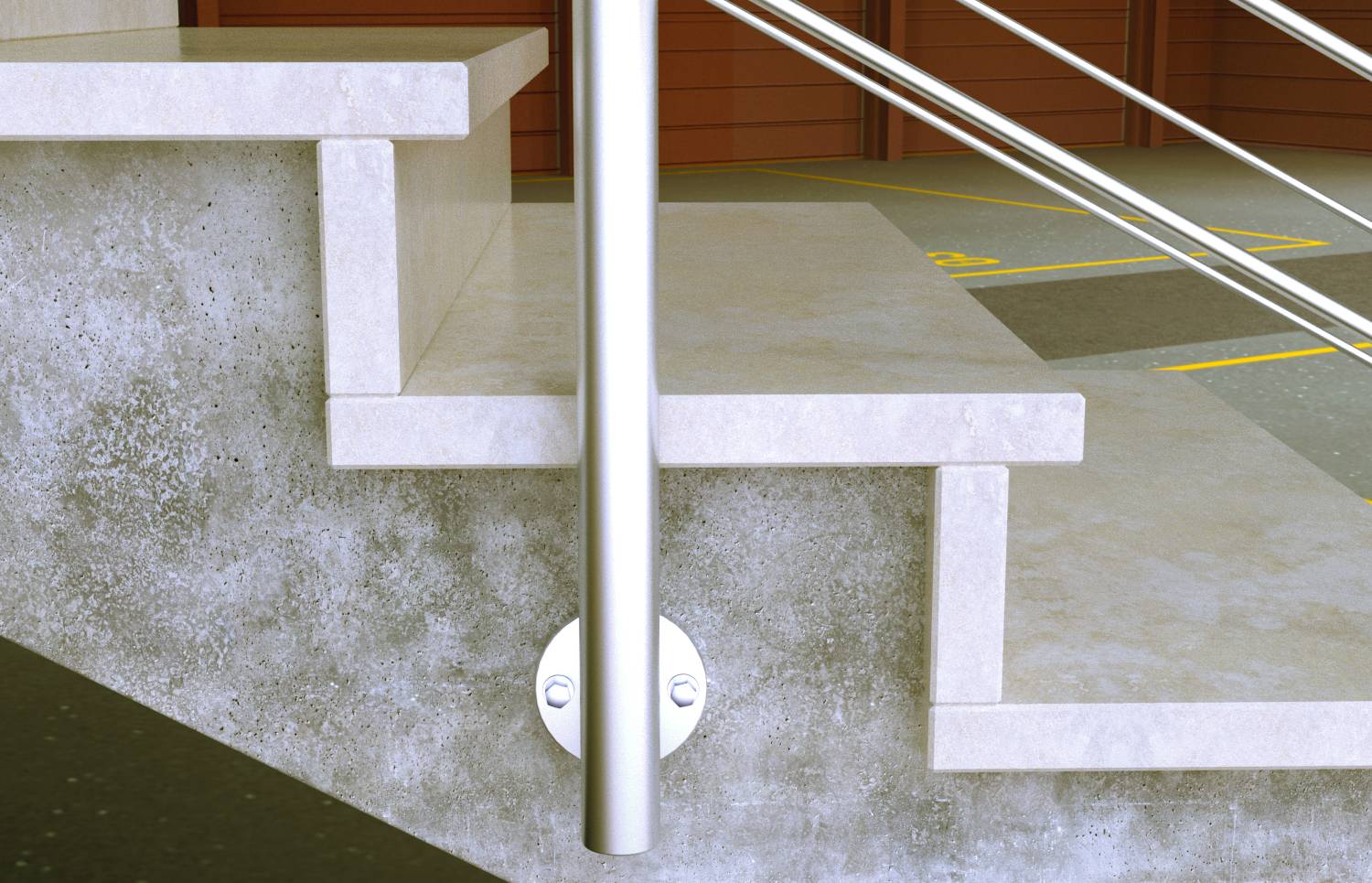

Concrete stair and ramp with metal handrail, showing an accessible entryway with yellow step markings in the background.

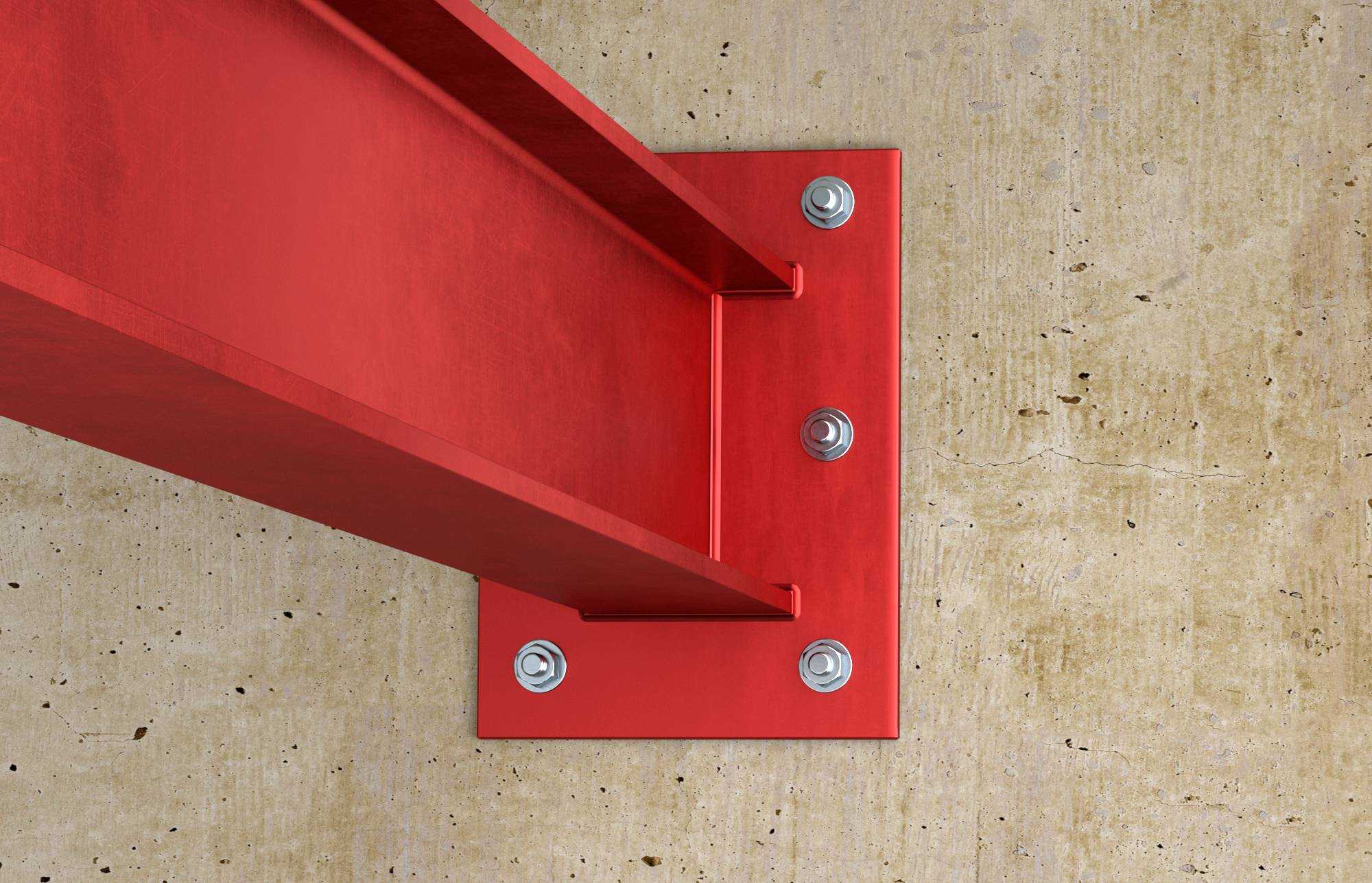

Close-up of a red steel beam bolted to a concrete wall plate, showing the structural connection.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

(Ø): 10 mm

Product type: Heavy duty anchor

Material: Steel

Length: 90 mm

Screw diameter: 6 mm

Dim: (Ø x L) 10 mm x 90 mm

Suitable for: Concrete
Natural stone

Content: 50 pc(s)

Features: incl. domed cap nut

Material properties: zinc galvanized

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

(Ø)

Dim

Content

Fischer 090933 FH II 10/10 S K NV Heavy duty anchor 10 mm 1 Set

Item no:3065933

Fast track dispatch on Wed 21 Oct

15 Set(s)Conrad Electronic

10 mm

(Ø) 10 mm

1 Set

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 8.49^*

Fischer 090934 FH II 12/10 S K NV Heavy duty anchor 12 mm 1 Set

Item no:3065935

Fast track dispatch on Wed 21 Oct

31 Set(s)Conrad Electronic

12 mm

(Ø) 12 mm

1 Set

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

Fischer 44884 FH II 12/10 S Heavy duty anchor 90 mm 12 mm 50 pc(s)

Item no:477691

Unavailable

Conrad Electronic

12 mm

(Ø x L) 12 mm x 90 mm

50 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44886 FH II 12/50 S Heavy duty anchor 130 mm 12 mm 25 pc(s)

Item no:477693

Unavailable

Conrad Electronic

12 mm

(Ø x L) 12 mm x 130 mm

25 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44887 FH II 15/10 S Heavy duty anchor 106 mm 15 mm 25 pc(s)

Item no:477694

Unavailable

Conrad Electronic

15 mm

(Ø x L) 15 mm x 106 mm

25 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44888 FH II 15/25 S Heavy duty anchor 121 mm 15 mm 25 pc(s)

Item no:477695

Unavailable

Conrad Electronic

15 mm

(Ø x L) 15 mm x 121 mm

25 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44894 FH II 18/25 S Heavy duty anchor 132 mm 18 mm 20 pc(s)

Item no:477697

Unavailable

Conrad Electronic

18 mm

(Ø x L) 18 mm x 132 mm

20 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44896 FH II 18/50 S Heavy duty anchor 157 mm 18 mm 20 pc(s)

Item no:477698

Unavailable

Conrad Electronic

18 mm

(Ø x L) 18 mm x 157 mm

20 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44898 FH II 24/25 S Heavy duty anchor 160 mm 24 mm 10 pc(s)

Item no:477699

Unavailable

Conrad Electronic

24 mm

(Ø x L) 24 mm x 160 mm

10 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 44900 FH II 24/50 S Heavy duty anchor 185 mm 24 mm 10 pc(s)

Item no:477700

Unavailable

Conrad Electronic

24 mm

(Ø x L) 24 mm x 185 mm

10 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 483392 Fischer 503140 FH II 10/25 H Heavy duty anchor 90 mm 10 mm 50 pc(s)

Description

The fischer high-performance anchor FH II H with cap nut is an anchor plug from galvanically zinc-plated steel. The anchor is in the time-saving through-hole mounting. While tightening of the anchor, the cone in the split sleeve pulled and tightens them against the drill hole wall. The black plastic ring prevents the armature rotates, and the tightness slip to. The Add-on will be drawn to the anchoring reason. The fischer high-performance anchor FH II H with cap nut is best suited to in gerissenem ungerissenem concrete and steel constructions, machines and gates.

This text is machine translated.
