Fischer 503780 SXR 10 x 100 T K NV Plug (long) 100 mm 1 Set
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
Only 1 Set(s) available
Highlights & Details

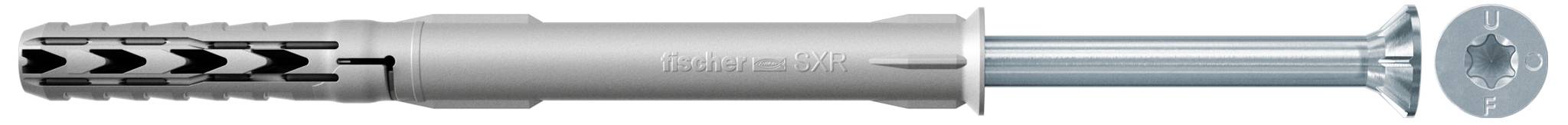

Fischer SXR 10 x 100 T countersunk screw long shaft plugs
- Low anchoring depth saves time and costs.
- ETA evaluation in concrete and masonry.
- With pre-mounted safety screw with countersunk head.

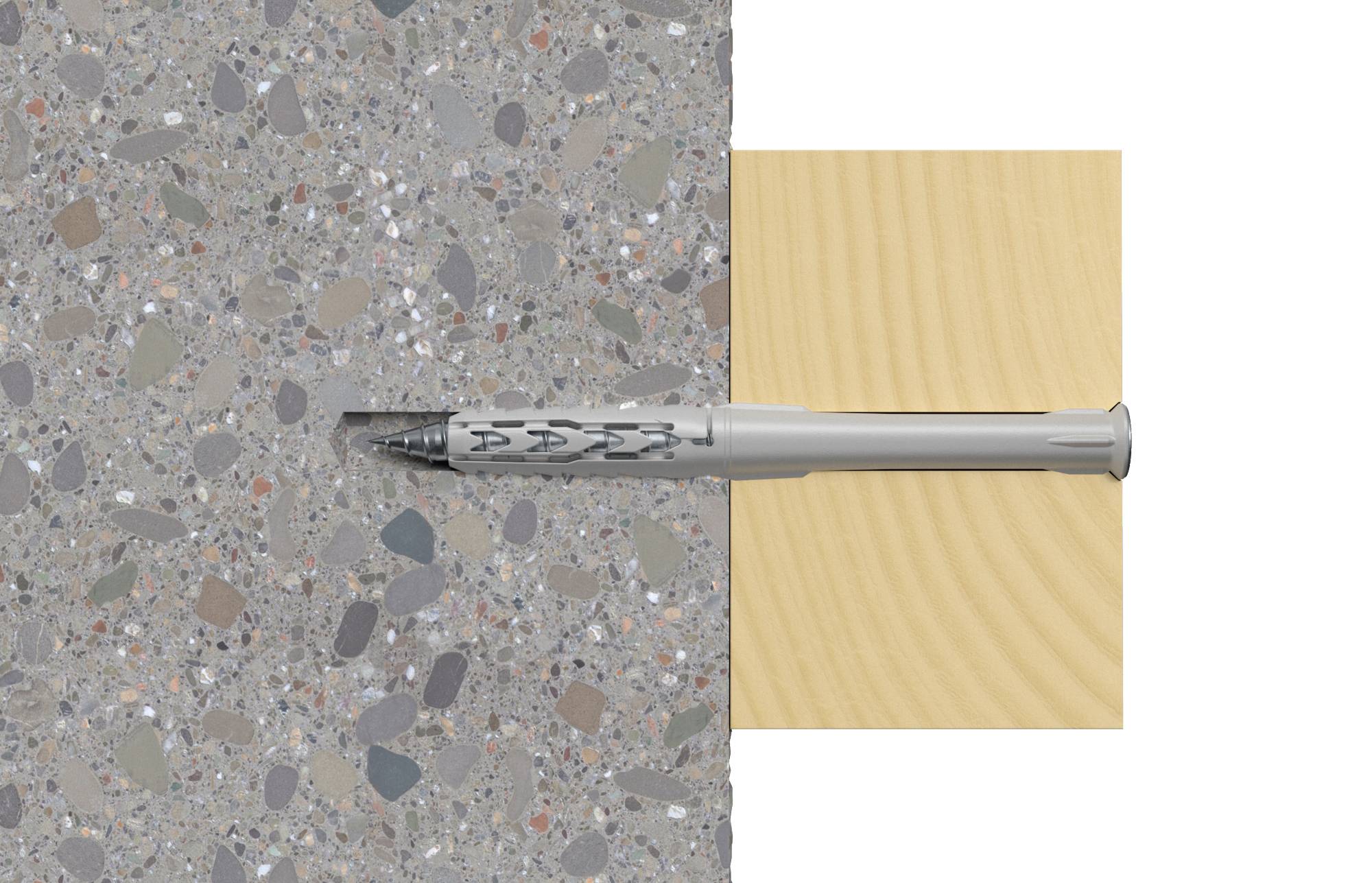

- Dowel spread out in solid building materials.

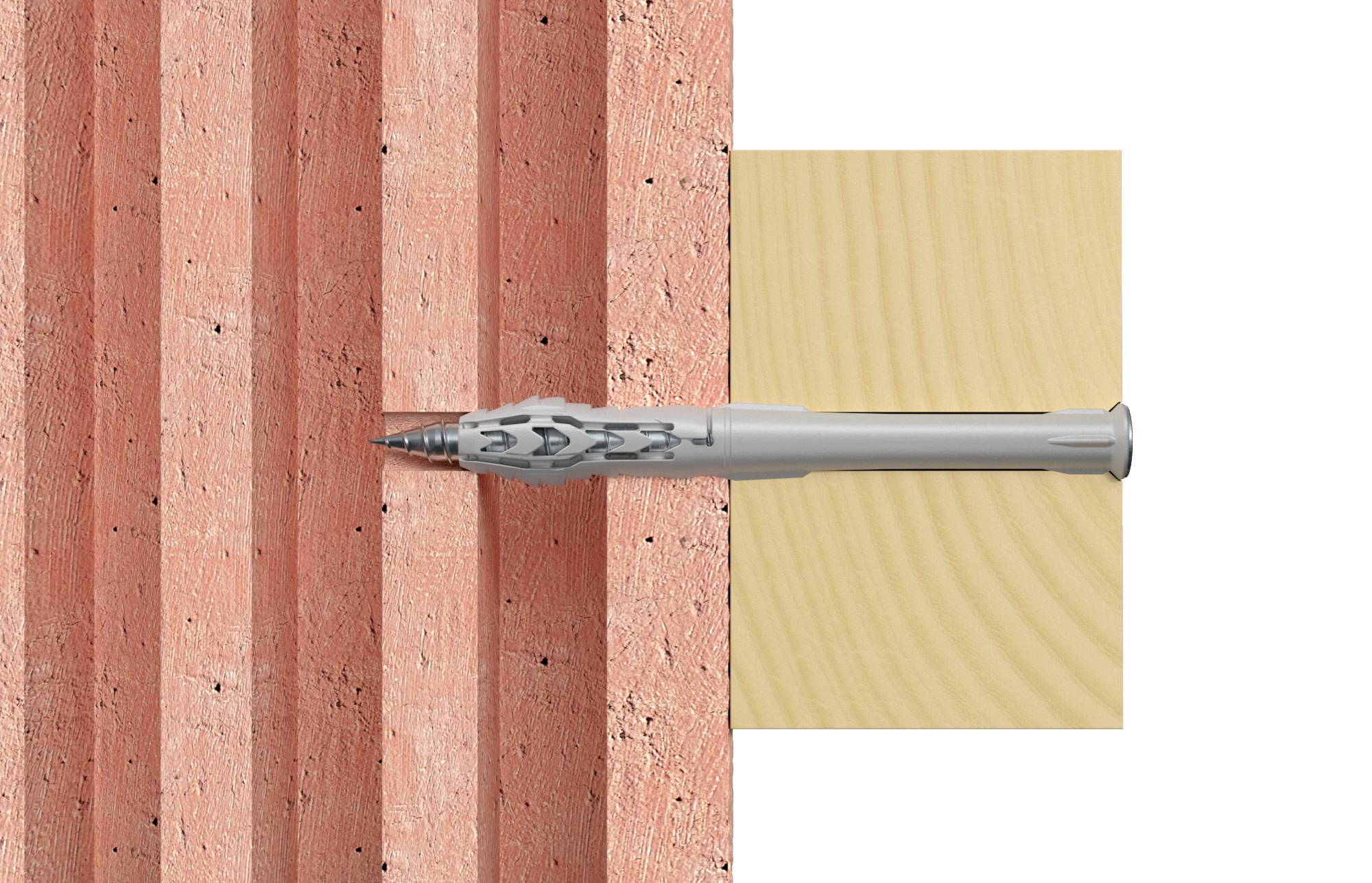

- The dowel anchored in the hollow space in perforated building materials.
Technical specifications
- Product type
Plug (long)
- Material
Steel
- Length
100 mm
- Suitable for
Concrete
Cored bricks
Flintlime hollow bricks
Flintlime bricks
Natural stone
Foamed concrete wall
Solid brick
Thermal insulation blocks
- Content
1 Set
- Outside Ø
10 mm
- Material properties
zinc galvanized
Documents & Downloads
Datasheet
Datasheet 3065955 Fischer 503780 SXR 10 x 100 T K NV Plug (long) 100 mm 1 Set
Datasheet 3065955 Fischer 503780 SXR 10 x 100 T K NV Plug (long) 100 mm 1 Set
User & Safety Instructions
User & Safety Instructions 3065955 Fischer 503780 SXR 10 x 100 T K NV Plug (long) 100 mm 1 Set
Information
Information 3065955 Fischer 503780 SXR 10 x 100 T K NV Plug (long) 100 mm 1 Set
Description
The Fischer SXR-T long shaft bolt is a high-quality nylon plug with pre-mounted Fischer safety screw with countersunk head. Thanks to the special dowel geometry the SXR can be used in solid building materials and perforated building materials. Due to the low anchorage depth of only 50 mm, the long shaft bolt can be processed particularly economically, especially in case of multiple fixings of non-load systems. The Fischer SXR-T long shaft anchor bolt with the countersunk screw is particularly recommended for fixing wooden structures.
This text is machine translated.
This text is machine translated.
Scope of delivery

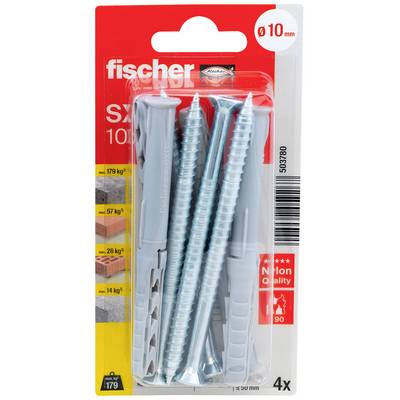

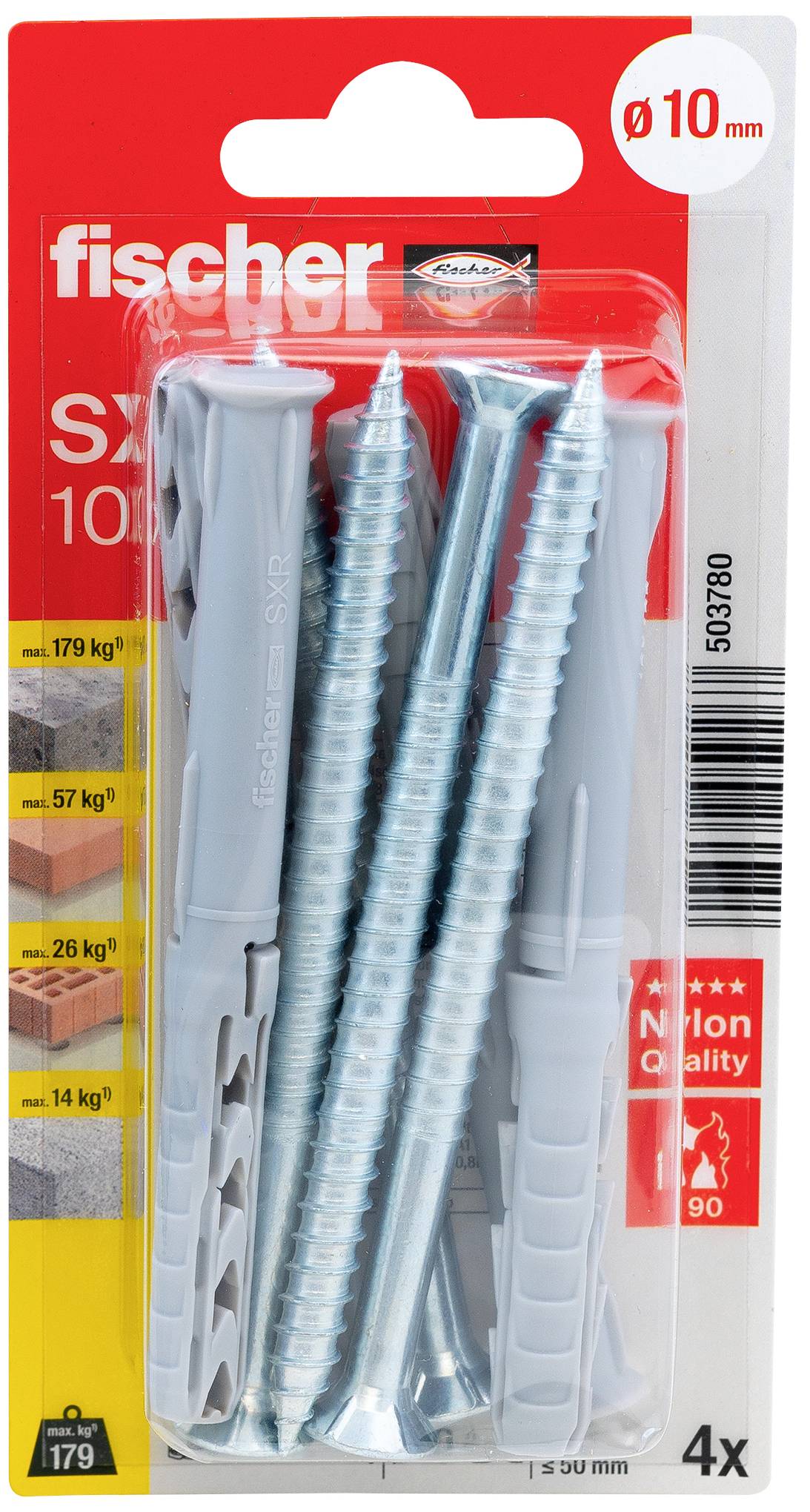

- 4 x SXR 10 x 100, 4 x countersunk screws 7.0 x 107 mm
