Fischer 503785 PA 4 M6/13,5 K NV Brass plug 13 mm 1 Set
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
14-day return policy included
Highlights & Details

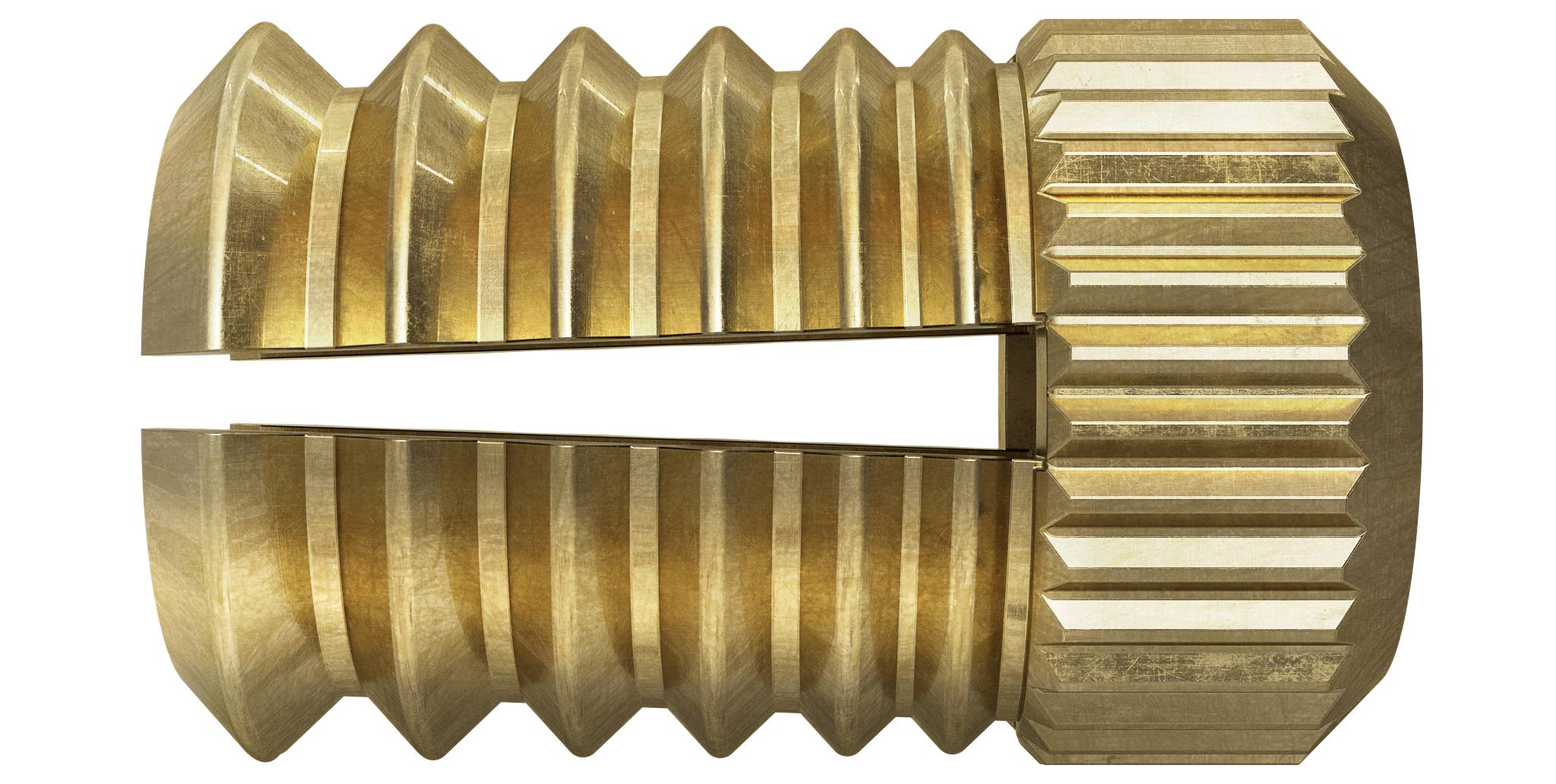

Fischer brass plug PA 4 M6/13.5
- Ideal for thin panels due to low anchoring depth.
- No rotation thanks to special surface structure.
- High flexibility through use of conventional metric screws.
Technical specifications
- Product type
Brass plug
- Material
Brass
- Length
13 mm
- Suitable for
Timber board materials
PVC sheets
Concrete
Solid brick
Flintlime bricks
Natural stone
- Content
1 Set
- Outside Ø
8 mm
Documents & Downloads
Datasheet
Datasheet 3065960 Fischer 503785 PA 4 M6/13,5 K NV Brass plug 13 mm 1 Set
User & Safety Instructions
User & Safety Instructions 3065960 Fischer 503785 PA 4 M6/13,5 K NV Brass plug 13 mm 1 Set
Description

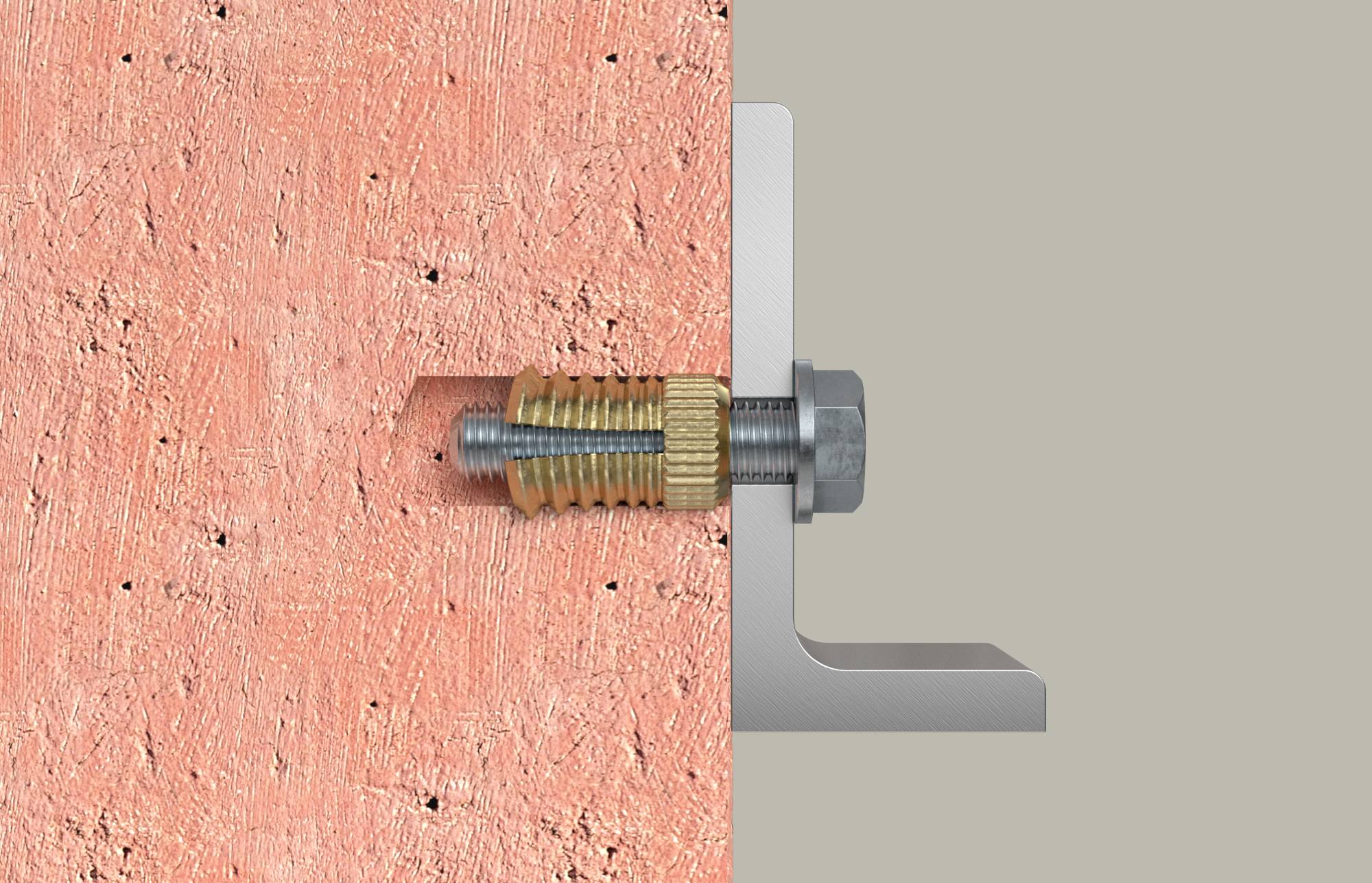

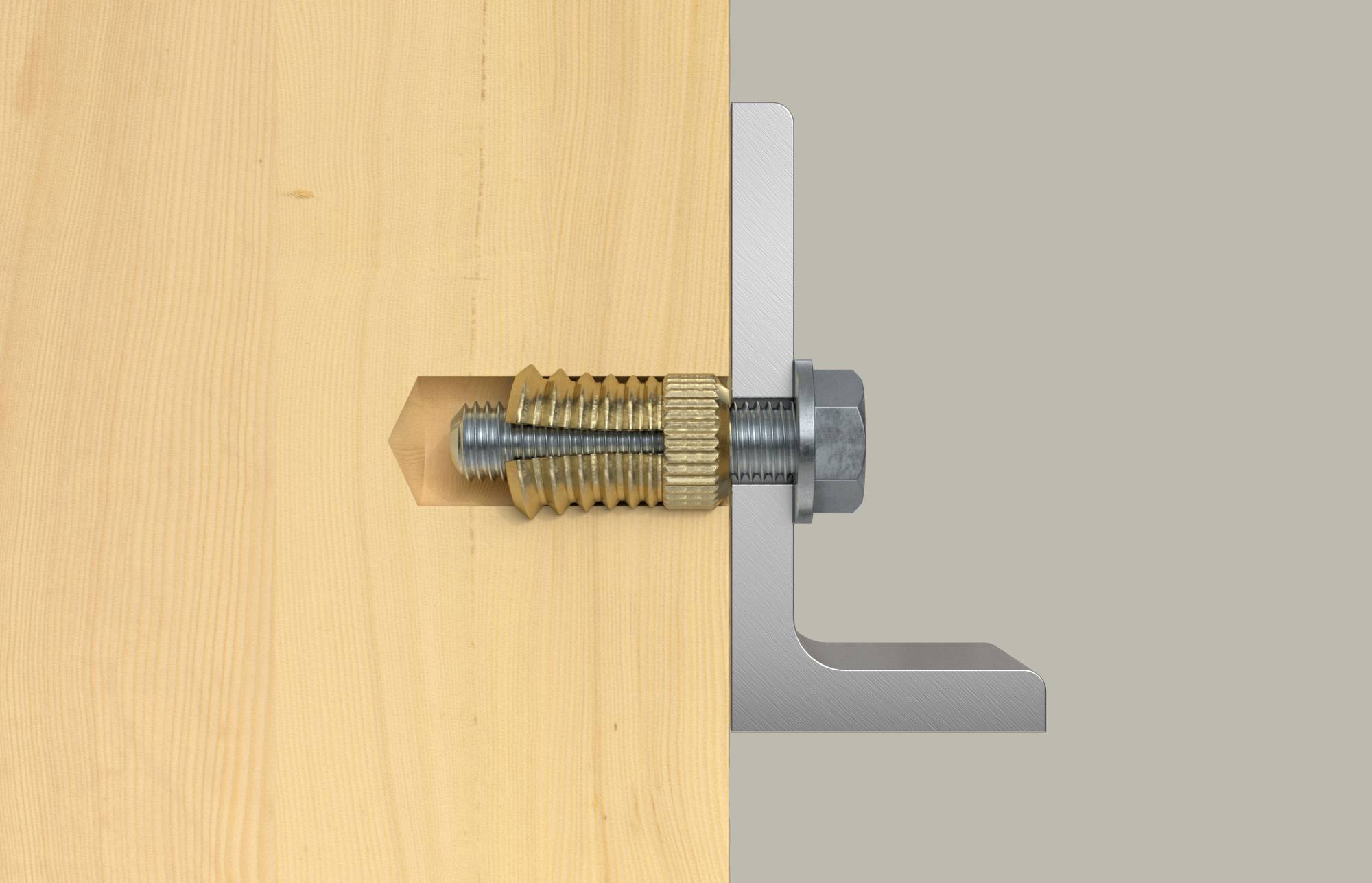

The Fischer PA 4 brass plug is a special plug for fixing metric screws in thin board materials. The brass dowel is used in the plug-in assembly. When the screw is screwed in, the plug expands and anchors in the building material. The Fischer PA 4 brass plug is Ideal to attach handles, brackets or lamps in wood board materials, plastic plates, but also in concrete, solid bricks and lime sand solid stone.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 5 x brass plugs PA 4 M6/13.5
