Fischer 504270 Hammer drill bit 40 mm Total length 570 mm SDS-Max 1 pc(s)
EAN:
Part number:
Item no:
Product type
Hammer drill bit
Drill hole Ø
40 mm
Material
Carbide metal
Material suitability
Concrete
Stone
Masonry
Working length
450 mm
Highlights & Details

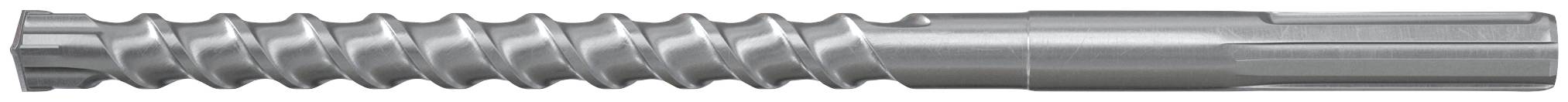

fischer SDS Max IV drill 40 / 450 / 570
- Four-edge drill head. One-piece solid carbide cutting element. Centering tip. Four-course drill coil. PGM® compliant cutting element.
Technical specifications
- Product type
Hammer drill bit
- Drill hole Ø
40 mm
- Material
Carbide metal
- Material suitability
Concrete
Stone
Masonry
- Working length
450 mm
- Content
1 pc(s)
- Total length
570 mm
- Tool holder
SDS-Max
- Shank Ø
40 mm
- Weight
1942 g
- Length
40 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2587431 Fischer 504270 Hammer drill bit 40 mm Total length 570 mm SDS-Max 1 pc(s)
Description

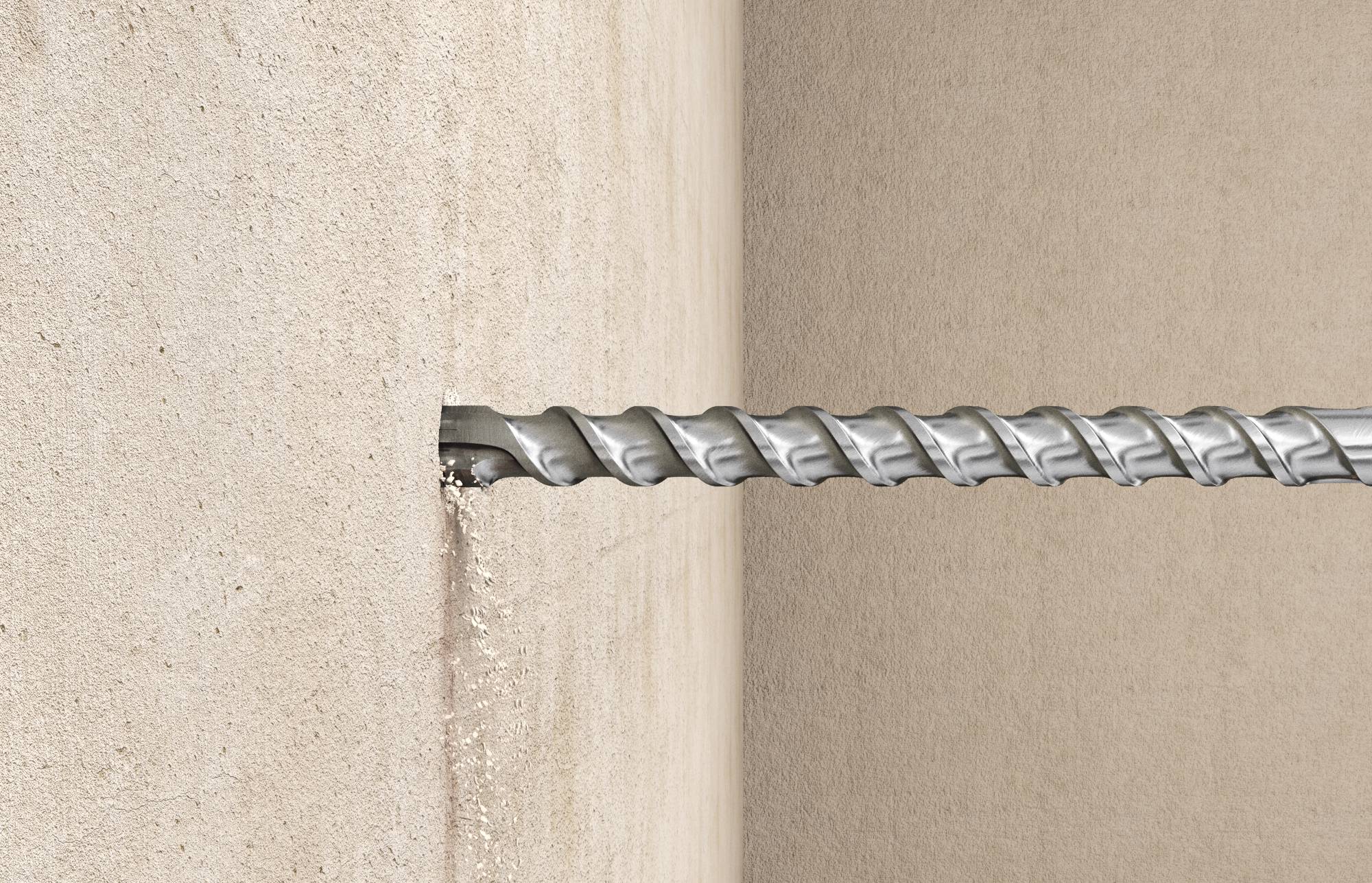

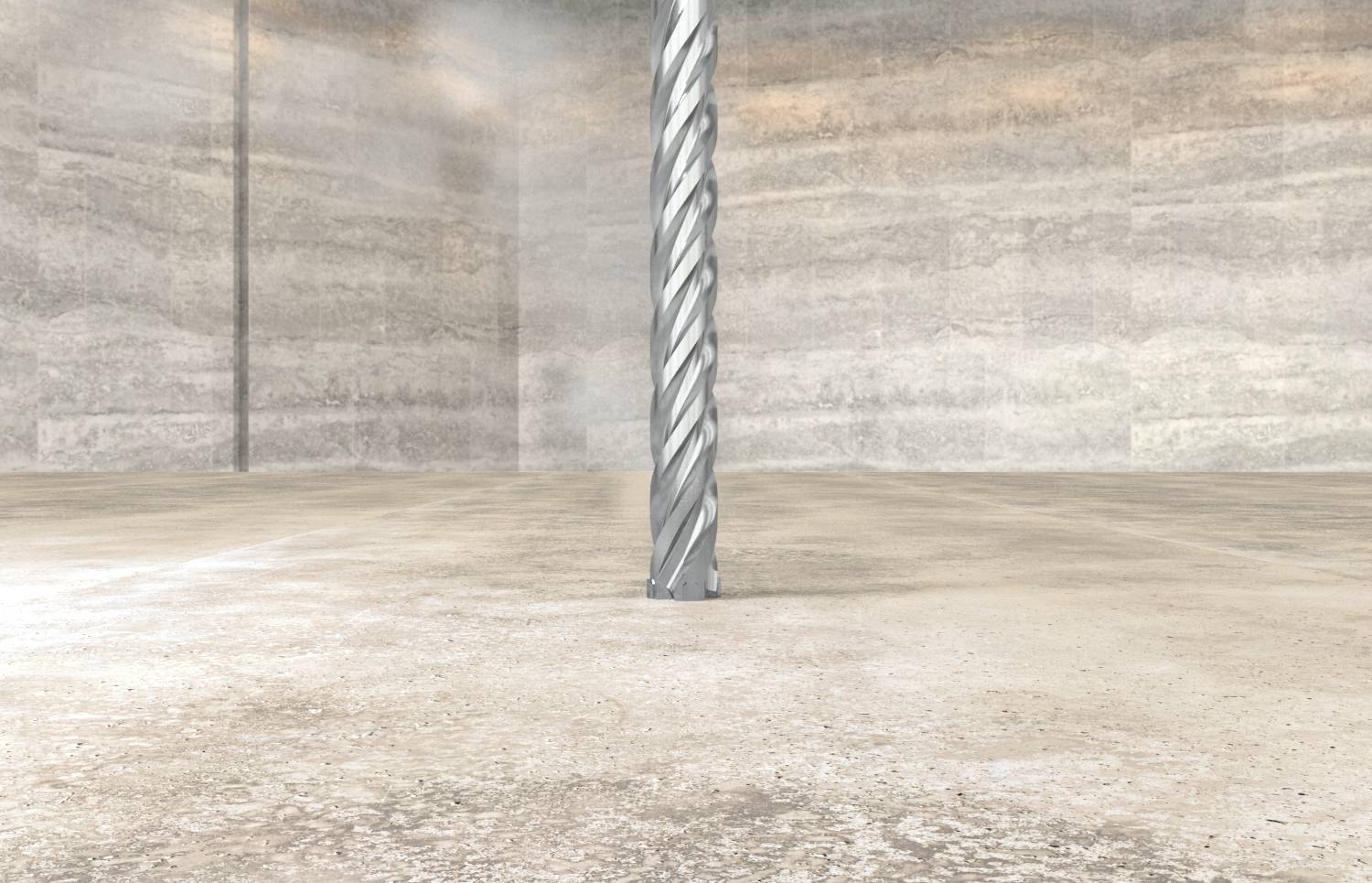

High-quality fischer hammer drill SDS Max IV 40/450/570 for the creation of approved drill holes in concrete, masonry and natural stone. SDS Max chuck, 40 mm diameter, 450 mm screw drill, 570 mm total length. Four-edged drill head prevents the hooking in the reinforcement. The centering tip enables a simple and precise drilling. The core-reinforced drill coil ensures maximum power transmission and low vibration drilling behavior. The PGM®-compliant cutting element guarantees precise drill holes and fulfills the highest safety requirements.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 fischer drill SDS Max IV 40 / 450 / 570
