Fischer 50510 M 10 Dowel 60 mm 20 mm 10 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
20 mm
- Product type
Dowel
- Material
Polyamide
Brass
- Length
60 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 20 mm x 60 mm
- Suitable for
Concrete
Natural stone
Solid brick
Flintlime bricks
Solid stone
Drywall sheet
- Content
10 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479154 Fischer 50510 M 10 Dowel 60 mm 20 mm 10 pc(s)
Description

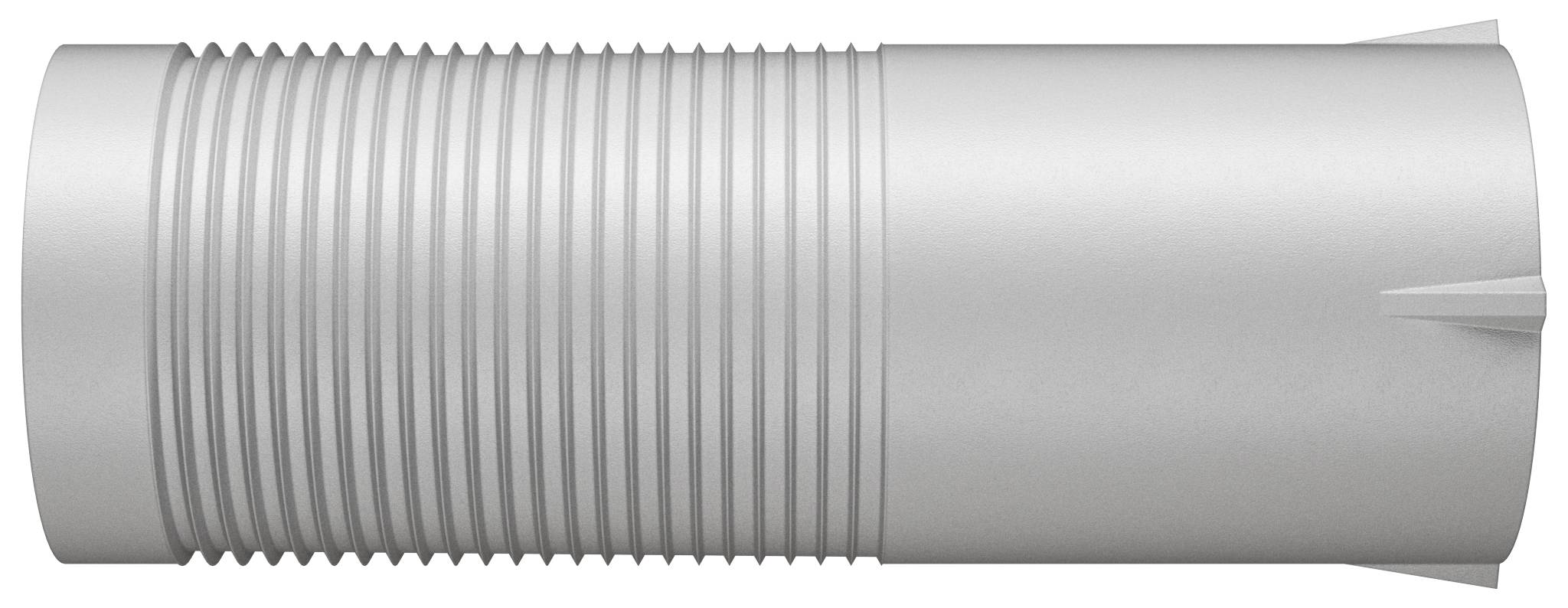

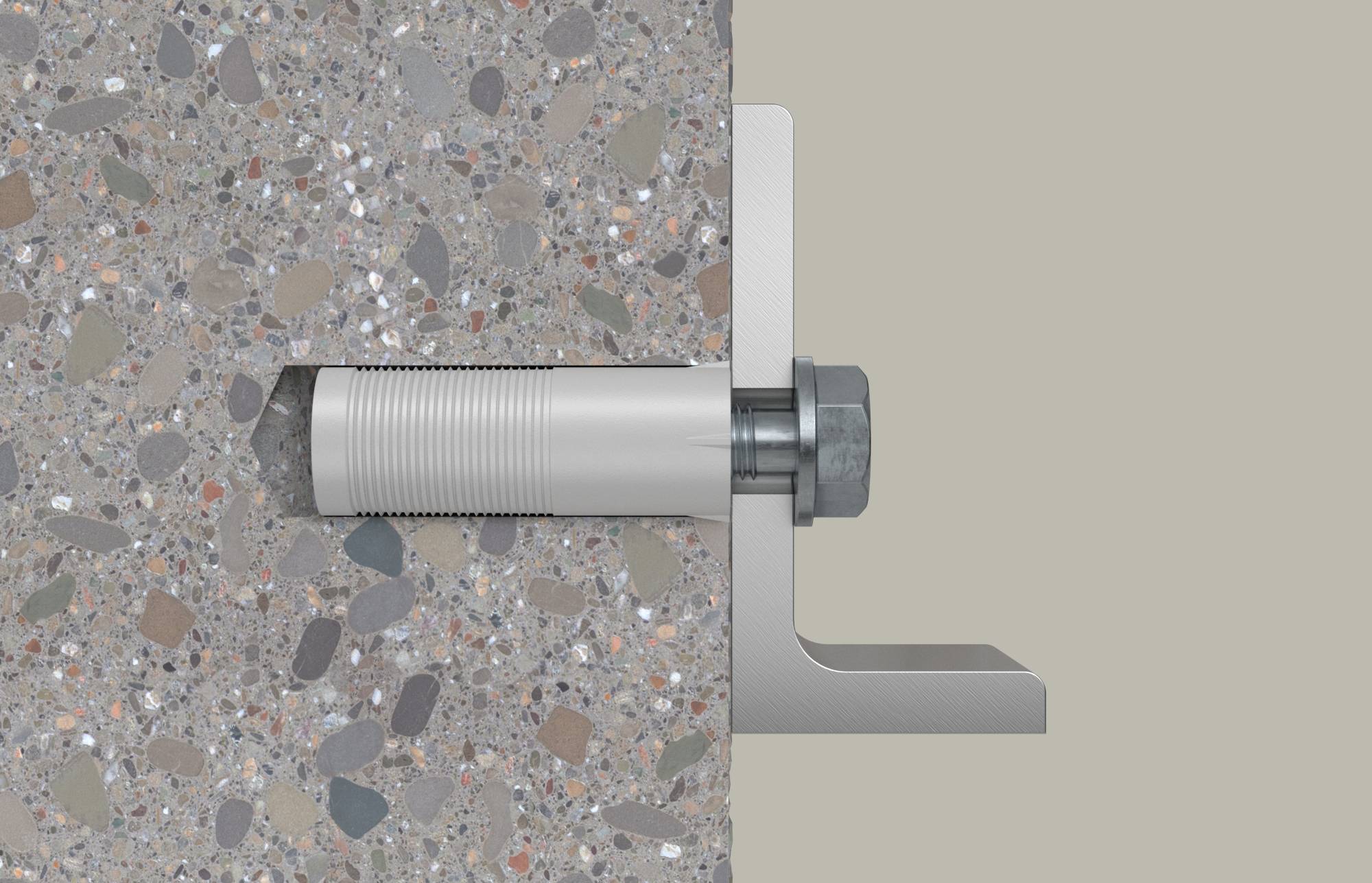

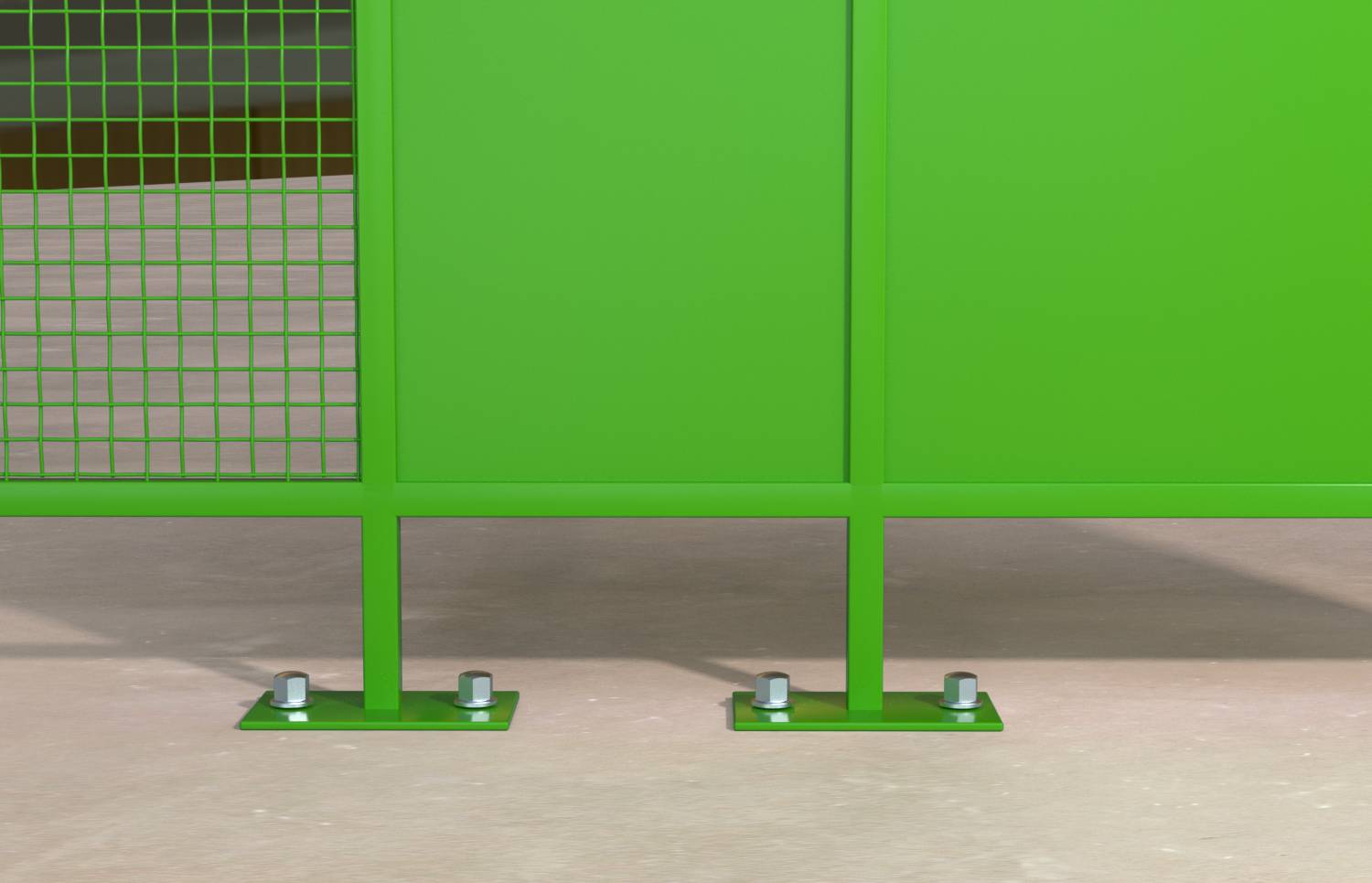

the fischer M plug is a expanding plug made of high-quality polyamide with a brass cone for accepting a metric thread. The special plug is placed in the pre-plug assembly. When screwing in the screw or the threaded rod, the brass cone lying inside is spread and the dowel is anchored against the drill hole wall. the fischer M plug is particularly suitable for mounting machines, protective grillees and control cabinets in solid materials.
This text is machine translated.
This text is machine translated.
Features
- Simple and secure mounting: High Aufspreizmass makes insensitive to material tolerance
- Flexibility through the use of commercially available screws and threaded rods
- High load-bearing capacity of the dowel by a large outer diameter
- Surface-flush dismantling possible.
