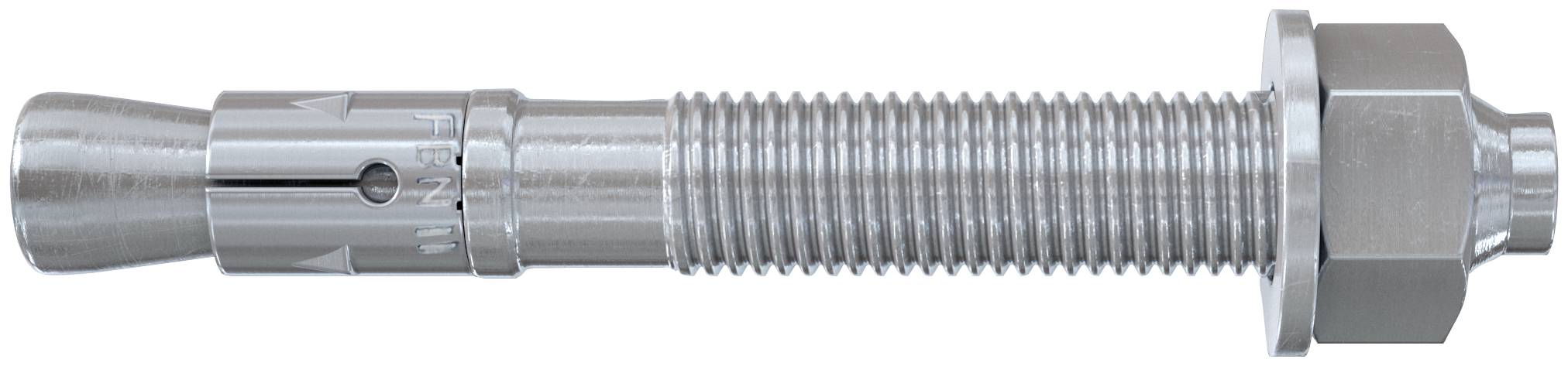

Fischer 505526 FBN II 6/5 Cavity fixing 50 mm 6 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
6 mm
- Product type
Cavity fixing
- Material
Steel
- Length
50 mm
- Screw diameter
6 mm
- Dim
(Ø x L) 6 mm x 50 mm
- Suitable for
Concrete
Natural stone
- Content
100 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 483724 Fischer 505526 FBN II 6/5 Cavity fixing 50 mm 6 mm 100 pc(s)
Description

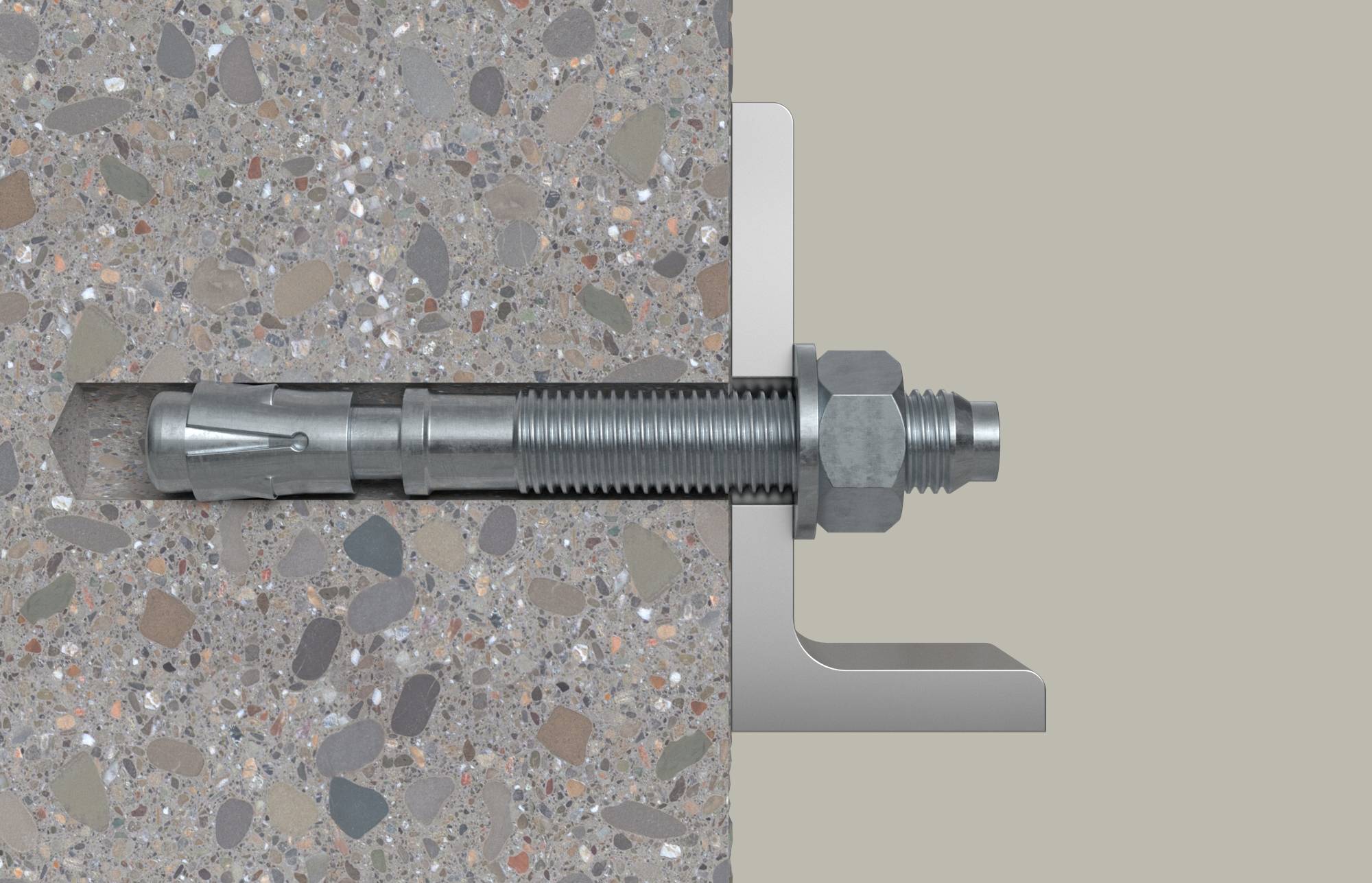

The fishermen anchor bolt FBN II is a steel anchor for economic attachments in ungerissenem concrete. Thanks to the long thread is the anchor bolt FBN II especially flexible fischer. In addition to the pre-plug-and-hole mounting is the Cavity fixing for the distance between mounting. In the execution of electro-galvanised is the bolt anchor for railings, cable trays, consoles, suitable for indoor use.
This text is machine translated.
This text is machine translated.
Features
- Easy mounting through a few hammer blows and minimum slip
- Impact Peg Protects threads from damage. This saves time when you assemble and dismantle
- With the long threads are balanced component tolerances. In addition, the FBN II for distance montages. This increases the flexibility.
