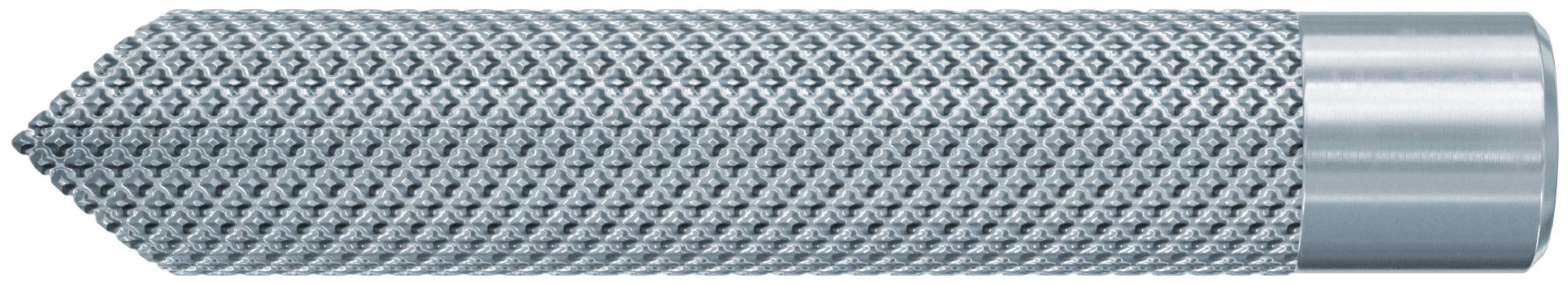

Fischer 50563 RG 22 x 160 M16 I Plug with internal thread 160 mm 24 mm 5 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
24 mm
- Product type
Plug with internal thread
- Material
Steel
- Length
160 mm
- Screw diameter
16 mm
- Dim
(Ø x L) 24 mm x 160 mm
- Suitable for
Concrete
Natural stone
- Content
5 pc(s)
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479165 Fischer 50563 RG 22 x 160 M16 I Plug with internal thread 160 mm 24 mm 5 pc(s)
Description

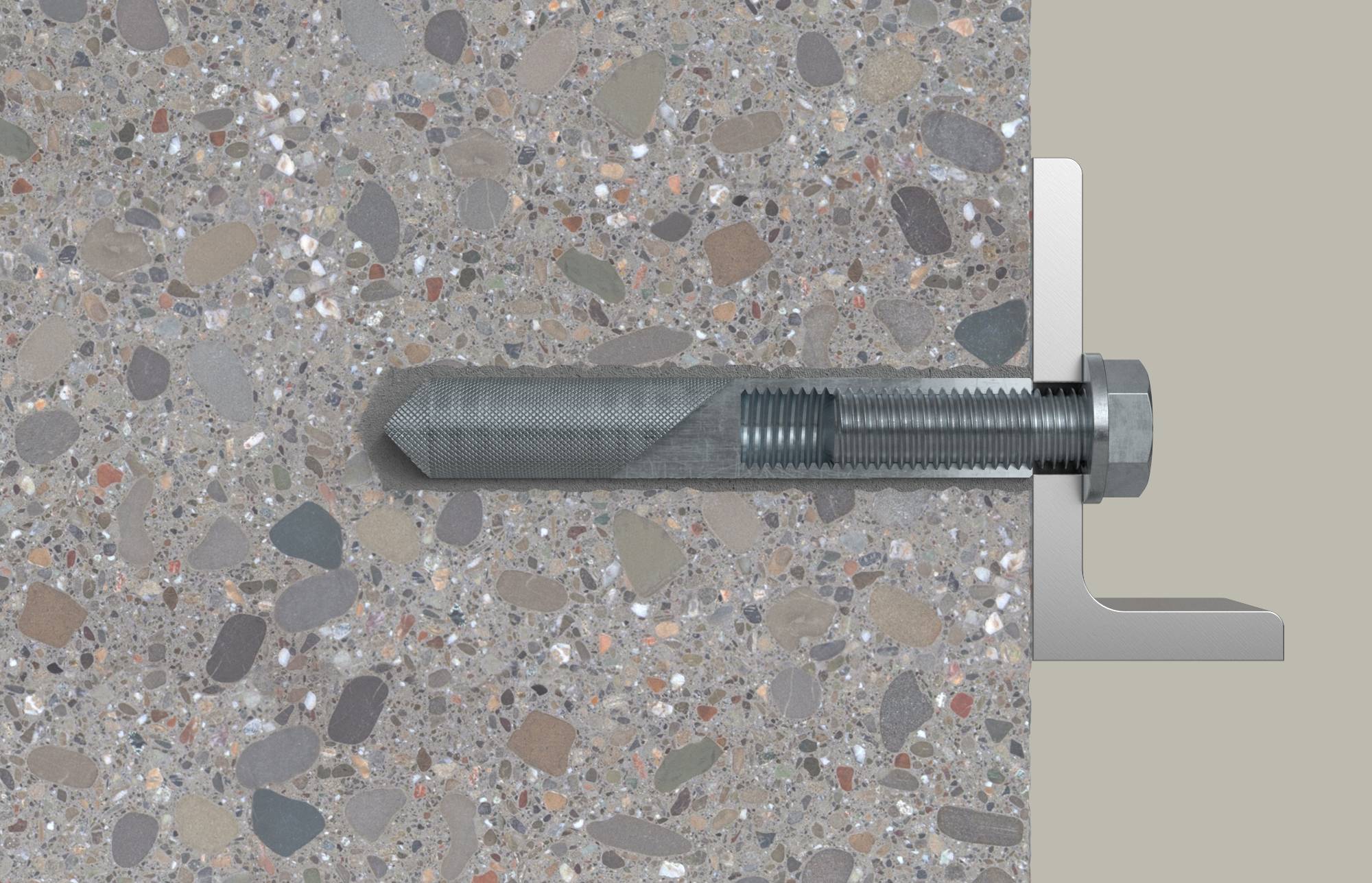

The fischer internal thread RG M I is electro-galvanised. The internal thread is a system accessories for the different fischer mortar cartridge or injection mortar. For single fixings, the application with the vorportionierten mortar cartridge particularly economically. When mounting with the mortar cartridge, the RG MI with a hammer drill turning-hitting. When setting process, the mortar cartridge will be destroyed, real mix and activates the mortar mass. When mounting with the injektionsmorteln is the internal thread by hand under easy rotating movements in the Borhloch. The different mortar glue the RG M I fully with the drill hole wall. The internal thread can be dismounted surface flush and especially for temporary fasteners, for example of machines, suitable for indoor use.
This text is machine translated.
This text is machine translated.
Features
- ETA-approval for maximum safety.
- Standard screws and threaded rods can be used. This reduces cost and complexity
- In combination with the various mortar cartridge or injection mortar approved for anchoring in gerissenem and ungerissenem concrete

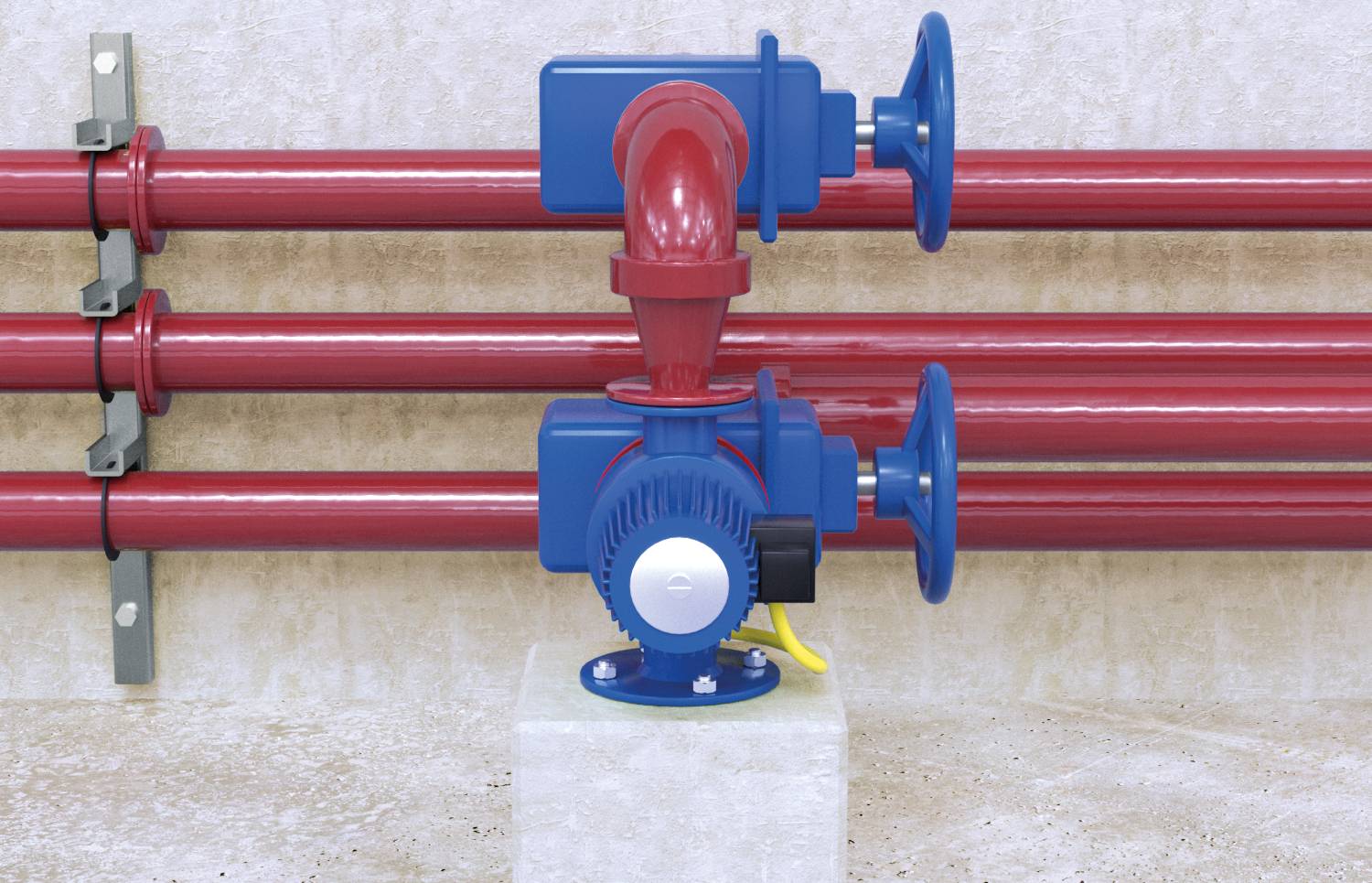

- Surface-flush dismantling enables reuse of the attachment point.
