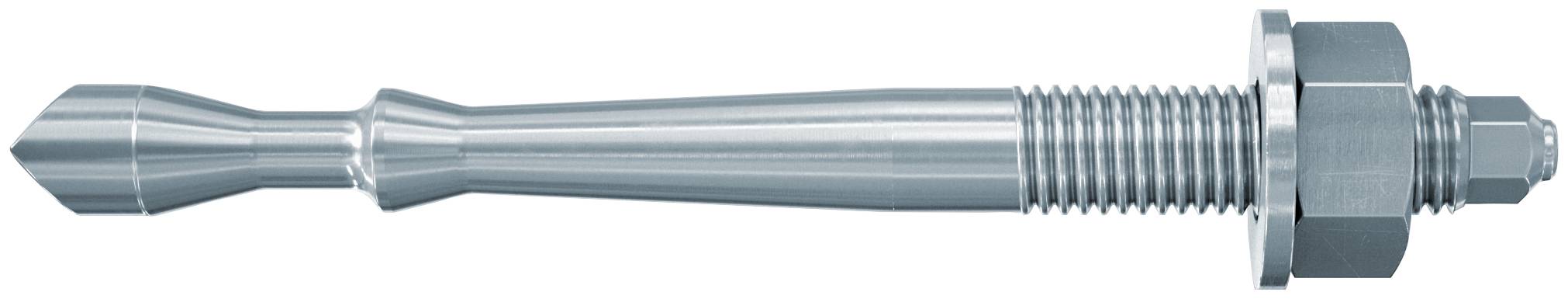

Fischer 506885 FHB II-A S M10 x 75/20 Highbond anchor rod 95 mm 10 mm 10 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
10 mm
- Product type
Highbond anchor rod
- Material
Steel
- Length
95 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 10 mm x 95 mm
- Suitable for
Concrete
- Content
10 pc(s)
- Features
incl. hex nut
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 483855 Fischer 506885 FHB II-A S M10 x 75/20 Highbond anchor rod 95 mm 10 mm 10 pc(s)
Description
The fischer Highbond anchor rod FHB II A S is made of electro-galvanised. The spreizende Highbond anchor can be controlled with the high bond special mortar FIS HB or the mortar cartridges FHB II-P and FHB II PF HIGH-SPEED processing. While tightening the hex nut, the cones of the anchor rod into the mortar shell pulled against the drill hole wall. With the fischer highbond system FHB II railings, machines and steel constructions in the inner area securely fastened.
This text is machine translated.
This text is machine translated.
Features
- When using a mortar cartridge is not drill hole cleaning required. This saves time
- Through-hole mounting without tools. This saves time
- ETA-approval for cracked concrete
- Optimized for low-axis and edge distances in gerissenem concrete
- Reduced anchoring depth reduces the effort when drilling and install. This saves costs.
