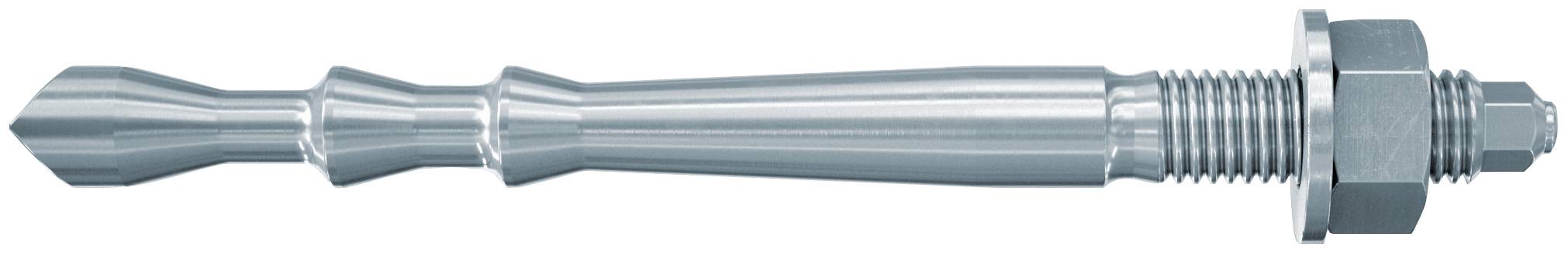

Fischer 506912 FHB II-A L M16 x 145/60 Highbond anchor rod 205 mm 18 mm 10 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
18 mm
- Product type
Highbond anchor rod
- Material
Steel
- Length
205 mm
- Screw diameter
16 mm
- Dim
(Ø x L) 18 mm x 205 mm
- Suitable for
Concrete
- Content
10 pc(s)
- Features
incl. hex nut
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 483881 Fischer 506912 FHB II-A L M16 x 145/60 Highbond anchor rod 205 mm 18 mm 10 pc(s)
Description
The fischer Highbond anchor rod FHB II A L is made of electro-galvanised. The spreizende Highbond anchor can be controlled with the high bond special mortar FIS HB or the mortar cartridges FHB II-P and FHB II PF HIGH-SPEED processing. While tightening the hex nut, the cones of the anchor rod into the mortar shell pulled against the drill hole wall. With the fischer highbond system FHB II are large machines and heavy steel constructions in the inner area securely fastened.
This text is machine translated.
This text is machine translated.
Features
- When using a mortar cartridge is not drill hole cleaning required. This saves time
- ETA-approval for cracked concrete
- Maximum load values by large anchoring depth. This requires less fixing points and smaller anchor plates
- Optimized for low-axis and edge distances in gerissenem concrete
- Optimized anchor rod for highest tensile load.
