Fischer 506919 FHB II-A S M20 x 170/50 A4 Highbond anchor rod 230 mm 25 mm 4 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
25 mm
- Product type
Highbond anchor rod
- Material
Steel
- Length
230 mm
- Screw diameter
20 mm
- Dim
(Ø x L) 25 mm x 230 mm
- Suitable for
Concrete
- Content
4 pc(s)
- Features
incl. hex nut
- Material properties
rust-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 483887 Fischer 506919 FHB II-A S M20 x 170/50 A4 Highbond anchor rod 230 mm 25 mm 4 pc(s)
Description

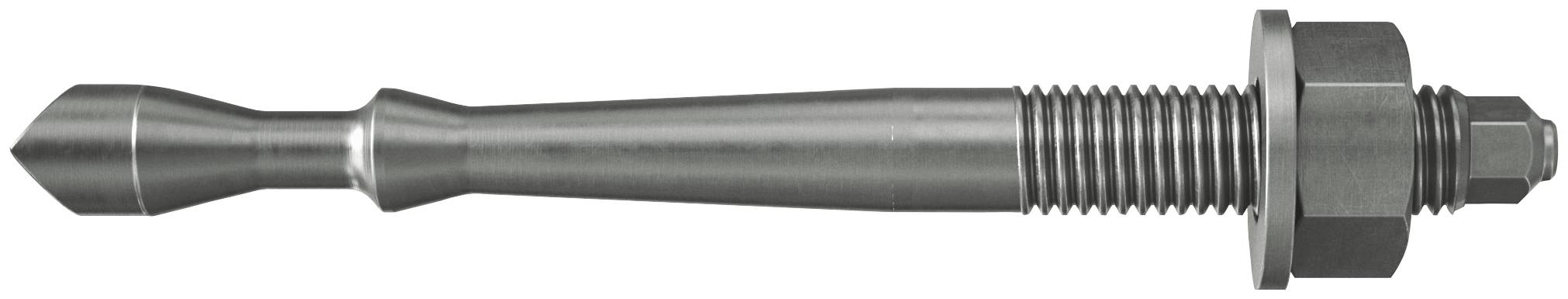

The fischer Highbond anchor rod FHB II A S A4 is made of stainless steel. The spreizende Highbond anchor can be controlled with the high bond special mortar FIS HB or the mortar cartridges FHB II-P and FHB II PF HIGH-SPEED processing. While tightening the hex nut, the cones of the anchor rod into the mortar shell pulled against the drill hole wall. With the fischer highbond system FHB II facades, railings and steel constructions in the outdoor area securely fastened.
This text is machine translated.
This text is machine translated.
Features
- Made of stainless steel for attachments in the outdoor area
- When using a mortar cartridge is not drill hole cleaning required. This saves time
- Through-hole mounting without tools. This saves time
- Optimized for low-axis and edge distances in gerissenem concrete
- Reduced anchoring depth reduces the effort when drilling and install. This saves costs.
