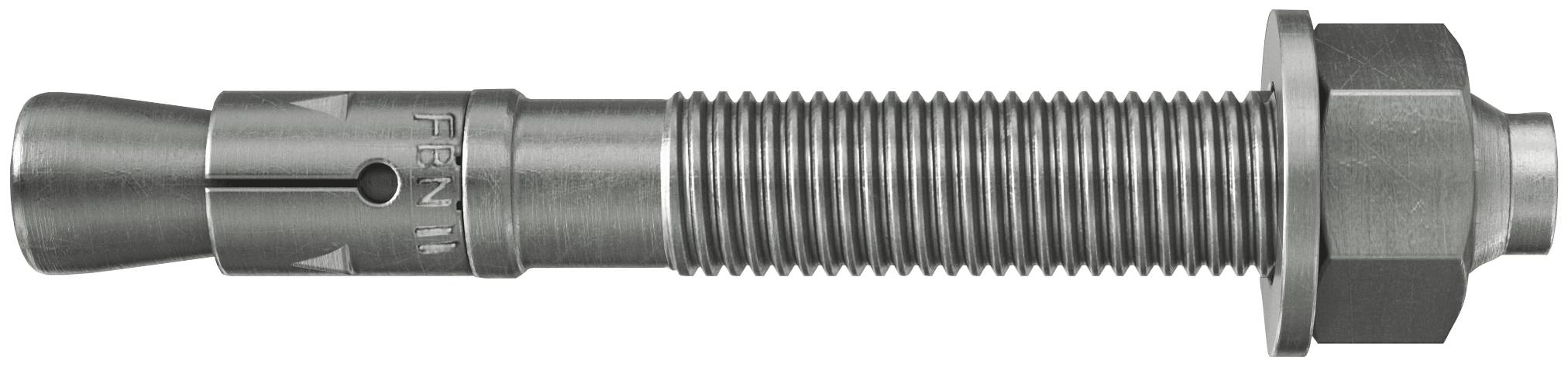

Fischer 507566 FBN II 12/50 A4 Cavity fixing 146 mm 12 mm 20 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
12 mm
- Product type
Cavity fixing
- Material
Steel
- Length
146 mm
- Screw diameter
12 mm
- Dim
(Ø x L) 12 mm x 146 mm
- Suitable for
Concrete
Natural stone
- Content
20 pc(s)
- Material properties
rust-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 483905 Fischer 507566 FBN II 12/50 A4 Cavity fixing 146 mm 12 mm 20 pc(s)
Description
The fishermen anchor bolt FBN II is a steel anchor for economic attachments in ungerissenem concrete. Thanks to the long thread, and the two anchor bolt FBN II deep is the fishermen anchor especially flexible. In addition to the pre-plug-and-hole mounting is the Cavity fixing for the distance between mounting. In the execution of stainless steel is the bolt anchor for facade substructures, consoles and ladders outdoors.
This text is machine translated.
This text is machine translated.
Features
- Easy mounting through a few hammer blows and minimum slip
- With the long threads are balanced component tolerances. In addition, the FBN II for distance montages. This increases the flexibility
- With the standard anchoring depth reaches the FBN II highest load capacity. This means: less fixing points and smaller anchor plates
- Stainless Steel: Lasting security in the outdoor area
- Is the reduced anchoring depth used, reduces the hole depth and simplifies the installation.
