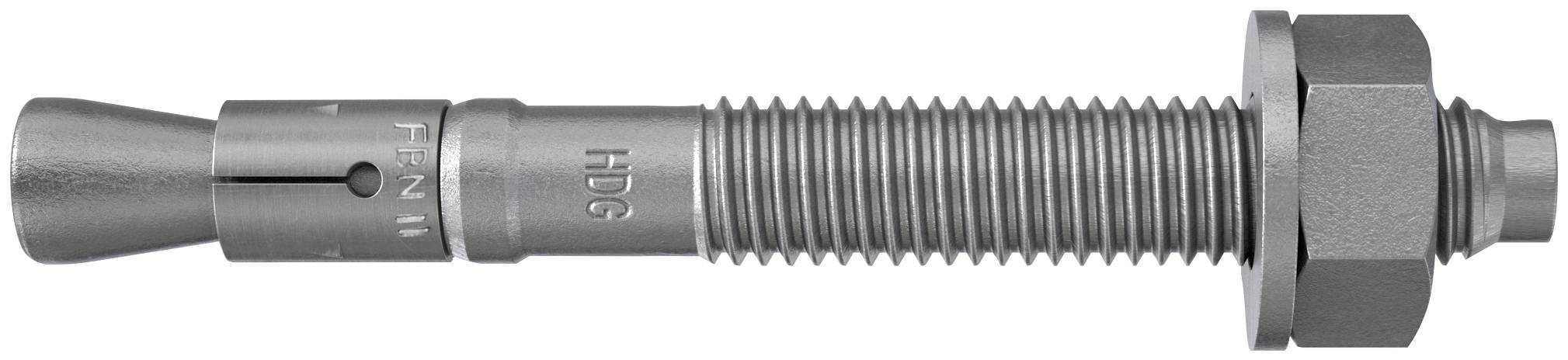

Fischer 507578 FBN II 8/70 fvz Cavity fixing 131 mm 8 mm 20 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
8 mm
- Product type
Cavity fixing
- Material
Steel
- Length
131 mm
- Screw diameter
8 mm
- Dim
(Ø x L) 8 mm x 131 mm
- Suitable for
Concrete
Natural stone
- Content
20 pc(s)
- Material properties
hot-dip galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 483916 Fischer 507578 FBN II 8/70 fvz Cavity fixing 131 mm 8 mm 20 pc(s)
Description
The fishermen anchor bolt FBN II is a steel anchor for economic attachments in ungerissenem concrete. Thanks to the long thread, and the two anchor bolt FBN II deep is the fishermen anchor especially flexible. In addition to the pre-plug-and-hole mounting is the Cavity fixing for the distance between mounting. From fire galvanised steel is the bolt anchor for balustrades, handrails or consoles, suitable for indoor use.
This text is machine translated.
This text is machine translated.
Features
- Easy mounting through a few hammer blows and minimum slip
- Impact Peg Protects threads from damage. This saves time when you assemble and dismantle
- With the long threads are balanced component tolerances. In addition, the FBN II for distance montages. This increases the flexibility
- With the standard anchoring depth reaches the FBN II highest load capacity. This means: less fixing points and smaller anchor plates
- Is the reduced anchoring depth used, reduces the hole depth and simplifies the installation.
