Fischer 510969 FRS 12 - 15 M8/M10 Pipe clamp FRS 12 - 15 M8/M10 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Pipe clamp
- Content
100 pc(s)
- Clamping range
12 up to 15 mm
- Range (max.)
15 mm
- Clamping range (min.)
12 mm
- Material (details)
FRS 12 - 15 M8/M10
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 484196 Fischer 510969 FRS 12 - 15 M8/M10 Pipe clamp FRS 12 - 15 M8/M10 100 pc(s)
Description

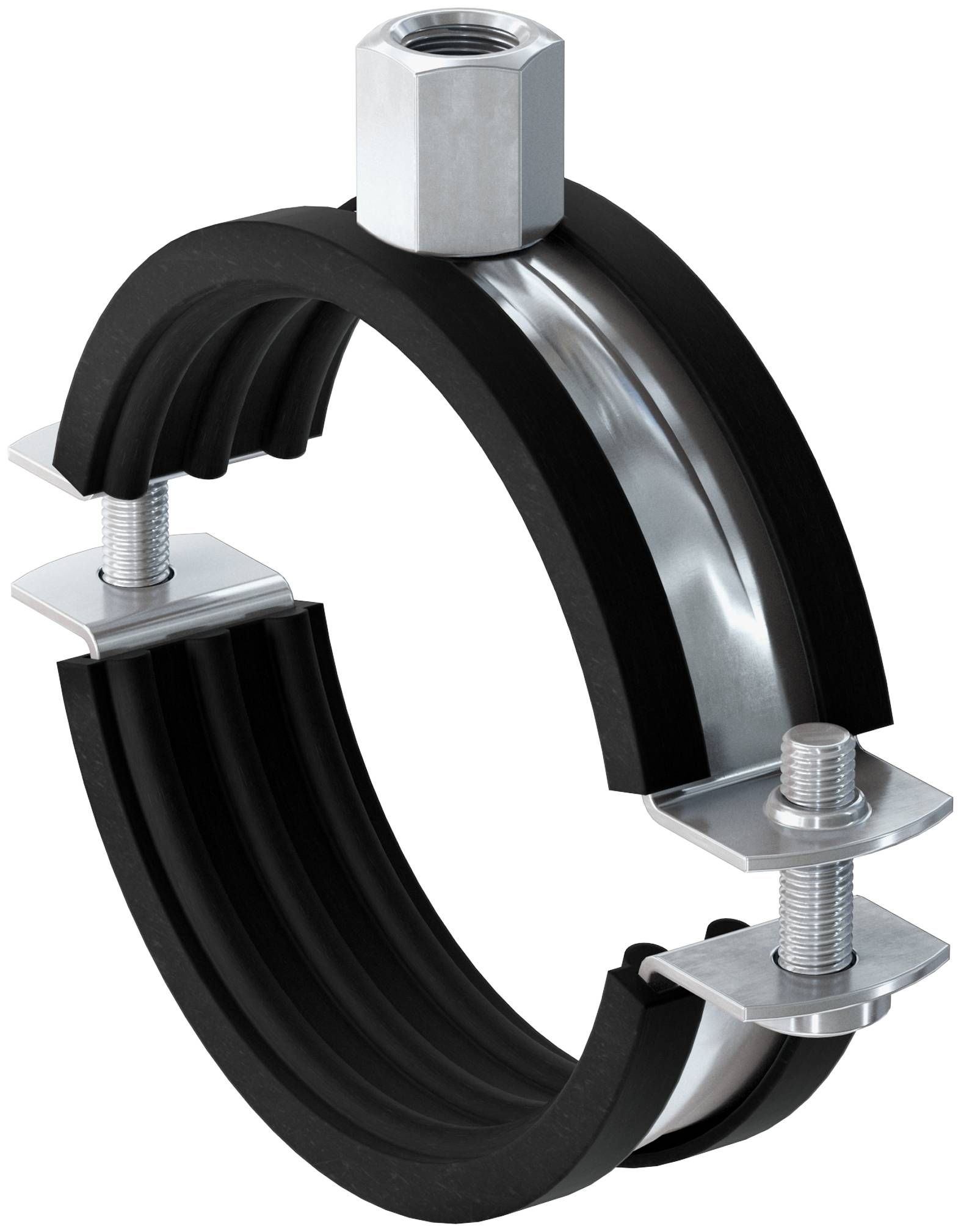

The fishermen pipe clamp FRS 12-15 m8/M10 for nominal size 1/4" allows easy mounting of pipes. The Fire Test Report guarantees lens tested function security. The two screw sustainability enables the optimized adjustment on the tube outer diameter. Sound insulation insert granted the sound reduction and prevents contact corrosion. Nut with combination thread M8/M10 for recording of threaded rods or stock screws. Pipe clamp screws with loss protection.
This text is machine translated.
This text is machine translated.
Features
- Fire protection test R 120
- Sound insulation insert
- Loss fuse of the screw
- Two screw for optimized adaptation to external pipe diameter.
