Fischer 512195 SolarFlat Blechdach 400 AL Roof rail
EAN:
Part number:
Item no:
Highlights & Details

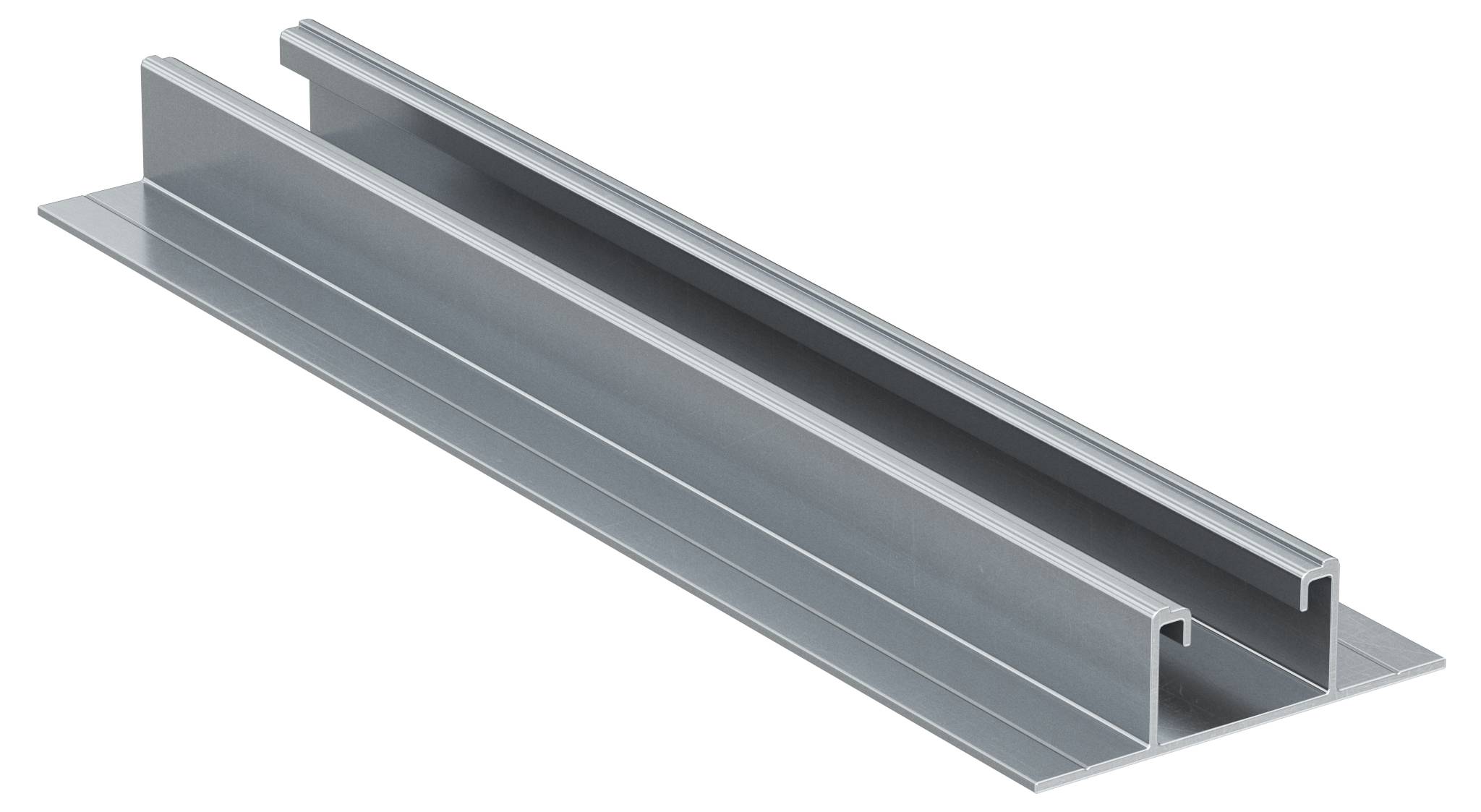

Fischer profile for SolarFlat metal roof 400 mm aluminum
- For the vertical installation of PV panels on trapezoidal plates
- Ideal for the optimization of the design in installations with larger floor plans
- Made of aluminum AW 6060 T6
- Determine the axle clearance of the attachments depending on the angle of the trapezoidal plate ribs and the snow and wind loads on site
- Glue a layer of butyl tape CG INT between the rail and the trapezoidal plate. Make sure the butyl tape is turned so that the aluminum layer is on the side on which the rail rests
- When fastening with ALG rivets, position the rail on the trapezoidal plate and drill the rail and sheet together with a 5.5 mm drill bit
- When mounting with 6x25 EPDM screw, only drill the Solar Flat metal roof rail in front of the position where the fastening is to take place. Position the pre-drilled rail on the plate and screw in the self-drilling screw by guiding it through the pre-drilled hole in the rail

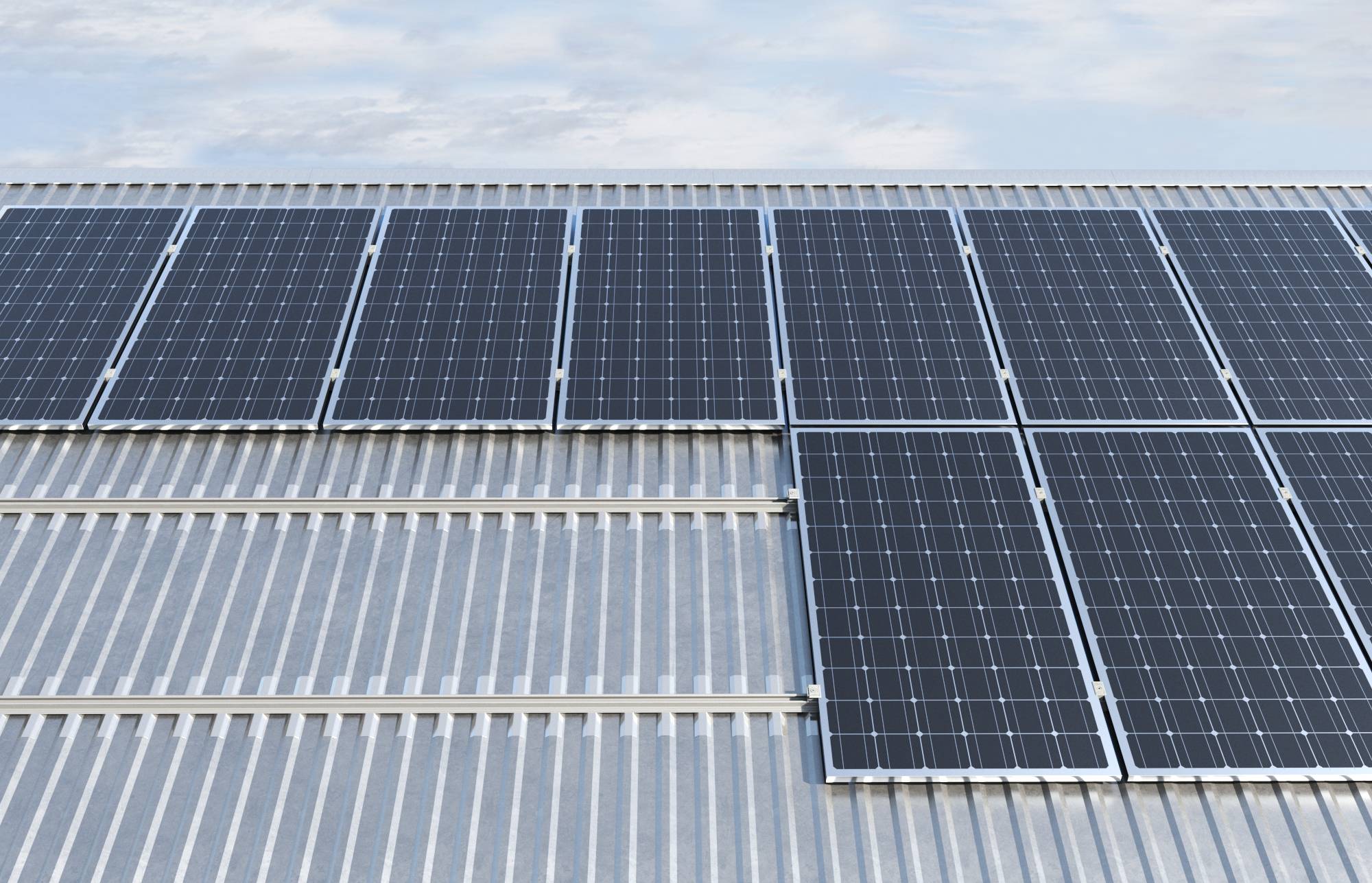

- Suitable for the installation of photovoltaic systems on trapezoidal plates
Technical specifications
- Weight in kg/m: 0,724 kg/m.
- Length 400 mm
- Profile cross-section: 2.68 cm²
- Moment of inertia: 2.19 cm4
- Moment of inertia: 11.9 cm4
- Torque 1.22 cc
- Torque 2.88 cc
- Product type
Roof rail
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3028782 Fischer 512195 SolarFlat Blechdach 400 AL Roof rail
Description

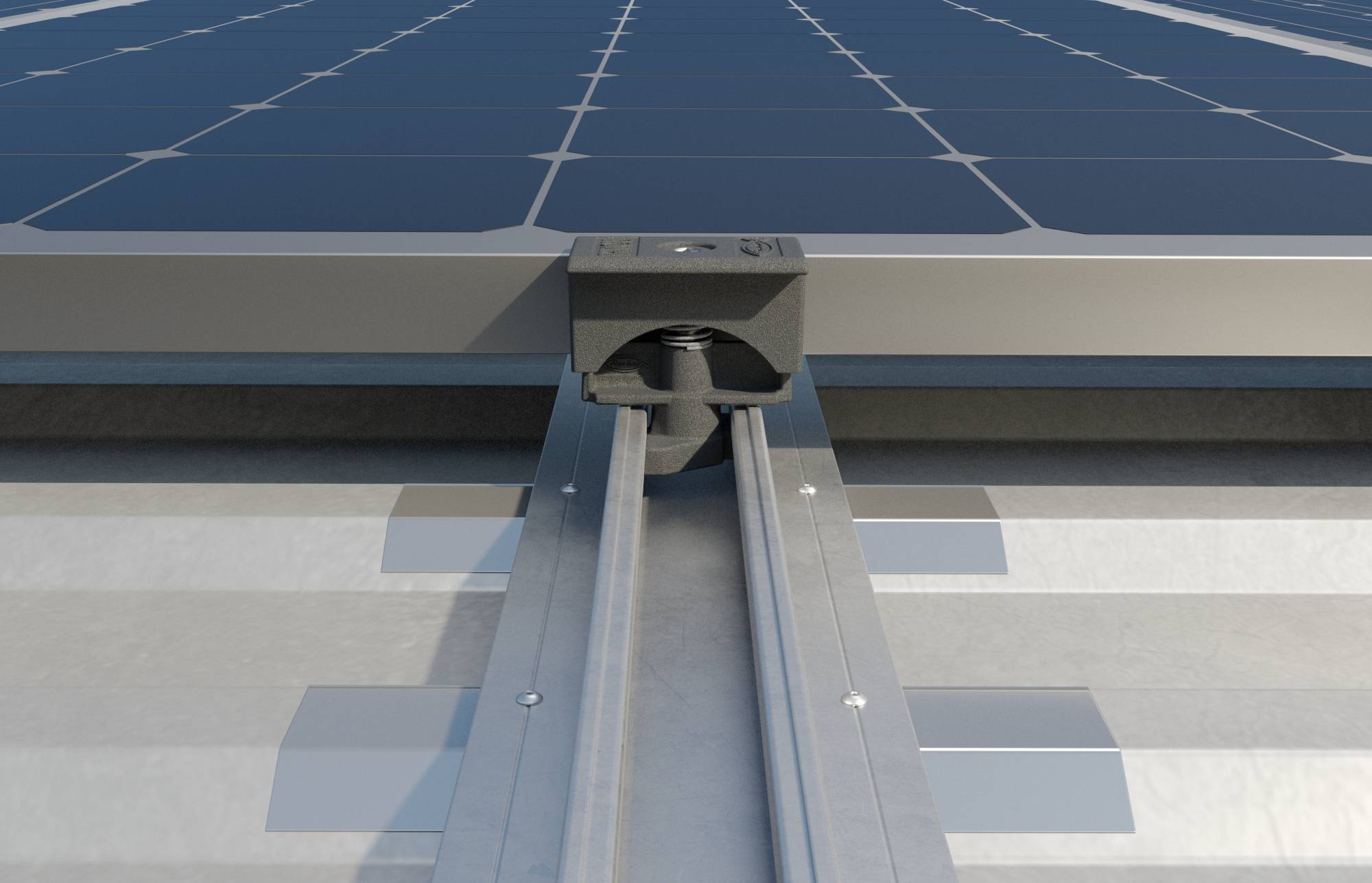

Fischer Solar Flat metal roof is an aluminum alloy rail for mounting photovoltaic systems on flat or inclined roofs with trapezoidal sheet and orthogonal mounting. Assembly is quick and easy through the use of ALG rivets. Moreover, the photovoltaic module can be quickly mounted both with the universal terminal PMU/PMU as well as with the pre-mounted terminals PM-F/PM-C. In short pieces for high flexibility. Pre-drilled parts for mounting with ALG rivets as well as with self-boring EPDM screws.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 50 PCs
