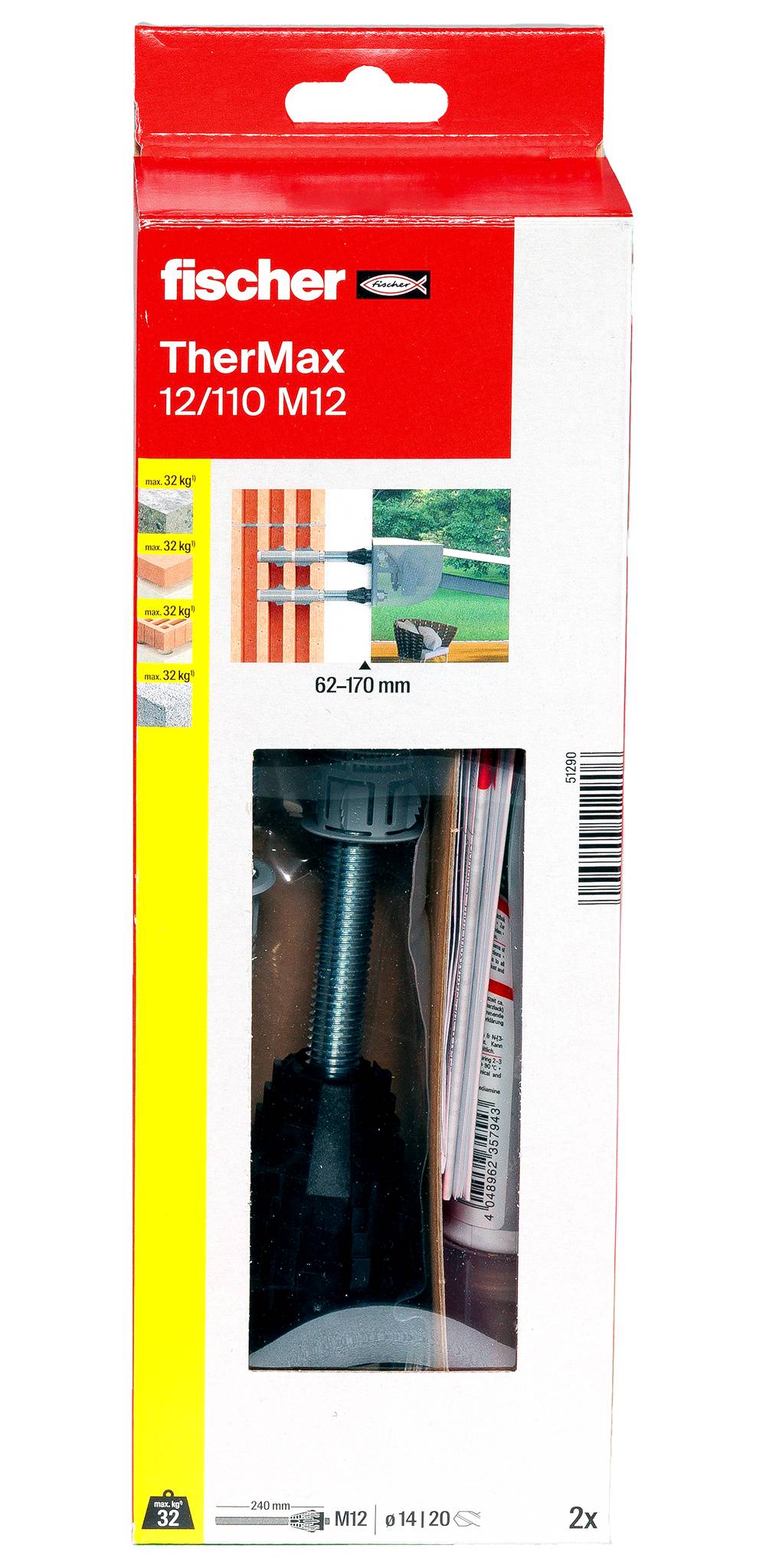

Fischer 51290 Spacer mounting kit 1 Set
EAN:
Part number:
Item no:
Product type
Spacer mounting kit
Material
Steel
Content
1 Set
Material properties
zinc galvanized
Suitable for
Cracked concrete, bricks, sand-lime solid bricks, hollow block stones made from lightweight concrete, vertically perforated brick, limestone perforated brick and aerated concrete.
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Technical specifications
- Product type
Spacer mounting kit
- Material
Steel
- Content
1 Set
- Material properties
zinc galvanized
- Suitable for
Cracked concrete, bricks, sand-lime solid bricks, hollow block stones made from lightweight concrete, vertically perforated brick, limestone perforated brick and aerated concrete.
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 893377 Fischer 51290 Spacer mounting kit 1 Set
Description
The Fishing Distance between mounting system thermax is a solution for mounting in the wall-mounted exterior without thermal bridges in the EWIS boards. The system consists of a special anchor rod from electro-galvanised with a glass-fiber reinforced cone, threaded pins and anchor sleeves for the mounting hole in the stone. In combination with the fishermen's high-performance mortar FIS V and fischer super bond mortar FIS SB is the system for a wide range of building materials. The Anchor rod with the glass fiber reinforced cone mills are self-cutting through the plaster in the insulating material. The Anchor rod is in the anchor sleeve with an injection mortar in the building materials. The cone at the head of the anchor rod interrupts the heat-bridge and takes the threaded pin made of stainless steel for the outer mounting. The attached to heavy loads such as awnings, air conditioners and thermax satellite systems in concrete, porous concrete and masonry from hole and solid bricks.
This text is machine translated.
This text is machine translated.
Features
- Recording of high loads by lock pressure-free anchoring
- Exact adjustment of the attachment unit without pressure points and damage to the EWIS boards
- No heat bridge through the anti-cold-cone
- Mounting without setting tool. This saves time
- Self-milling of plastic cone.
Scope of delivery
- 2 threaded rods M12, 2 anti-cold cones, 2 threaded pins M12-A4, A4 2 U-washers, 2 nuts A4, 2 perforated sleeve 20x130, 1 bit, 1 milling blade, 1 mounting instructions.
