Fischer 513703 Nail plug 100 mm 8 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Effective anchoring depth: 40 mm
- Min. Drill hole depth for through-hole mounting: 115 mm
- Max. Thickness of the mounting part: 60 mm
- (Ø)
8 mm
- Product type
Nail plug
- Material
Polyamide
- Length
100 mm
- Dim
(Ø x H) 8 mm x 100 mm
- Content
100 pc(s)
- Outside Ø
8 mm
- Features
incl. drive screw
- Material properties
zinc galvanized
- Height
100 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1878643 Fischer 513703 Nail plug 100 mm 8 mm 100 pc(s)
Description

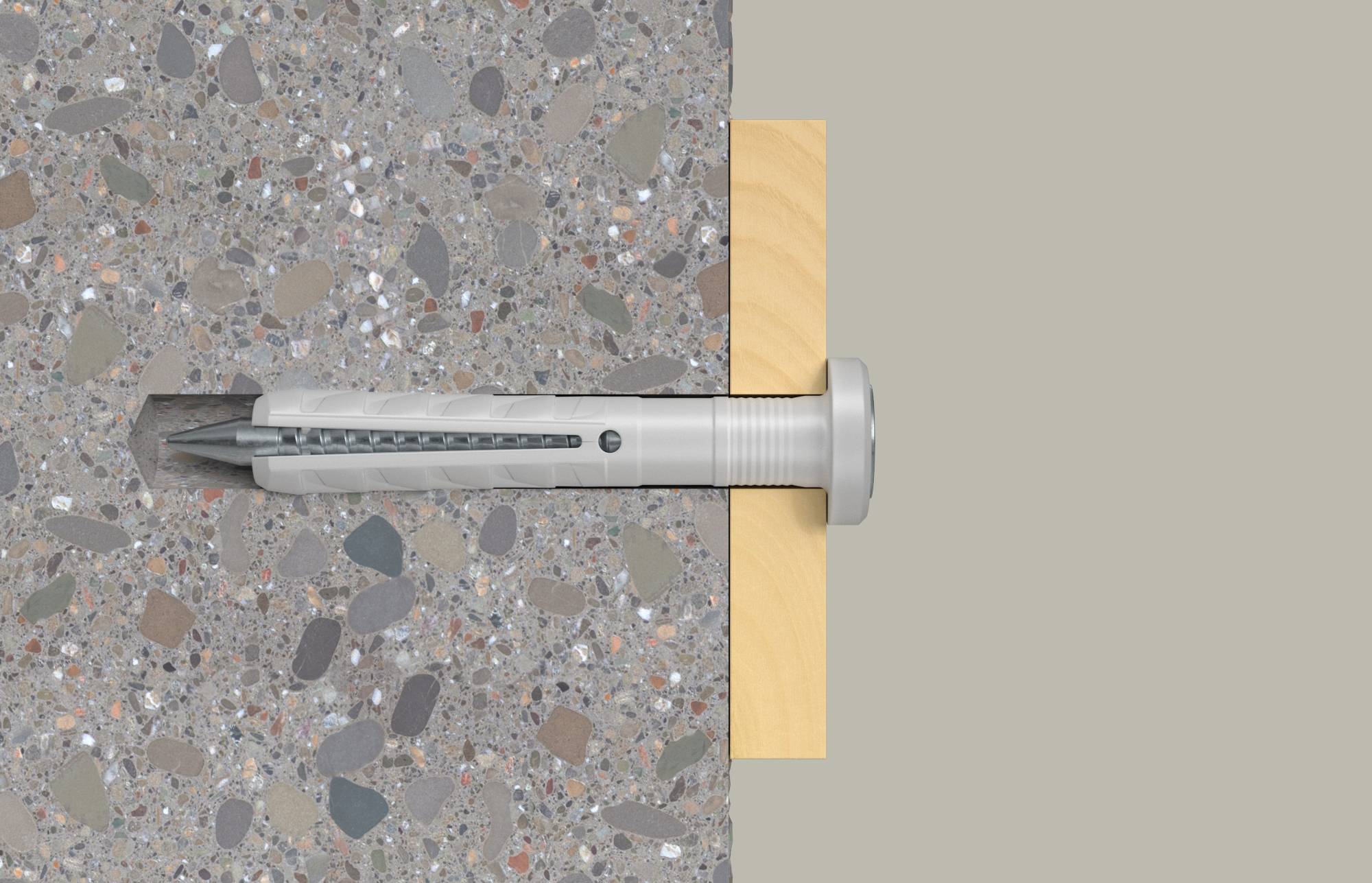

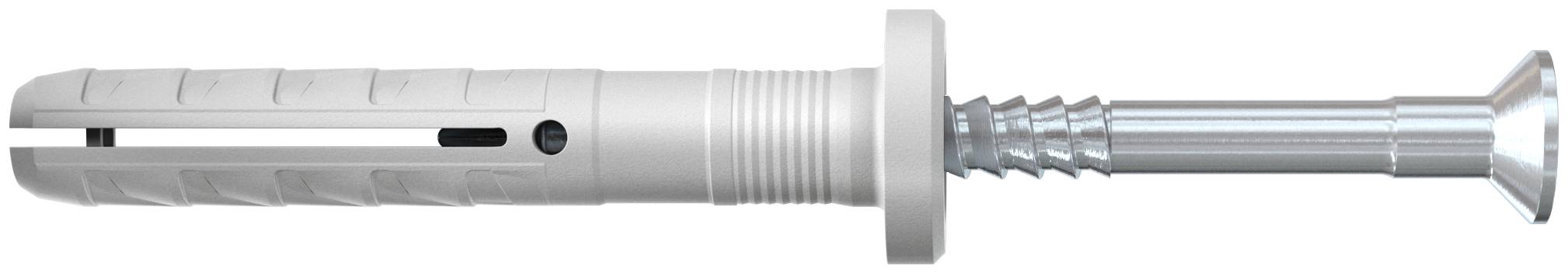

The fischer Nail plug N-F with flat head consists of a high-quality polyamide plugs and a galvanically zinc-coated screw. These are for a quick mounting pre-assembled. The fixing plug is in the time-saving through-hole mounting through the add-on was introduced. The breaking of the screw spread to the dowels sleeve on and anchored securely in the building materials. The fischer Nail plug N-F with flat head is ideal for the attachment of metal constructions in all building materials in the interior.
