Fischer 514241 VBS-M 8 x 265 A4 Cladding plug 265 mm 8 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
8 mm
- Product type
Cladding plug
- Material
Plastic
Steel
- Length
265 mm
- Dim
(Ø x L) 8 mm x 265 mm
- Suitable for
Cladding
- Content
100 pc(s)
- Features
incl. screw
- Material properties
rust-proof
corrosion-protected
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 484345 Fischer 514241 VBS-M 8 x 265 A4 Cladding plug 265 mm 8 mm 100 pc(s)
Description

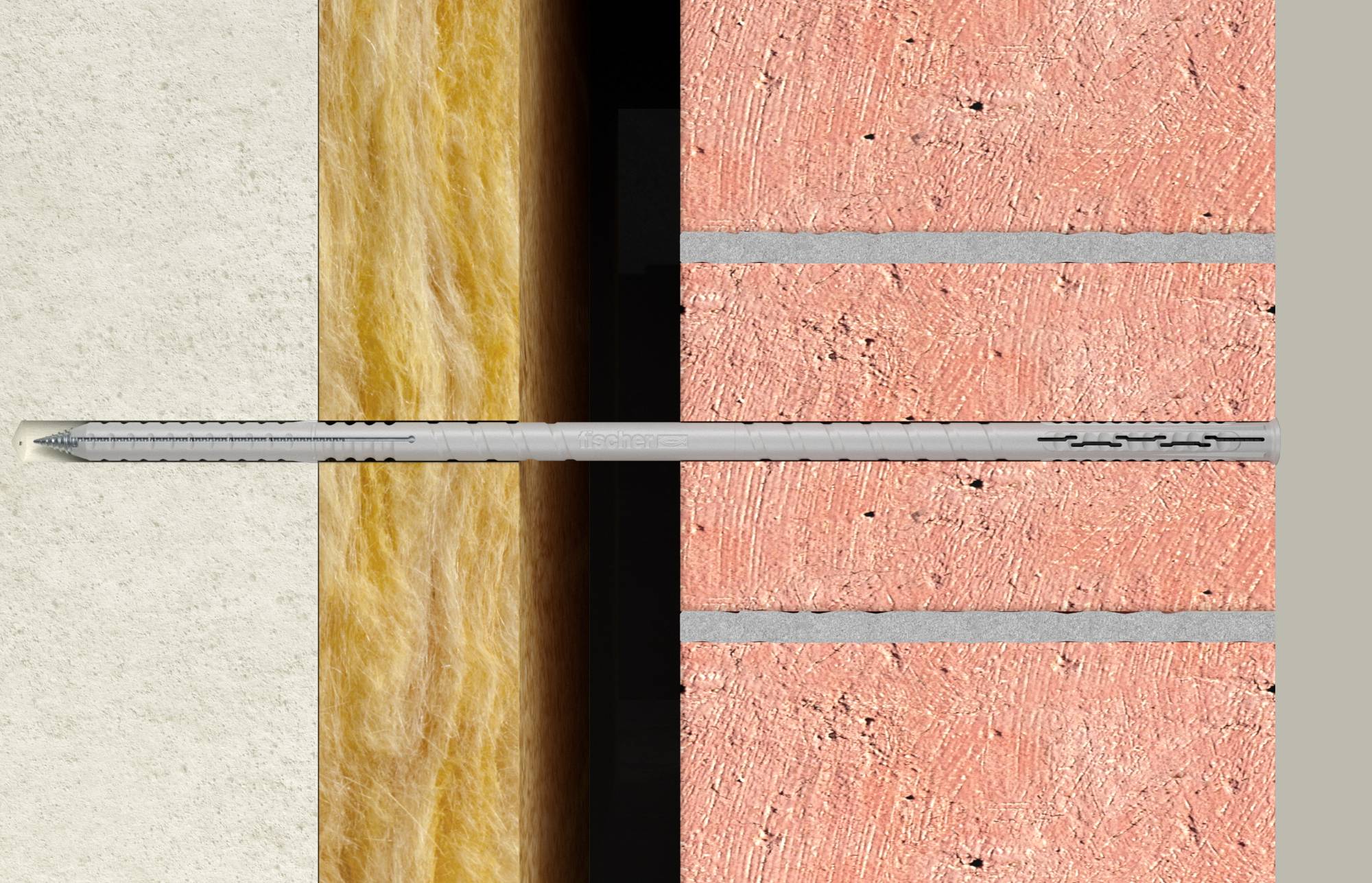

The fischer Cladding plug VBS-M is a mechanical system for subsequent bauaufsichtlich approved attachment of cladding with and without air layer. The system consists of a plastic sleeve with a two-fold spread zone and a screw made of non-rusting steel. The VBS-M is in the time-saving through-hole mounting in the bearing shell and the cladding. The two spread zones of the dowel create in the bearing cup and in the pre-cup a secure attachment. It is only when the dowels into the support shell attacked, will be shown in the cladding fixed. The fischer Cladding plug VBS-M is especially for the fast verb end redevelopment of zweischaligem masonry, to the later a thermal insulation composite system is installed.
This text is machine translated.
This text is machine translated.
Features
- High flexibility through approved attachment in the joints and in the verb end-stone
- No frost and corrosion damage from Wasserabtropfwendel
- Invisible installation by later available of the borehole
- Recessed or surface flush mounting through a small Dowel border and a small screw head possible
- Economic mounting because of low anchoring depth.
