Fischer 514257 Thermax 10/200 M10 Spacer fittings 270 mm 22 mm 20 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
22 mm
- Product type
Spacer fittings
- Material
Plastic
Steel
- Length
270 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 22 mm x 270 mm
- Suitable for
Concrete
Cored bricks
Flintlime bricks
Flintlime hollow bricks
Bricks
- Content
20 pc(s)
- Material properties
fibreglass-reinforced
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 484362 Fischer 514257 Thermax 10/200 M10 Spacer fittings 270 mm 22 mm 20 pc(s)
Description

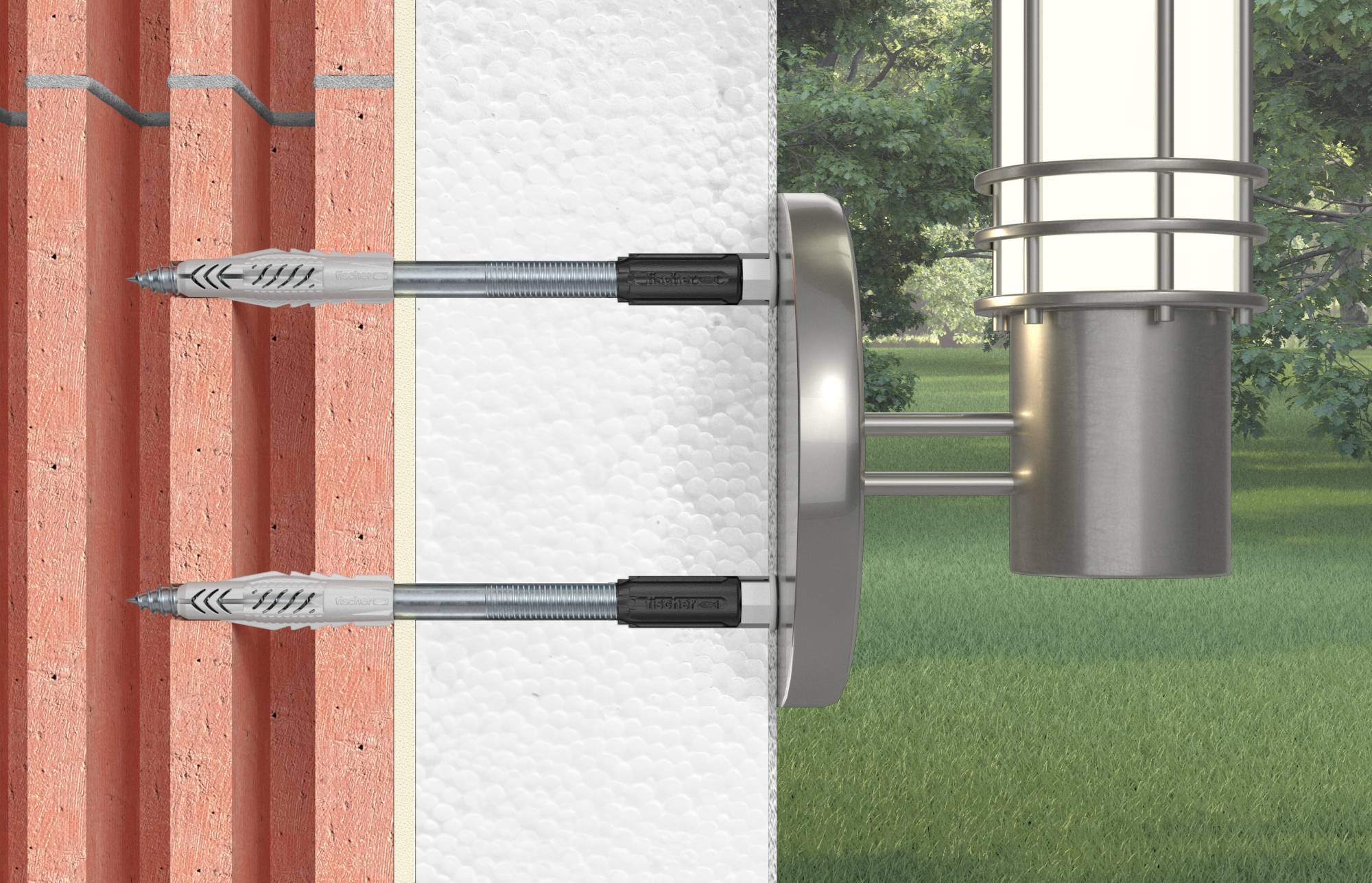

The Fishing Distance between mounting system Thermax 10 is a solution for mounting in the wall-mounted exterior without thermal bridges in the EWIS boards. The hanger bolt with the glass fiber reinforced cone mills are self-cutting through the plaster in the insulating material. The hanger bolt is of the assembly in the UNIVERSAL DOWEL UX turned and thus anchored safely in the building material. The anti-cold-cone at the head of the hanger bolt interrupts the heat-bridge and take the outer mounting. The attached light loads such as lamps, letter boxes or thermax lightning in concrete, porous concrete and masonry from hole and solid bricks.
This text is machine translated.
This text is machine translated.
Features
- Exact adjustment of the attachment unit without pressure points and damage to the EWIS boards
- Suitable for all materials.
- No heat bridge through the anti-cold-cone
- Mounting without setting tool. This saves time
- Self-milling of plastic cone.
