Fischer 514869 Nail plug 30 mm 6 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Effective anchoring depth: 30 mm
- Min. Drill hole depth for through-hole mounting: 45 mm
- Max. Thickness of the mounting part: 1 mm
- (Ø)
6 mm
- Product type
Nail plug
- Length
30 mm
- Screw diameter
6 mm
- Dim
(Ø x L) 6 mm x 30 mm
- Content
100 pc(s)
- Outside Ø
6 mm
- Features
incl. drive screw
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1879237 Fischer 514869 Nail plug 30 mm 6 mm 100 pc(s)
Description

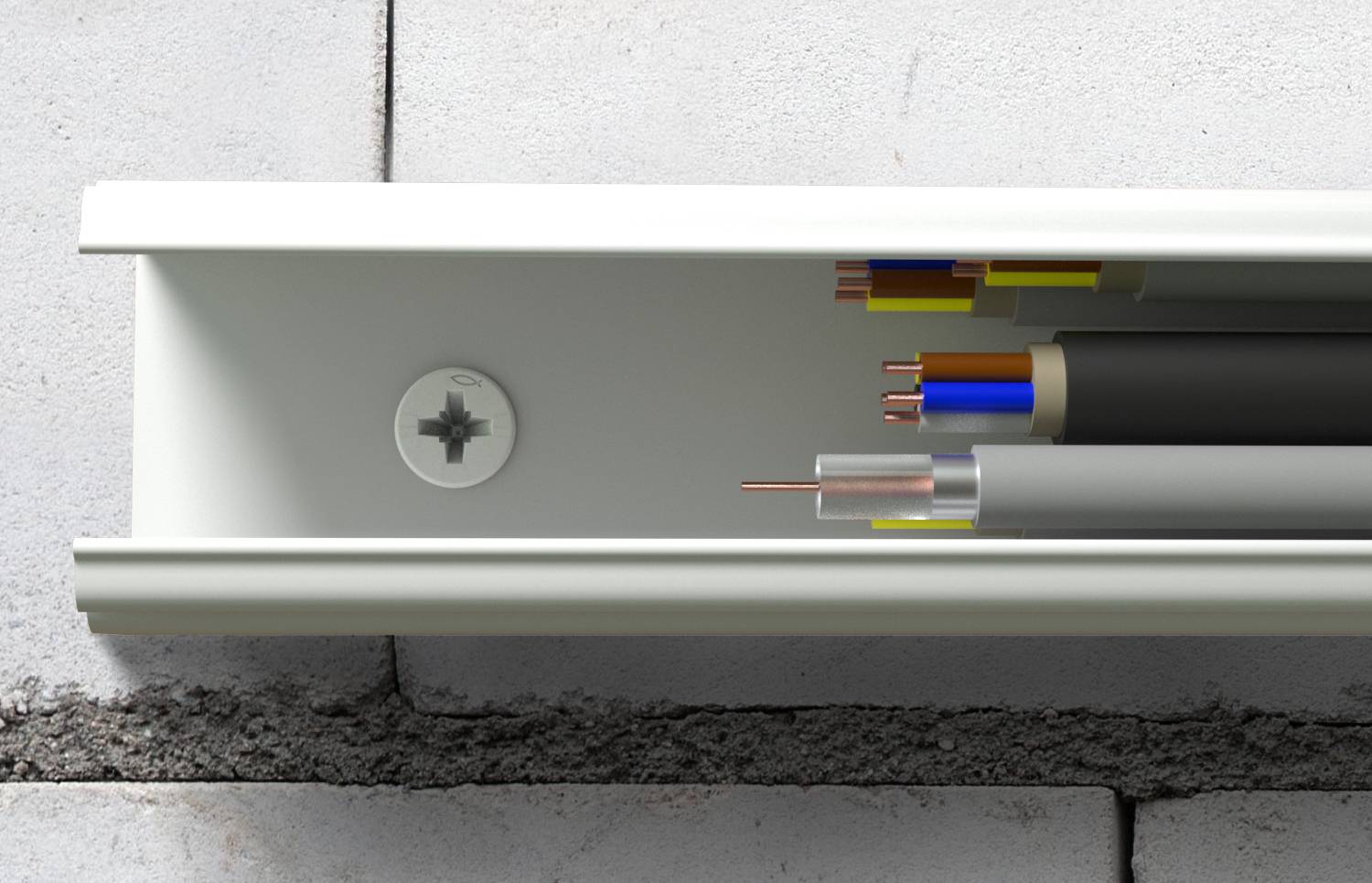

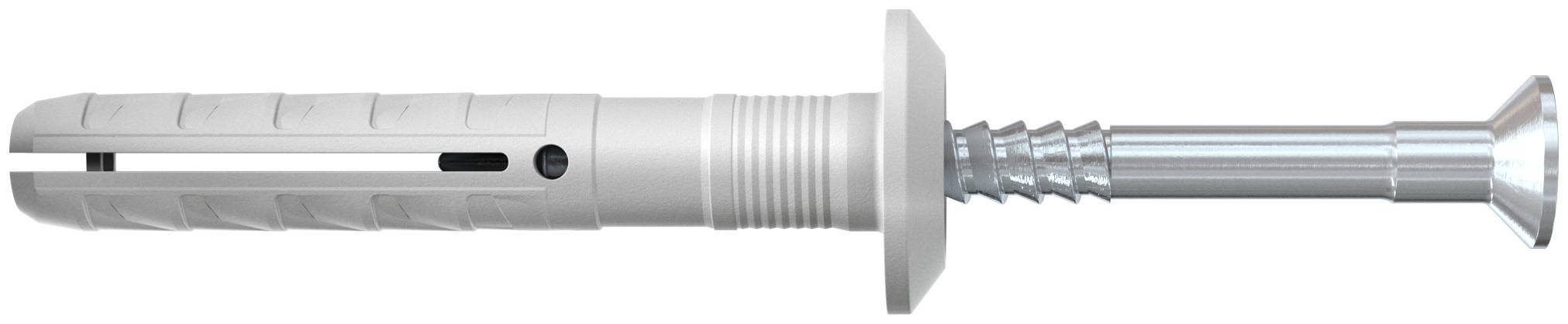

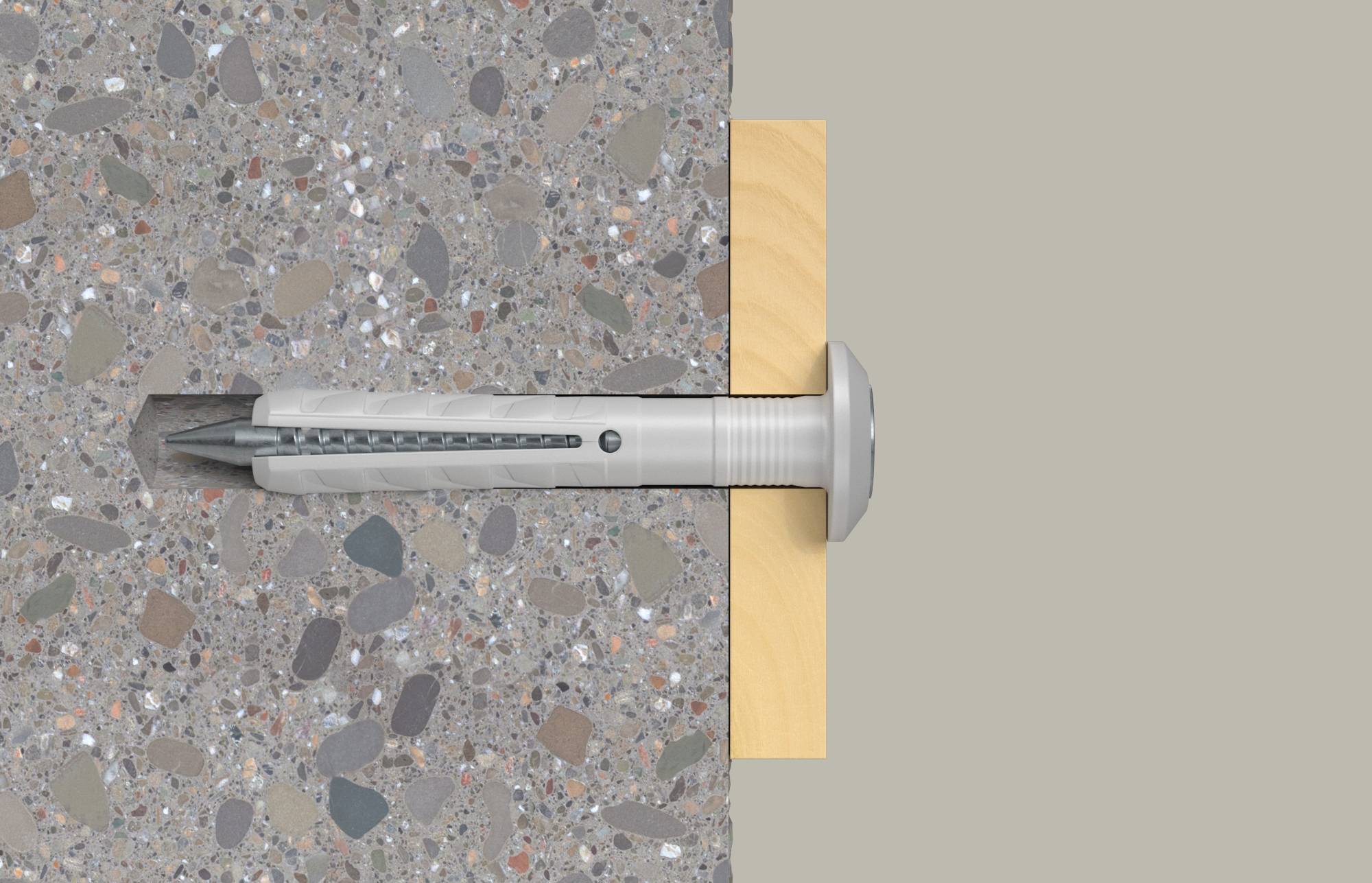

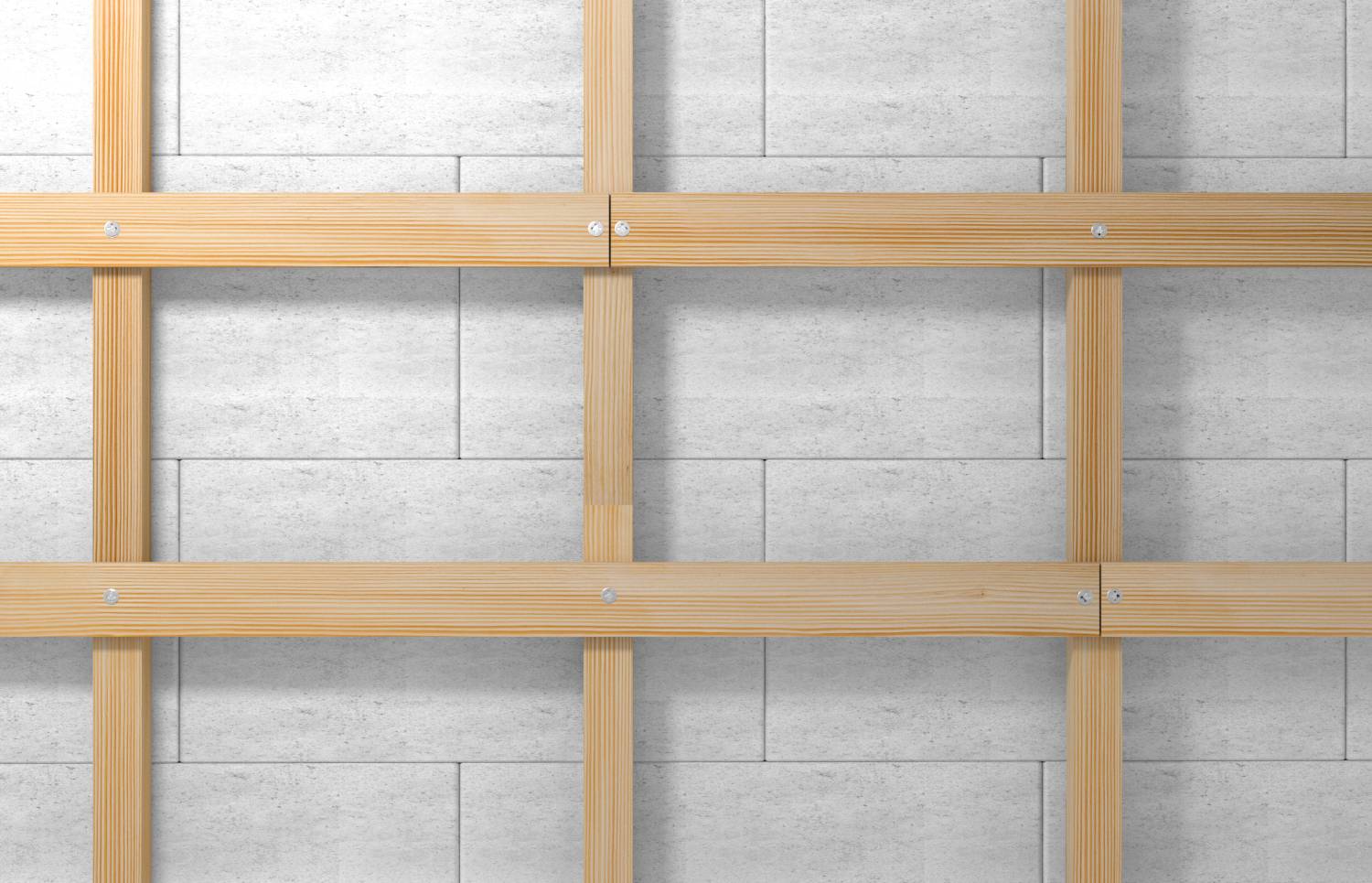

The fischer Nail plug N-P with mushroom head consists of a high-quality polyamide plugs and a nail screw from galvanically zinc-plated steel. These are for a quick mounting pre-assembled. The fixing plug is in the time-saving through-hole mounting through the add-on was introduced. The breaking of the screw spread to the dowels sleeve on and anchored securely in the building materials. The fischer Nail plug N-P with mushroom head is ideal for the attachment of thin add-on parts and add-on parts with long holes, especially in the viewing area (interior).
