Fischer 518952 MW SA A2 Elbow piece
EAN:
Part number:
Item no:
Highlights & Details

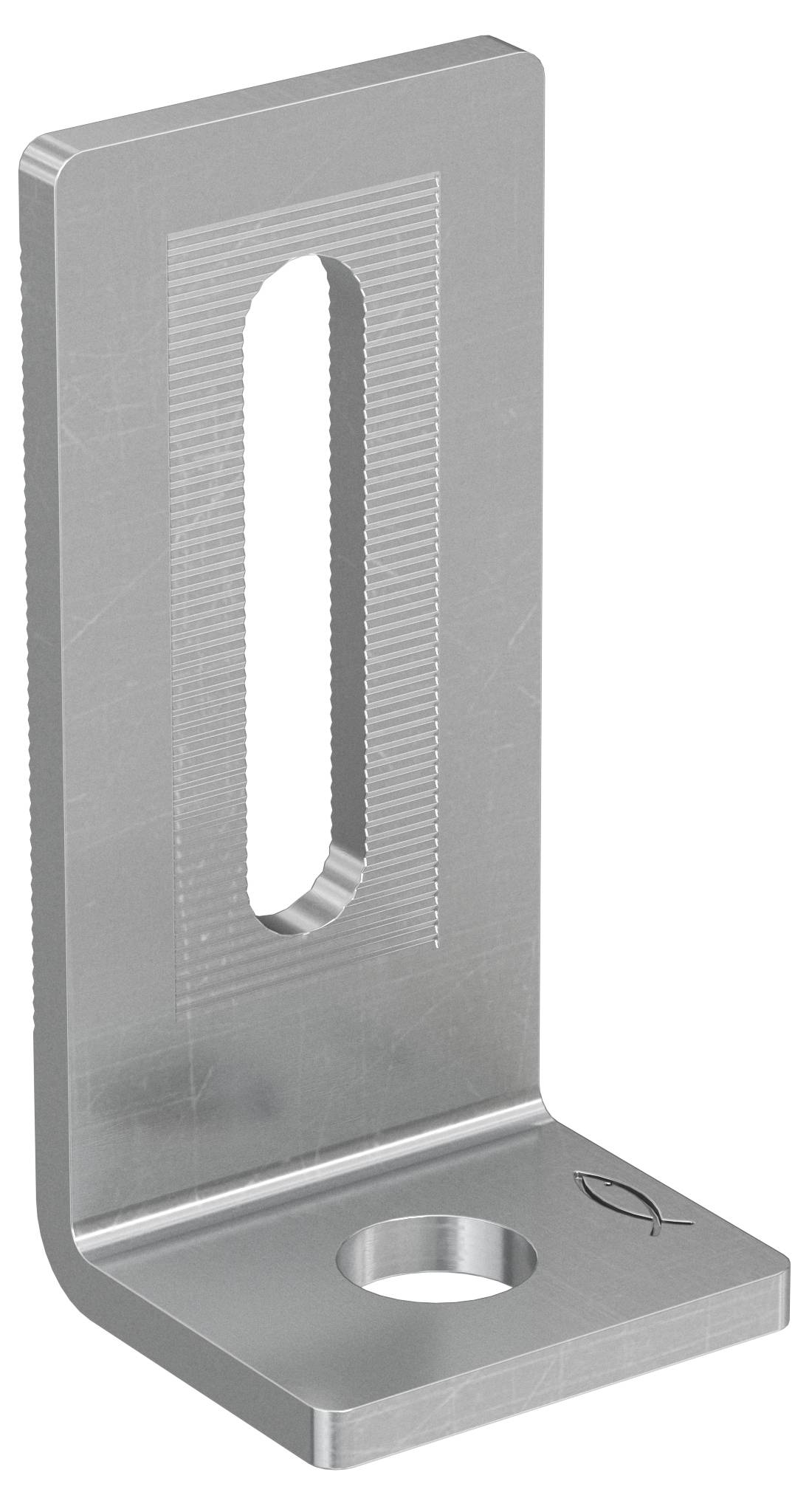

Fischer MW SA A2 stainless steel angle bracket
- Holder for connecting solar rails with STSI or STSR stock screws or for connecting two overlapping and 90° crossed solar rails
- Slotted hole in vertical part
- Version with long slot
- A2 stainless steel

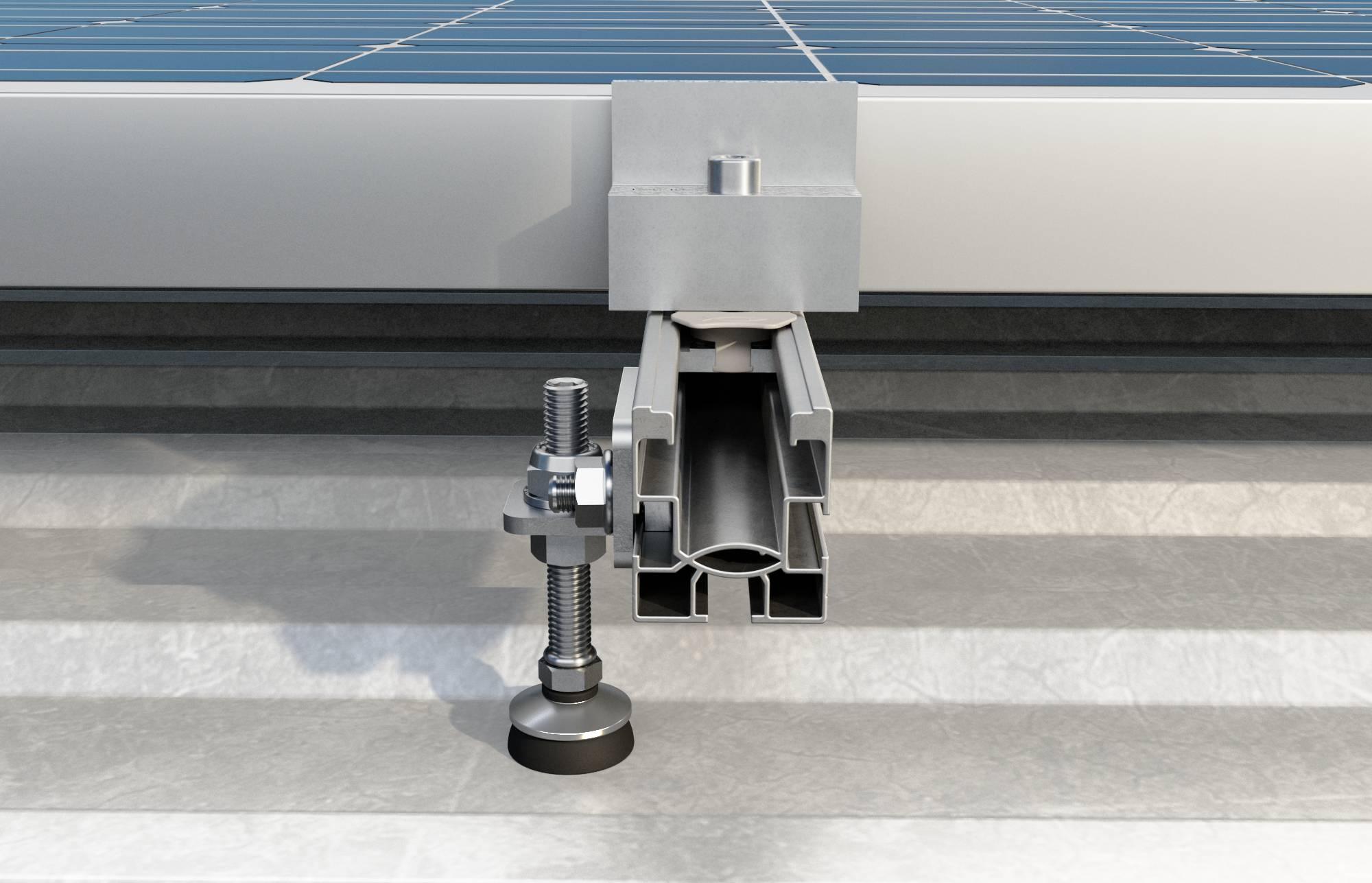

- Connection with STRS or STSI stock screws:
- Insert and tighten the MW angle bracket between the two nuts of the STSR/STSI stock bolt
- Connect the solar rail through the oblong hole with the screw SKS M 8 and the flange nut MU FM 8 with the MW angle bracket
- Use the two nuts of the STSR/STSI stock screw to adjust the position of the MW angle bracket
- Crossing of two solar rails:
- Connect the MW angle bracket with the lower solar rail with the FCN AL hammer head nut and the SKS M 8 screw
- Secure the upper solar rail to the angle bracket using the oblong hole with the SKS M 8 screw and the flange nut MU FM 8
- Suitable for:

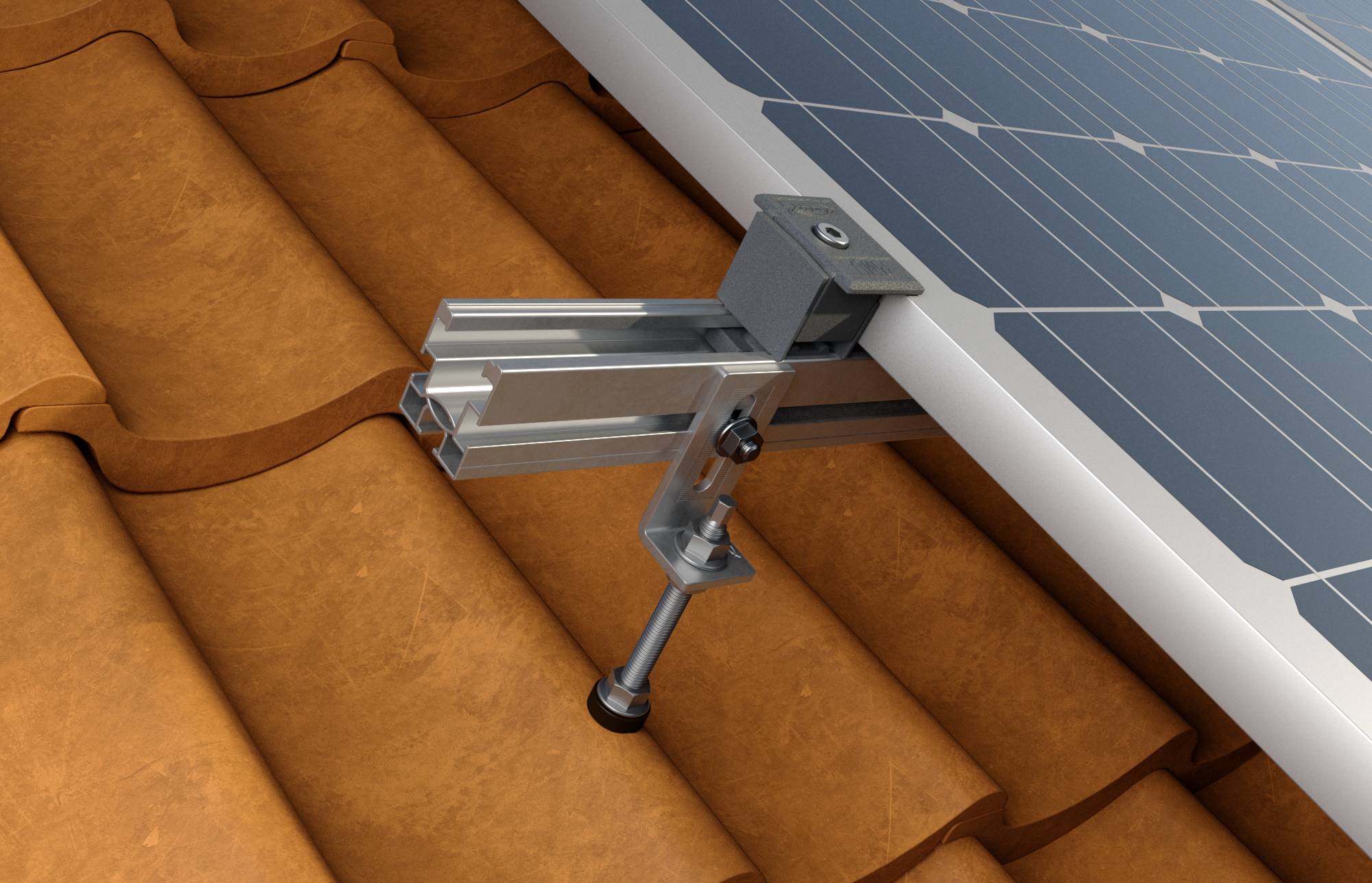

- Corrugated sheet or fiber cement coverings
- For connection to:
- Solar light rail
- SolarFish track
- SolarMid rail
Technical specifications
- Dimensions 9 x 45 mm
- Hole diameter: 12.5 mm
- Thickness: 4 mm
- Product type
Elbow piece
- Weight
120 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3028786 Fischer 518952 MW SA A2 Elbow piece
Description
MW SA A2 is the angle of A2 stainless steel for connecting stock screws with solar rails or for connecting two overlapping solar rails, crossed by 90°. The slotted hole in the vertical part enables the height adjustment of the solar rail Quick mounting through the lower hole and simple setting through the lateral slotted hole. The connections with the rail are provided with non-slip knurled nuts for a secure fixing.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 pcs.
