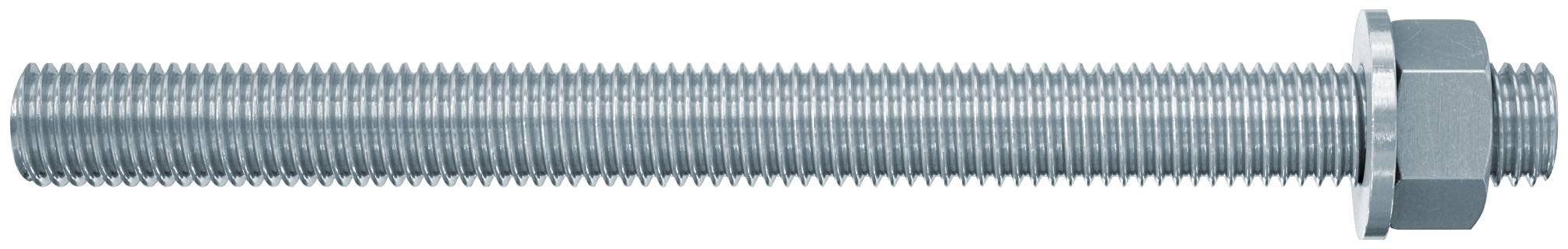

Fischer 519406 FIS A M 20 x 290 Anchor rod 290 mm 22 mm 10 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
22 mm
- Product type
Anchor rod
- Material
Steel
- Length
290 mm
- Screw diameter
20 mm
- Dim
(Ø x L) 22 mm x 290 mm
- Content
10 pc(s)
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1878429 Fischer 519406 FIS A M 20 x 290 Anchor rod 290 mm 22 mm 10 pc(s)
Description
the fischer FIS A anchor rod is made of galvanized steel of steel grade 5.8. The anchor rod is a system component for the various fischer injection mortar. In combination with the injection mortars, the fischer anchor rod is suitable for all surfaces or approved. For the maximum load capacity of the system, thorough hole cleaning is recommended. The system is suitable for the attachment of steel constructions, stairs and machines in the interior.
Functions:
The FIS A anchor rod is suitable for pre-insertion and through-hole mounting.
The FIS A anchor rod is inserted into the drill hole by hand with a slight rotation up to the bottom of the drill hole.
This text is machine translated.
Functions:
The FIS A anchor rod is suitable for pre-insertion and through-hole mounting.
The FIS A anchor rod is inserted into the drill hole by hand with a slight rotation up to the bottom of the drill hole.
This text is machine translated.
Features
- The universal solution for various fischer injection mortar. For a manageable assortment and simplified storage
- in combination with the various fischer injection mortar approved for anchoring in cracked and uncracked concrete, solid stone masonry, perforated masonry and aerated concrete
- Optimal load adjustment through variable anchoring depth. This reduces assembly and material costs
- for anchors with injection mortars FIS SB, FIS EM Plus, FIS V, FIS VL, assembly mortar and assembly mortar GREEN
- approval ETA-02/0024, ETAG 001-5, DOP No. 0007, DOP No. 0072, DOP No. 0094, DOP No. 0094 - EN, DOP No. 0756-CPD-0301, ESR-3572
