Fischer 519784 30-50 PM U AL End clamp
EAN:
Part number:
Item no:
Highlights & Details

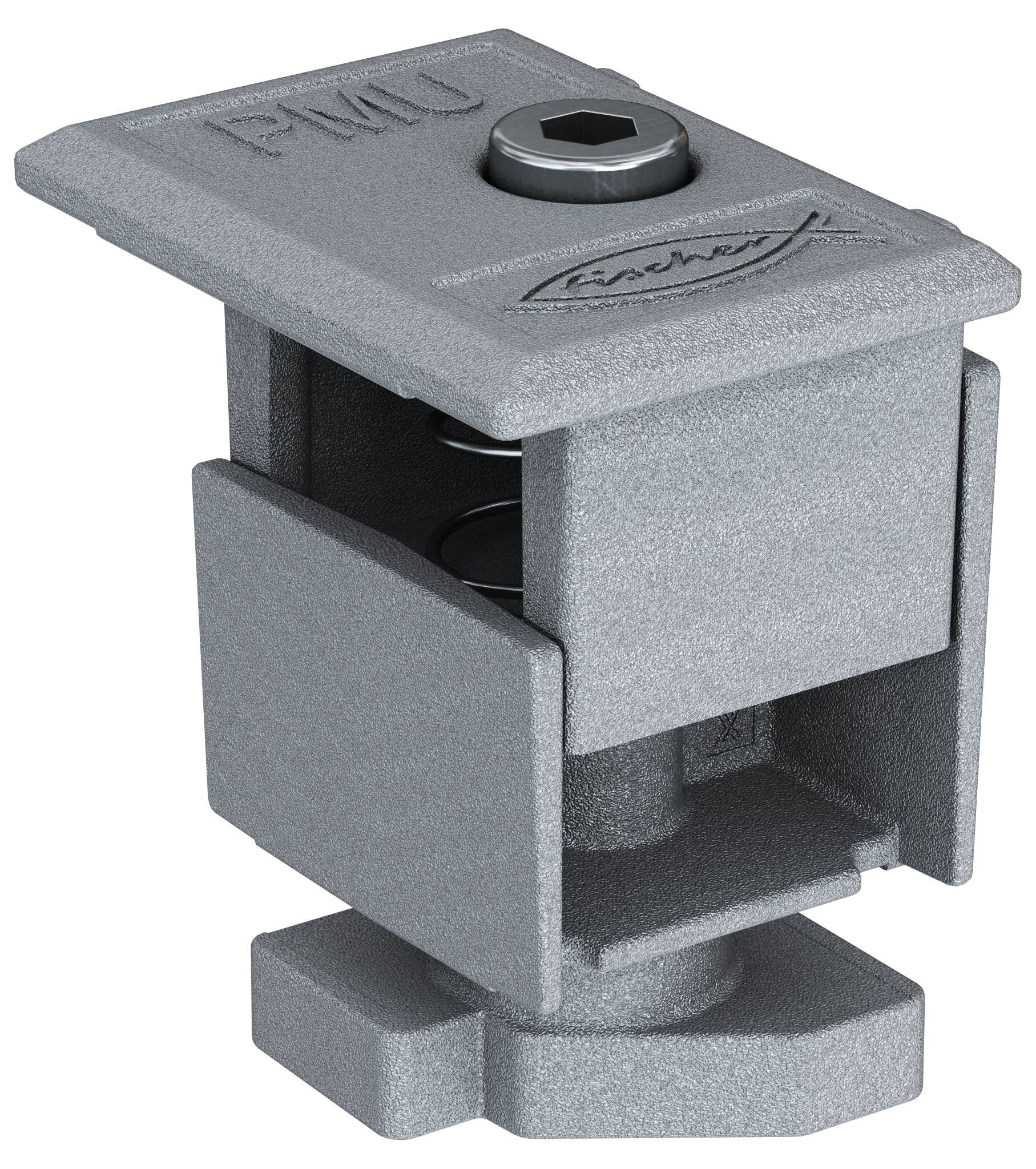

Fischer universal terminal pre-assembled PM U AL 30-50 aluminum
- Can be used universally for panels with a thickness of 30 to 50 mm
- Quick insertion in the profile
- Flat and with countersunk screw to prevent formation of shadows
- Made of aluminum EN FROM 46100
- Insert the lower part of the pre-assembled universal terminal PM U into the upper groove of the rail
- Turn the pre-assembled universal terminal PM U clockwise to use it as a terminal and counterclockwise to use it as a center terminal
- Secure the PV module by applying a tightening torque of 10 Nm to the socket head screw (TCEI)
- Suitable for:

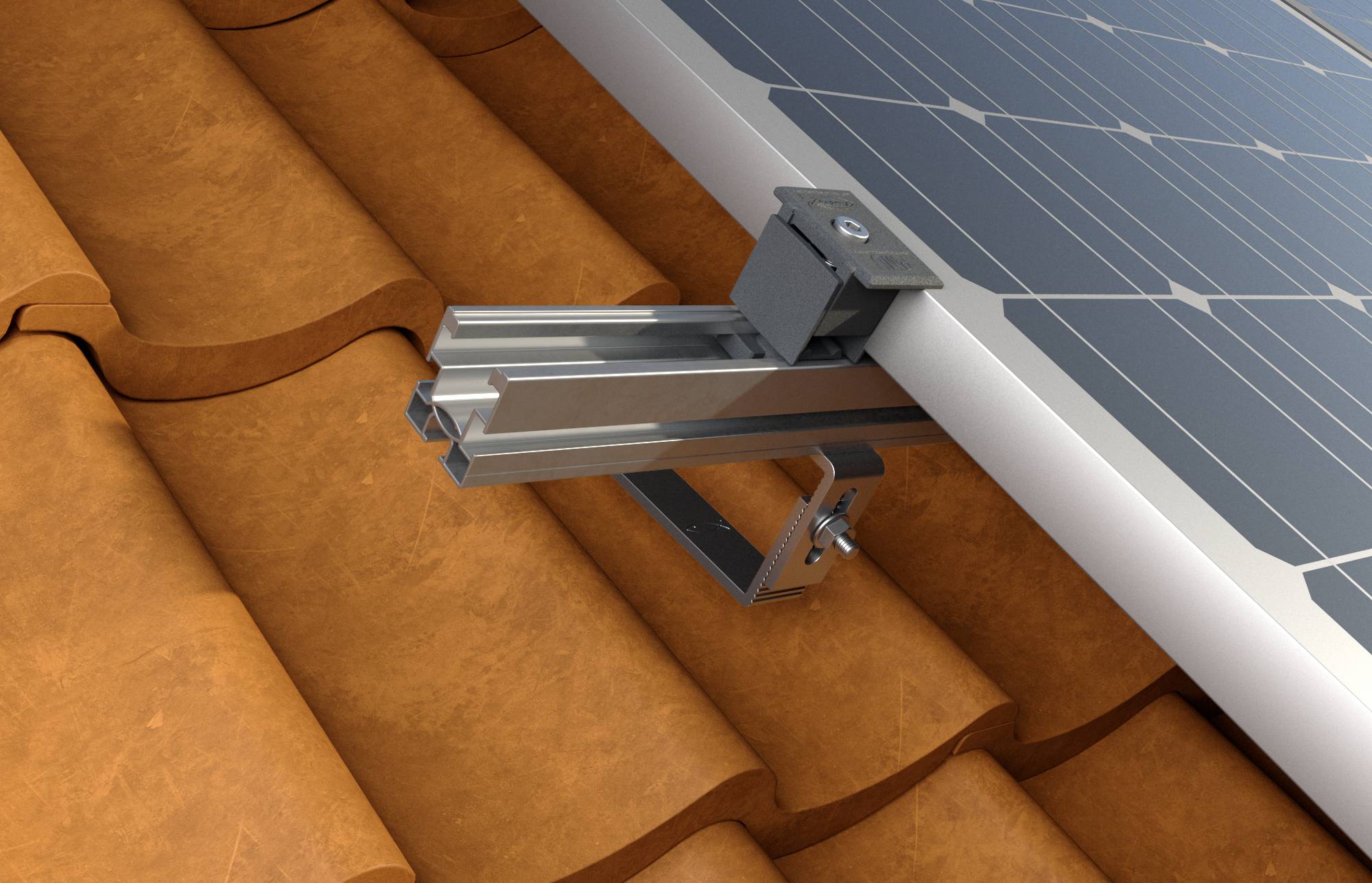

- Pitched Roof Systems with Hook
- Flat roof systems with triangular frames

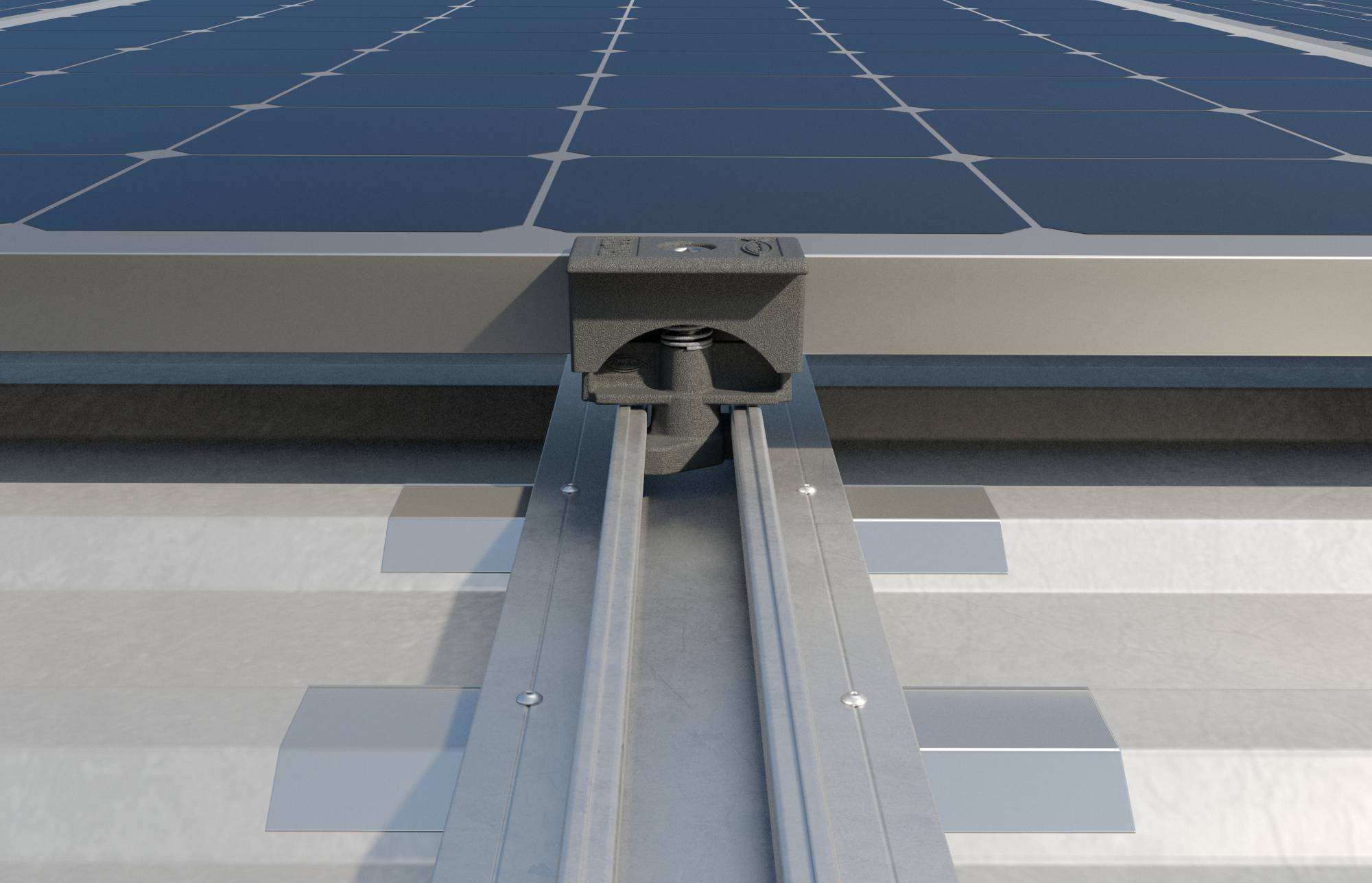

- Trapezoidal sheet metal roof systems
- Corrugated sheet-metal roof systems
- Special constructions

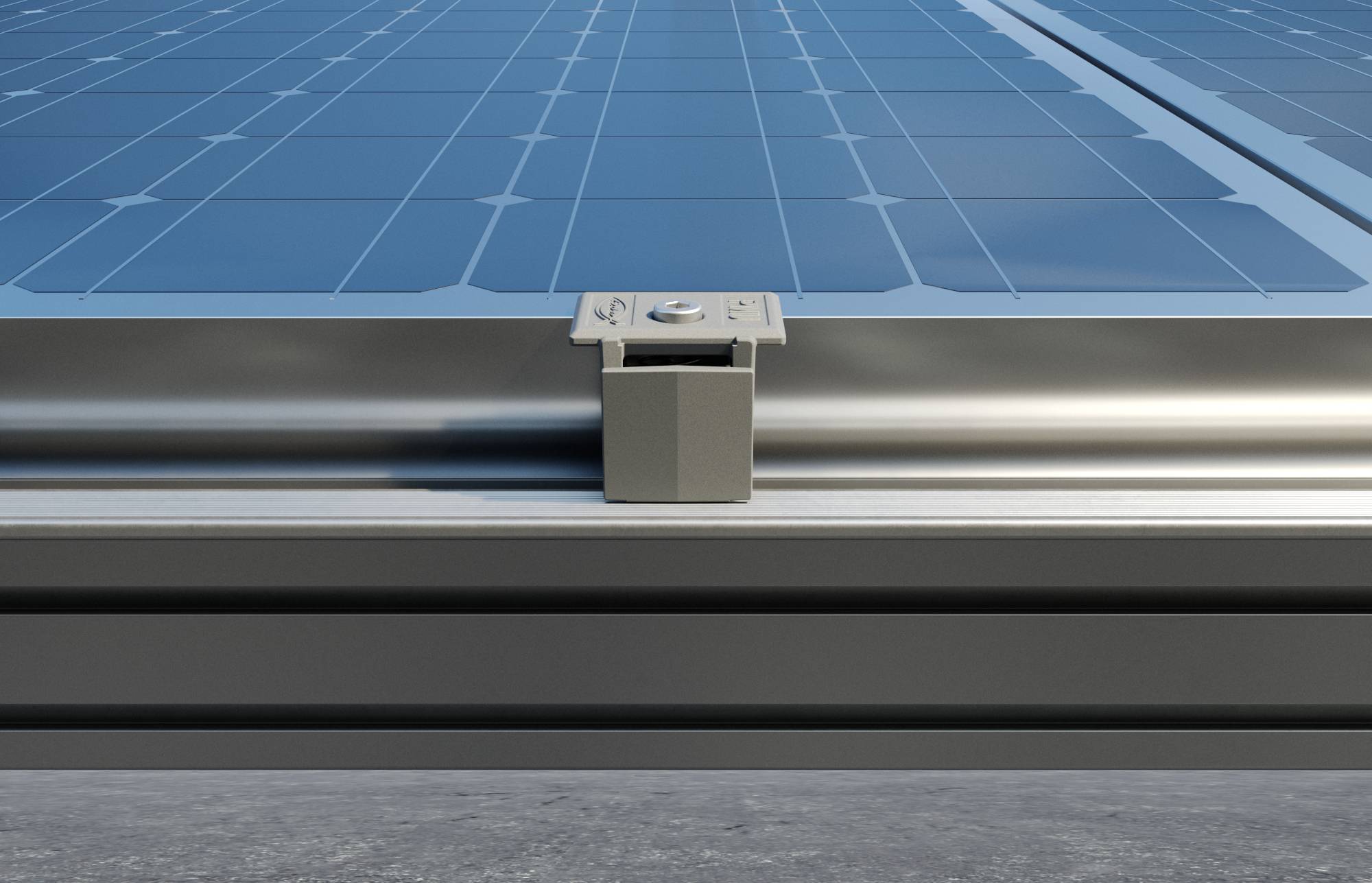

- For fixing PV modules on rails:
- Solar light
- SolarFish
- SolarMid
- SolarMetal tin roof
- SolarFlat metal roof
Technical specifications
- Thread: M8
- Installation torque: 10 Nm
- Module thickness 30 - 50 mm
- Width across flats (inner hexagonal): 6 mm
- Screw length 40 mm
- Product type
End clamp
- Weight
120 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3028787 Fischer 519784 30-50 PM U AL End clamp
Description
PM U is the universal terminal for PV panels with a thickness of 30 to 50 mm, which can be used both as a center terminal and an end terminal. PM U can be quickly inserted into the profiles by simply turning it. Compatible with SolarLight, SolarFish, SolarMid, Solar metal roof profiles The pre-mounted universal terminal PM U can fasten all photovoltaic modules with a thickness of 30 mm to 50 mm. The pre-assembled universal terminal PM U can be used as terminal block as well as also as center terminal. Thanks to the intelligent nut, the pre-assembled universal terminal PM U can be quickly hooked and locked at any point of the mounting rail. The recessed screw in the element prevents shading of adjacent modules. Thanks to the spring, the pre-assembled universal terminal PM U remains raised during the tightening phases. The pre-assembled universal terminal PM U does not need any additional elements (e.g. screws, seals, nuts).
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 pcs.
