Fischer 520112 PM C 33-39 AL sw Inline clamp
EAN:
Part number:
Item no:
Highlights & Details

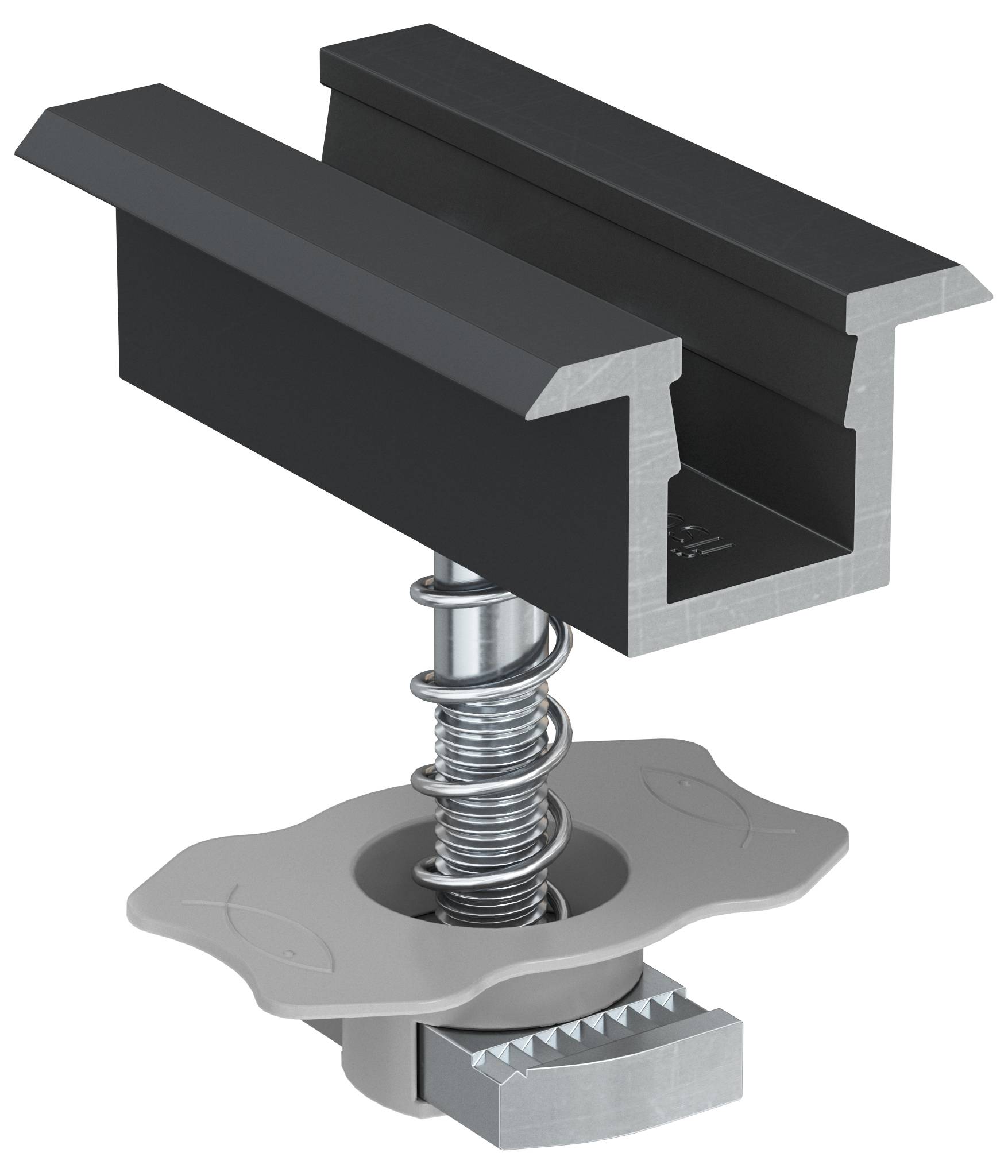

Fischer center clamp pre-assembled PM C 33-39 AL black
- Pre-assembled
- Hammer nut with clip for quick insertion into the rail
- Integrated spring to facilitate the positioning of the PV panel
- Terminal and nut made of aluminum AW 6060 T66, screw made of stainless steel A2-70, clip made of PA 6

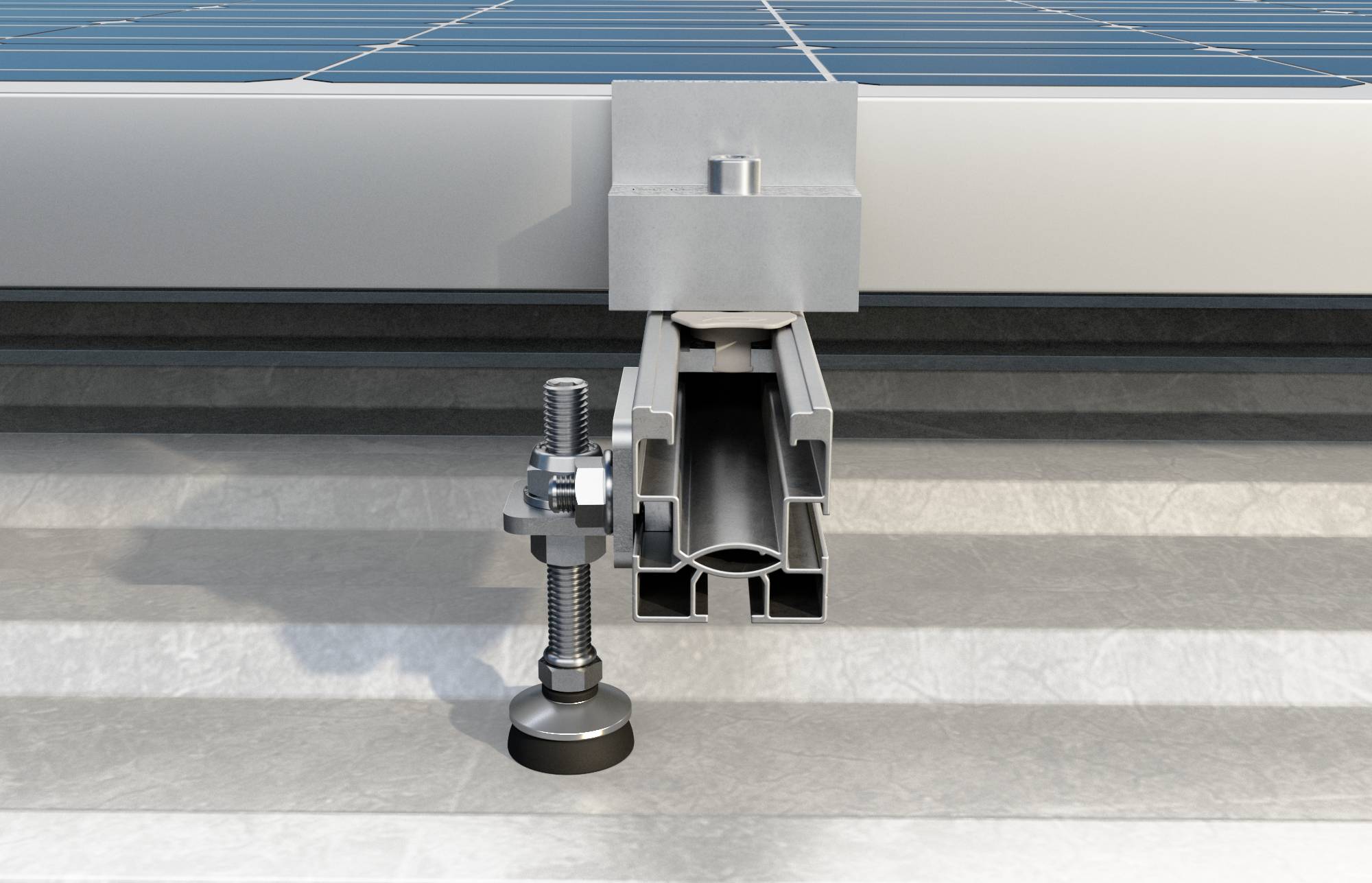

- Insert the lower part of the PM C center terminal into the upper groove of the rail
- Turn the pre-assembled PM C center terminal 90° clockwise
- Secure the PV module to the Allen screw (TCEI) with a tightening torque of approx. 10 Nm.
- Suitable for:

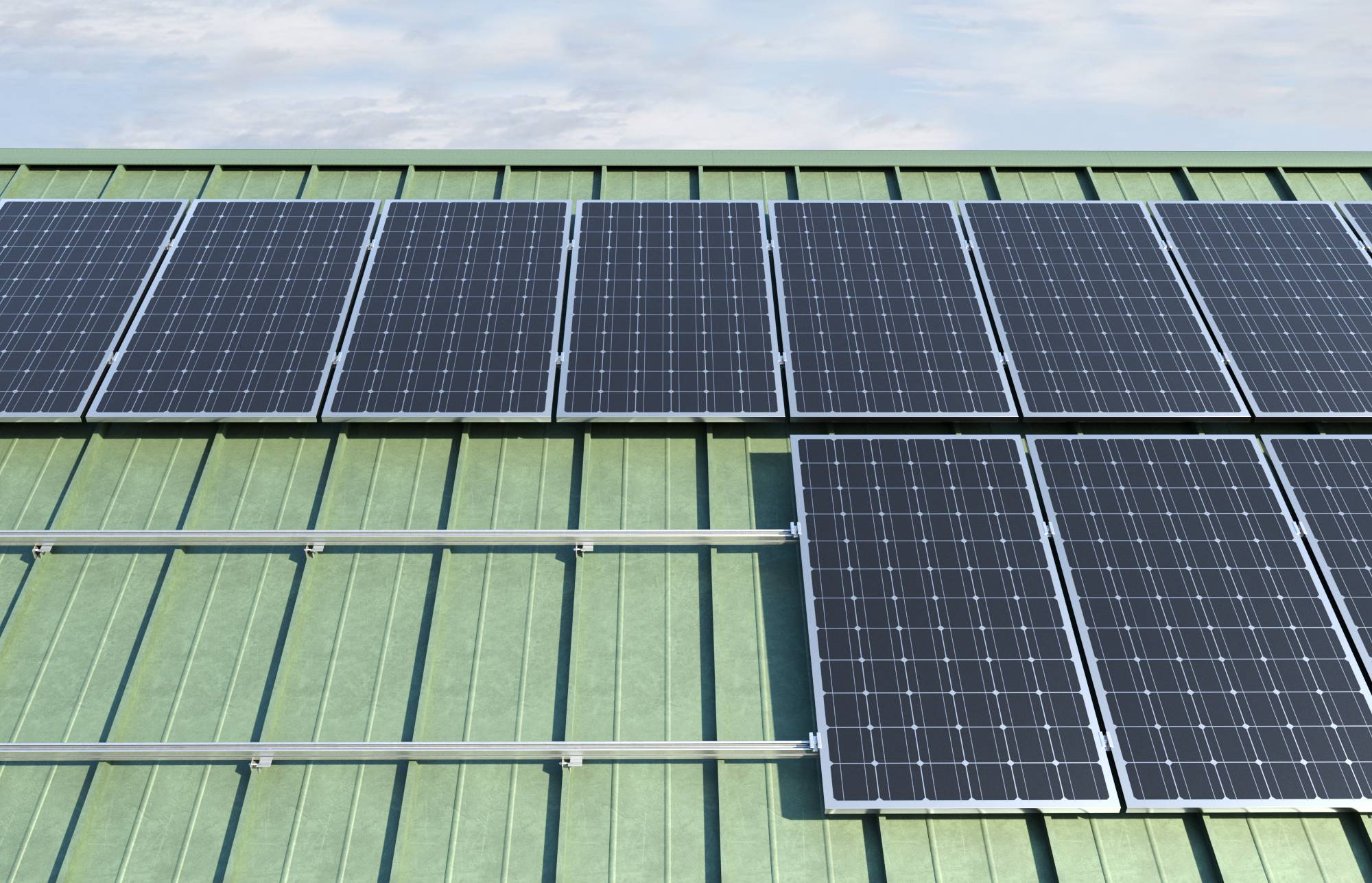

- Pitched Roof Systems with Hook
- Trapezoidal sheet metal roof systems
- Corrugated sheet-metal roof systems
- Special constructions
- With:
- Solar light
- SolarMid
- SolarMetal tin roof
- SolarFlat metal roof
Technical specifications
- Installation torque: 10 Nm
- Module thickness 33 - 39 mm
- Width across flats (inner hexagonal): 6 mm
- Screw length 40 mm
- Product type
Inline clamp
- Weight
70 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3028788 Fischer 520112 PM C 33-39 AL sw Inline clamp
Description
PM C is the pre-assembled center terminal for PV modules with aluminum frames. The PM C terminal is available in various versions, depending on the thickness of the PV panel. The clamp has a hammer nut with a special plastic cage to facilitate the positioning of the nut in the central groove of the rail. The spring holds the clamp up until it is tightened to facilitate positioning of the PV panel. Thanks to the spring, the pre-assembled PM C center clamp remains raised during the tightening phases and thanks to the plastic element it remains in position without slipping. The clamps do not need any additional elements such as screws, seals or bolts.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 pcs.
