Fischer 520113 PM F 35 AL sw End clamp
EAN:
Part number:
Item no:
Highlights & Details

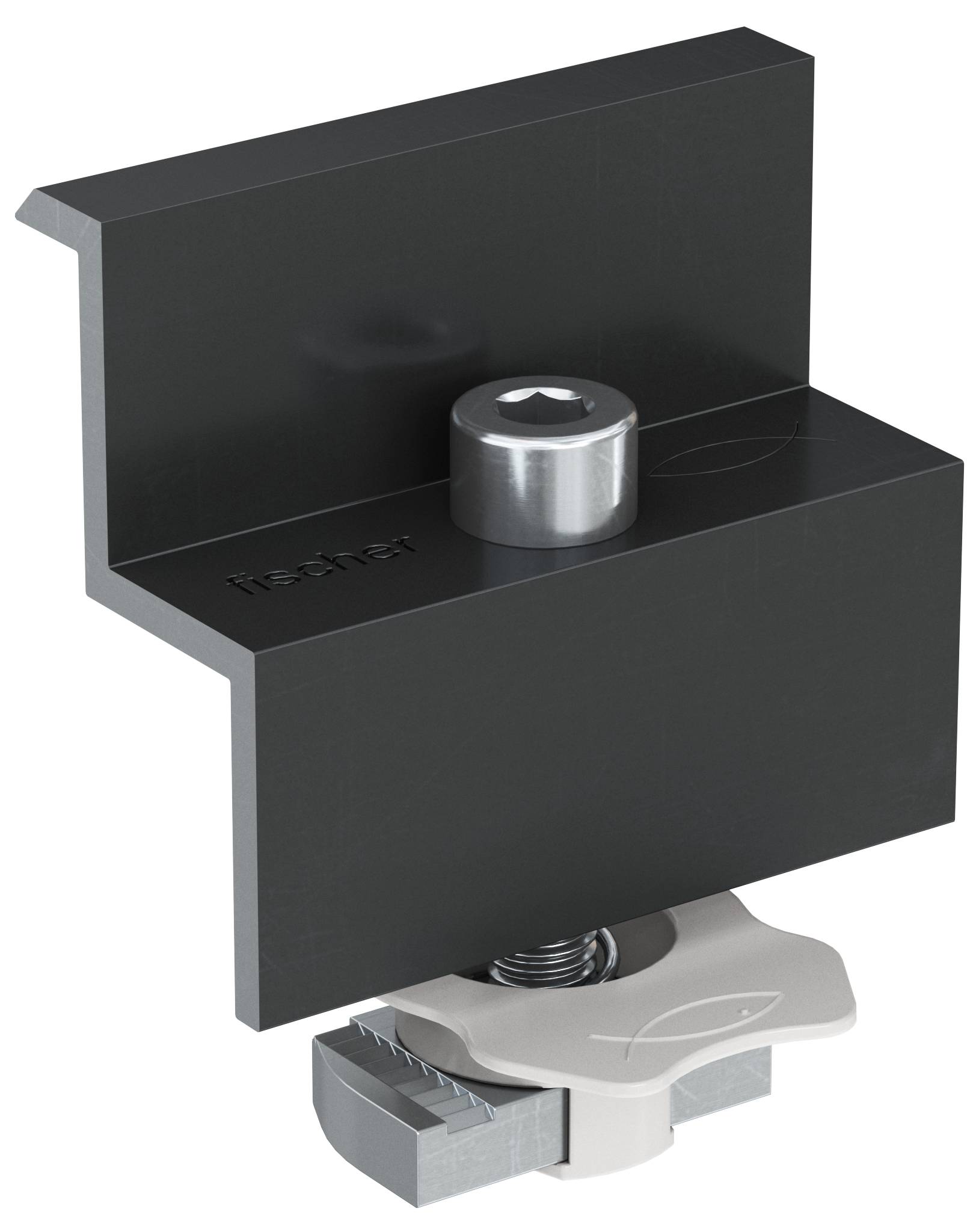

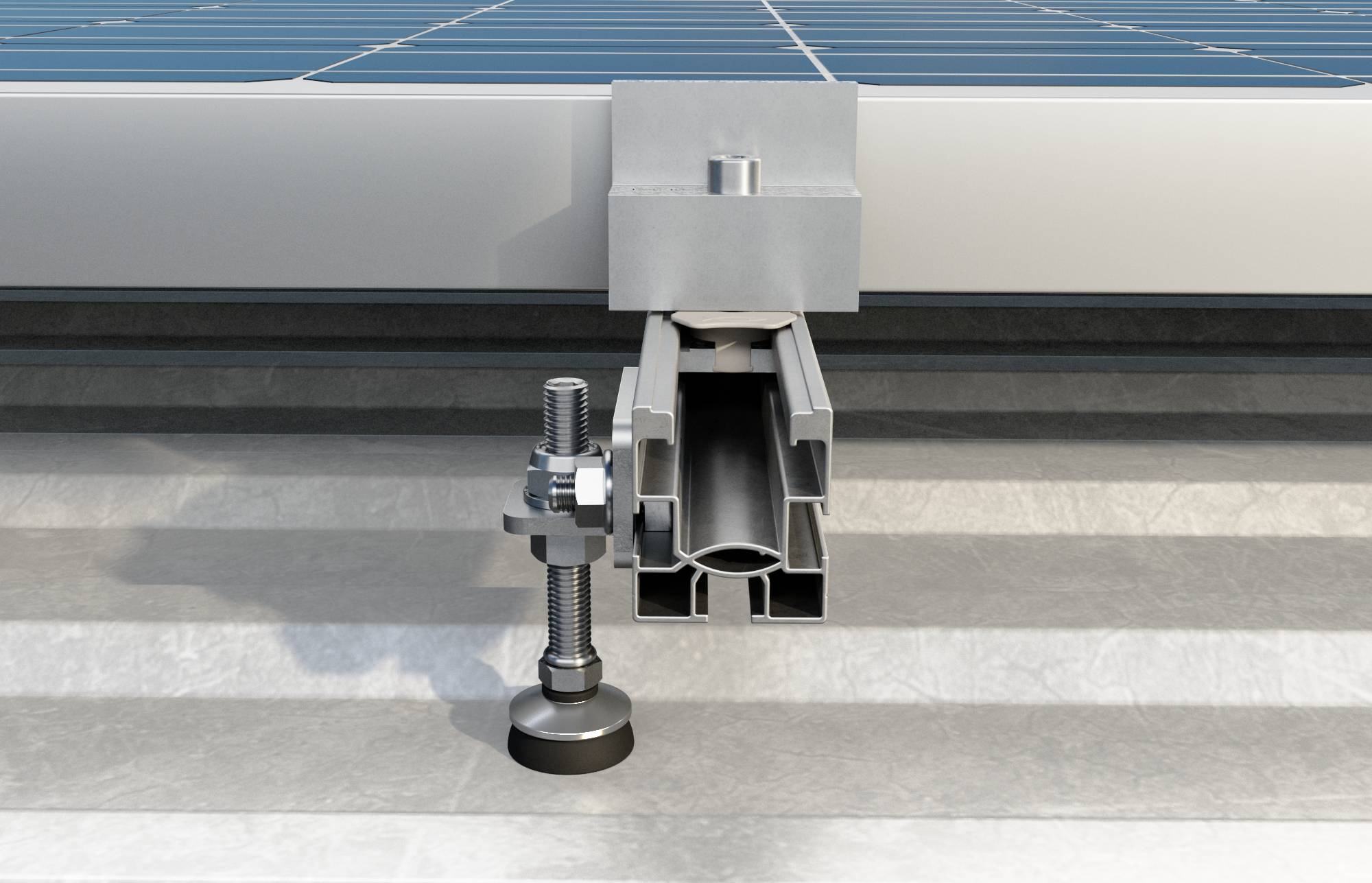

Fischer final clamp pre-assembled PM F 35 AL SW
- Pre-assembled
- Hammer nut with clip for quick insertion into the rail
- Integrated spring to facilitate the positioning of the PV panel
- Terminal and nut made of aluminum AW 6060 T66, screw made of stainless steel A2-70, clip made of PA 6
- Insert the lower part of the PM F terminals into the upper groove of the rail
- Turn the pre-assembled PM F terminals clockwise by 90°
- Attach the PV module to the socket head screw (TCEI) with a tightening torque of approx. 10 Nm

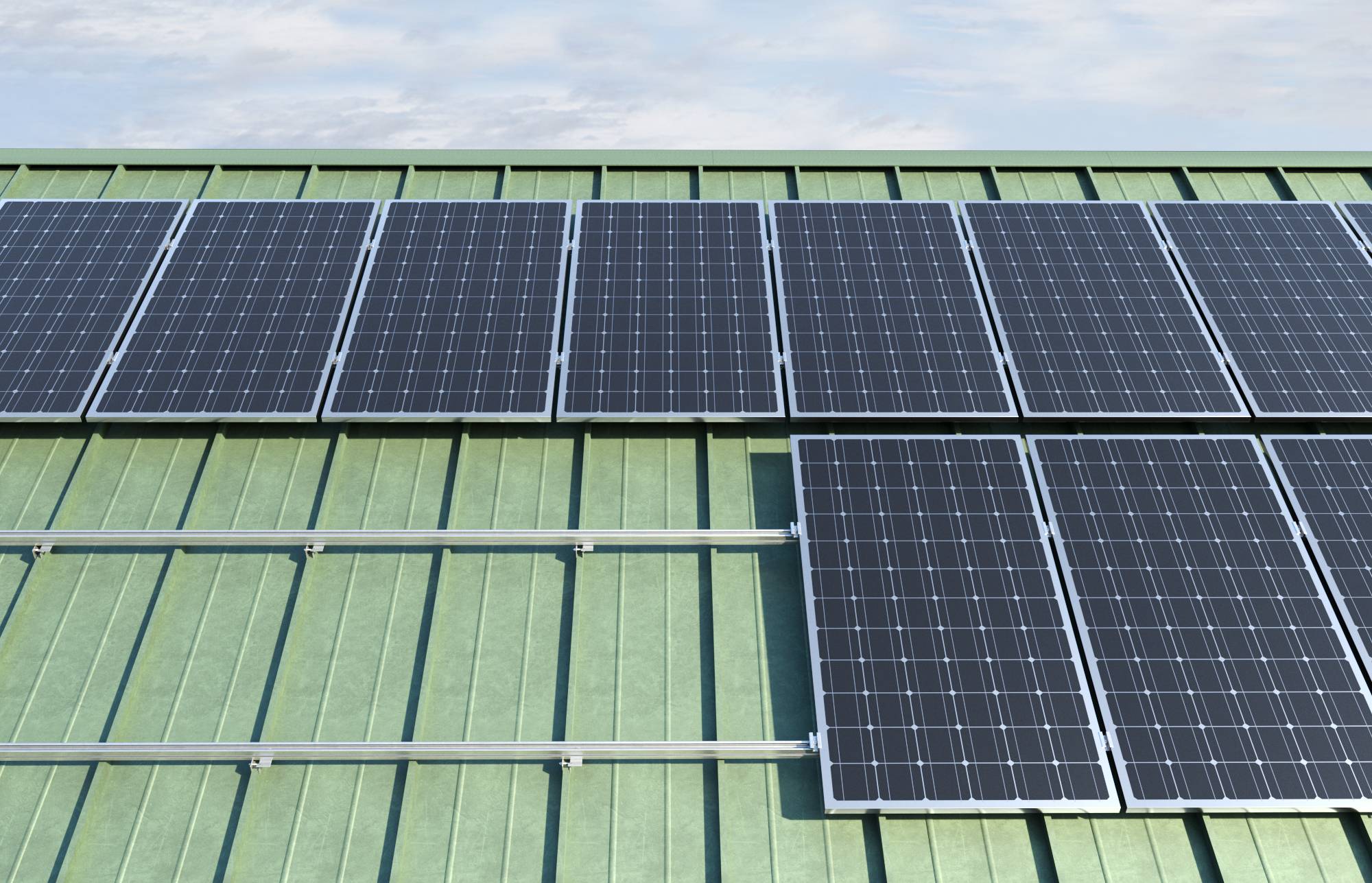

- Suitable for:
- Pitched Roof Systems with Hook
- Trapezoidal sheet metal roof systems
- Corrugated sheet-metal roof systems
- Special construction systems
- With:
- Solar light
- SolarMid
- SolarMetal tin roof
- SolarFlat metal roof
Technical specifications
- Installation torque: 10 Nm
- Module thickness 35 mm
- Width across flats (inner hexagonal): 6 mm
- Product type
End clamp
- Weight
60 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3028789 Fischer 520113 PM F 35 AL sw End clamp
Description
PM F is the pre-assembled end terminal for PV modules with aluminum frame. The PM terminal is available in various versions depending on the thickness of the PV panel. PM F has a hammer nut with a special plastic cage to facilitate the positioning of the nut in the central groove of the rail. The spring holds the clamp up until it is tightened to facilitate positioning of the PV panel. Thanks to the spring, the pre-mounted PM F end clamps remain raised during the tightening phases and thanks to the plastic element, they remain in position without slipping. The PM F pre-assembled terminals do not require any additional elements such as screws, seals or bolts.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 pcs.
