Buy Fischer 520133 TherMax 10/200 M 6 Spacer fittings 260 mm 22 mm 2 pc(s)

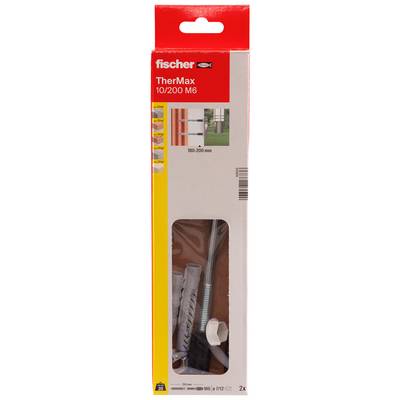

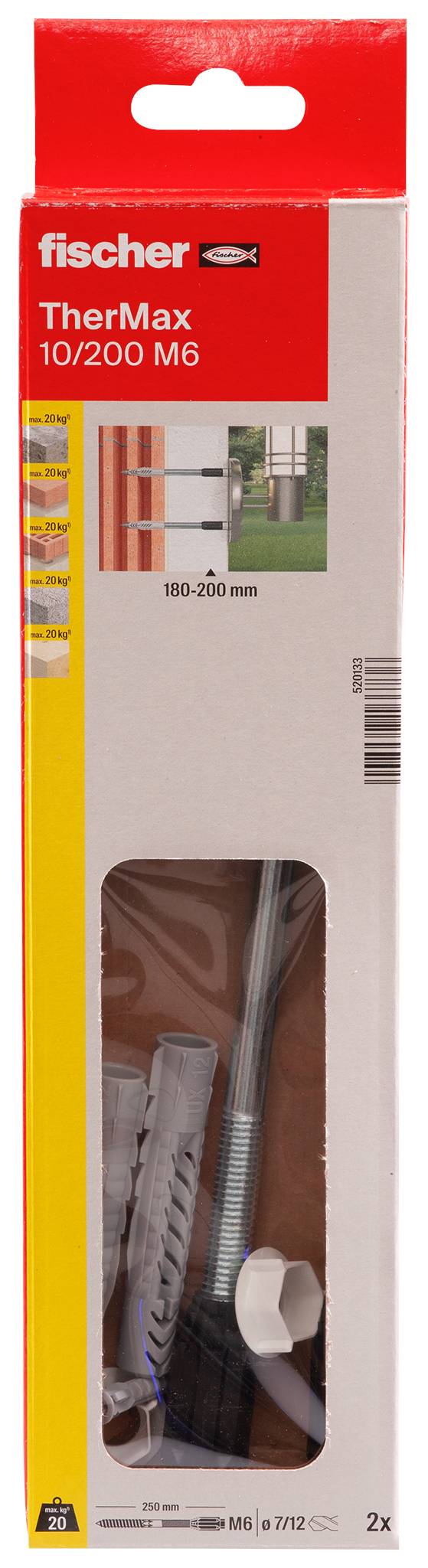

Packaging for fischer TherMax 10/200 M6 wall insulation anchor kit, showing 2 anchors and installation parts for 180-200 mm insulation<br>

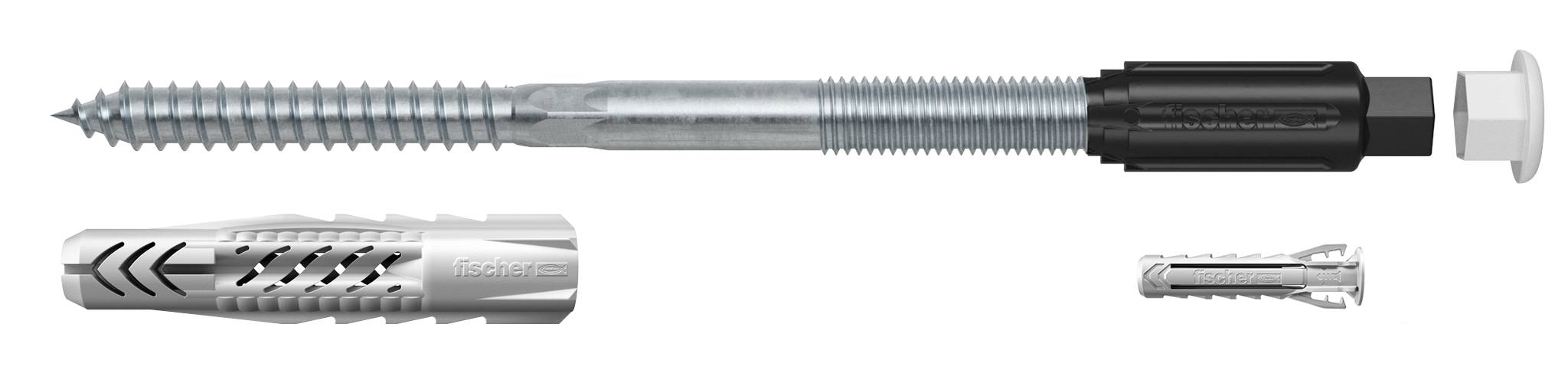

Technical illustration of a long metal anchor bolt with a black plastic sleeve and white cap, plus a threaded sleeve anchor shown separately below.

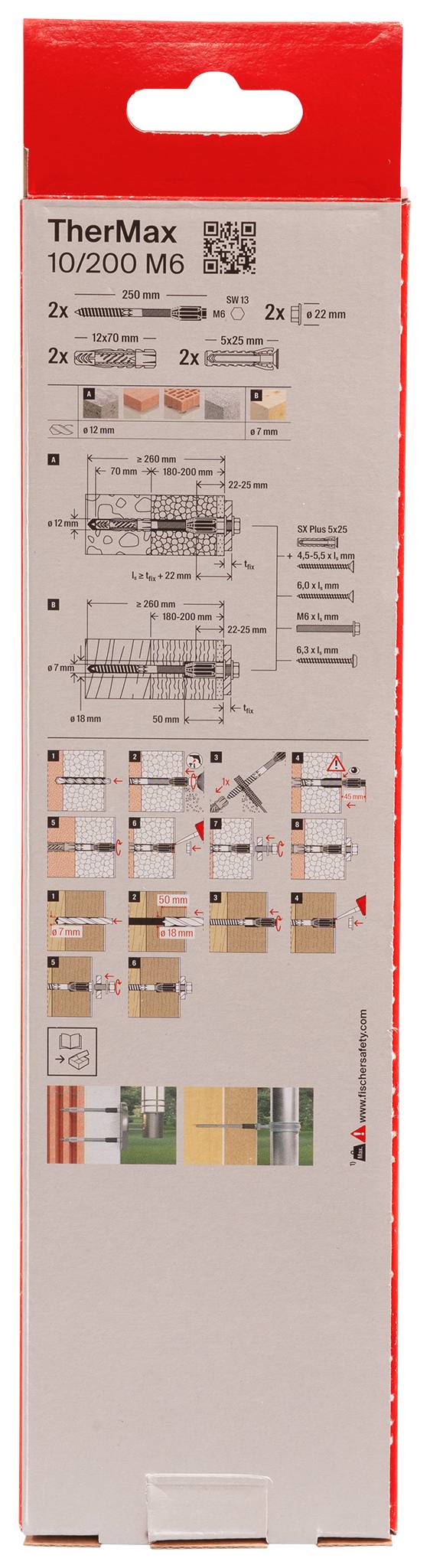

TherMax 10/200 M6 packaged hardware kit with illustrated installation instructions and diagrams on the box front.

An insulated wall cross-section showing a long bolt or anchor passing through wood, insulation, and an exterior metal pipe support.

Wall anchor detail showing two long screws securing a metal fixture through insulation and brick into an exterior wall.

1/5

Fast track dispatch on Tue, 6 Oct

24 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 2 pc(s))

Set(s)

Total (€ 12.60 / piece)

€ 12.60

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Fischer TherMax 10/200 M 6 spacer assembly system (2)

No heat bridge through anti-cold cone
Installation without setting tool. This saves time
Self-milling plastic cone
Exact adjustment of the attachment without pressure marks and damage of the WDVS
Suitable for all building materials

Technical specifications

(Ø): 22 mm

Product type: Spacer fittings

Material: Plastic
Steel

Length: 260 mm

Screw diameter: 12 mm

Dim: (Ø x L) 22 mm x 260 mm

Suitable for: Concrete
Cored bricks
Flintlime bricks
Flintlime hollow bricks
Bricks

Content: 2 pc(s)

Material properties: fibreglass-reinforced
zinc galvanized

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2751831 Fischer 520133 TherMax 10/200 M 6 Spacer fittings 260 mm 22 mm 2 pc(s)

Description

The Fischer Thermax distance mounting system is a solution for attachment in the outer wall without thermal bridges in the WDVS. The stock screw with the glass fiber reinforced cone milled itself automatically through the plaster into the insulation material. During installation, the stock screw is rotated into the universal dowel UX and thus anchored securely in the building material. The anti-cold cone on the head of the stock screw interrupts the thermal bridge and takes the external fixing. The Thermal Max attaches light loads such as lamps, letter boxes or lightning conductors in concrete, porous concrete and masonry from perforated and solid stone.

This text is machine translated.

Features

The distance mounting allows the attachment to be adjusted to the exact positioning, avoiding pressure marks or damaging the WDVS.
The plastic cone interrupts the thermal bridge between the attachment and the inner mounting and offers an energy-optimized mounting.
The glass-fiber reinforced plastic cone milled itself positively into the WDVS and enables simple, fast mounting without special tools.
The combination with the universal dowel UX securely anchored in the underground.
Without the UX plug, direct installation in wooden base is also possible after pre-drilling.
