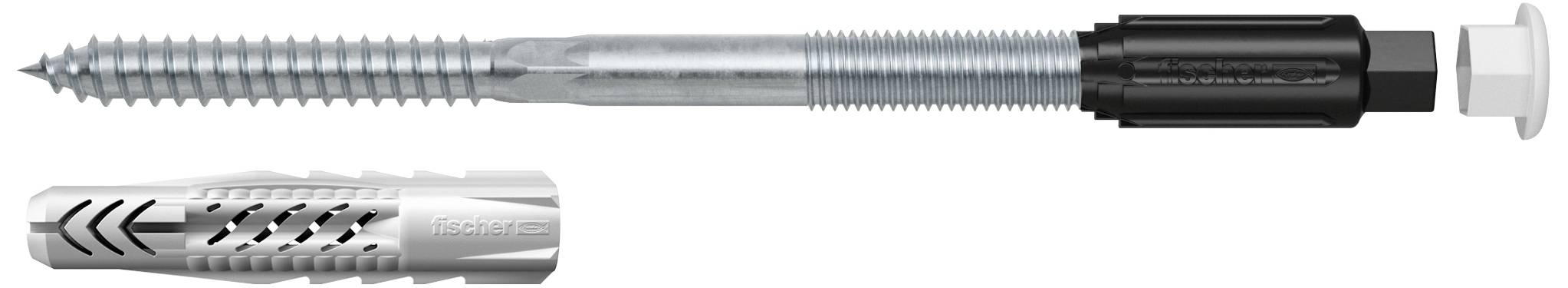

Three views of a wall anchor or expansion plug with screw, showing the assembled fastener and close-up details on a white background.

TherMax 10/220 M6 fastener packaging box, showing product name, dimensions, installation diagrams, and technical specifications on the front.

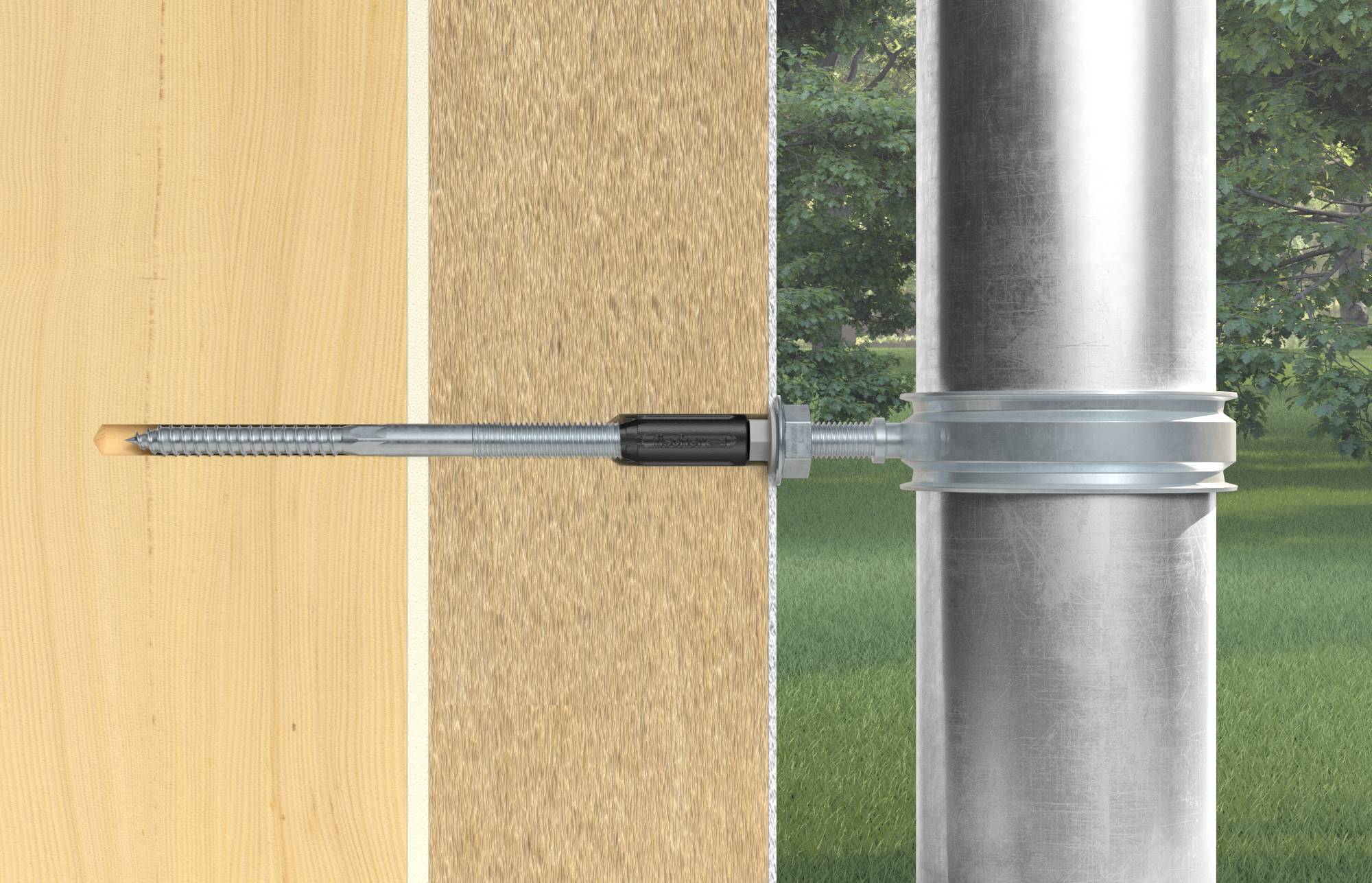

Cutaway shows a threaded anchor bolt passing through wood and insulation into a metal pipe clamp, securing the pipe to a wall.<br>

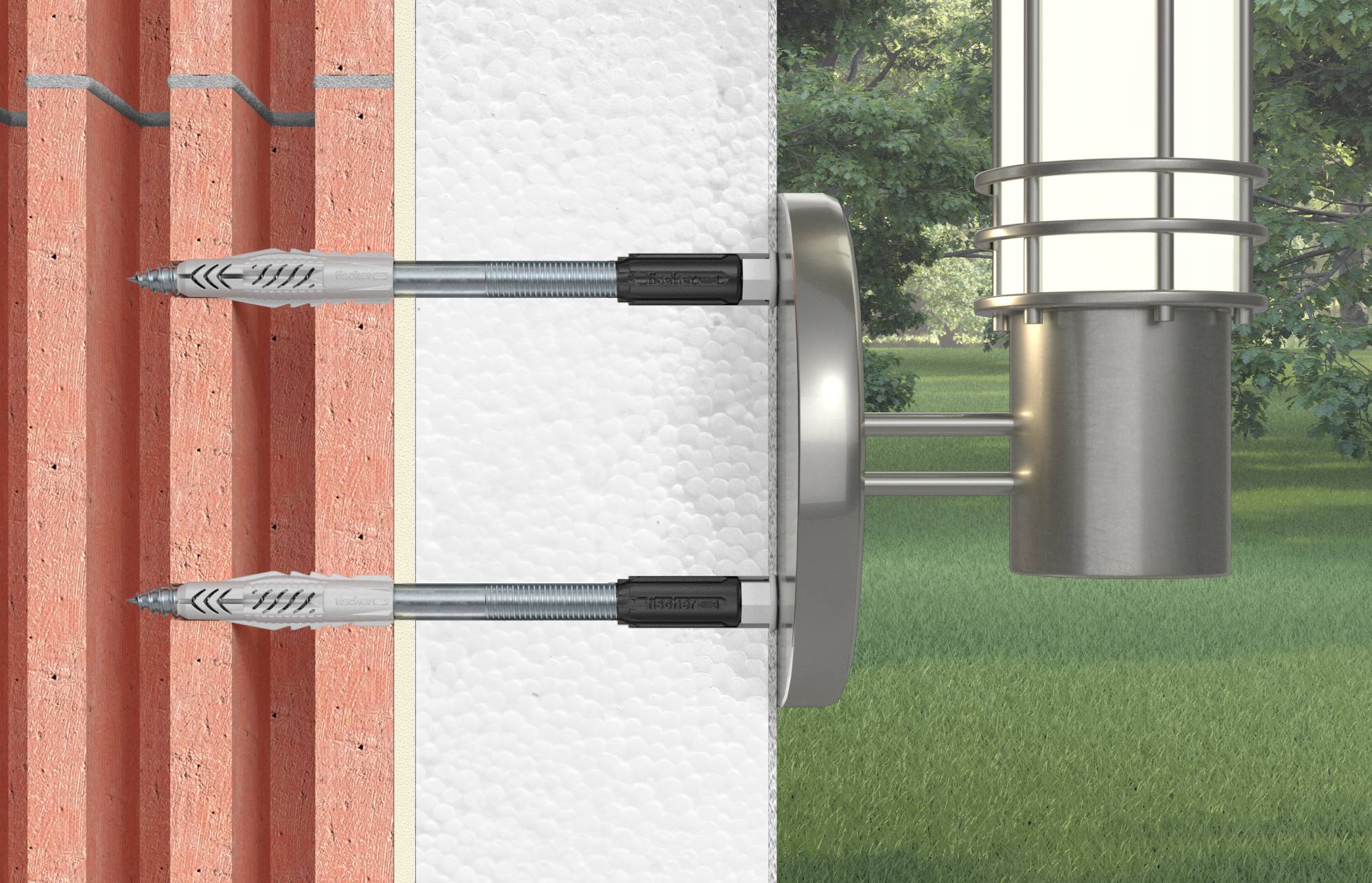

Illustration of a wall-mounted exterior light fixed through insulated masonry with long anchor screws and a metal mounting plate.

1/5

Fast track dispatch on Mon, 5 Oct

12 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 2 pc(s))

Set(s)

Total (€ 15.96 / piece)

€ 15.96

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Fischer TherMax 10/220 M 6 spacer assembly system (2)

No heat bridge through anti-cold cone
Installation without setting tool. This saves time
Self-milling plastic cone
Exact adjustment of the attachment without pressure marks and damage of the WDVS
Suitable for all building materials

Technical specifications

(Ø): 22 mm

Product type: Spacer fittings

Material: Plastic
Steel

Length: 280 mm

Screw diameter: 12 mm

Dim: (Ø x L) 22 mm x 280 mm

Suitable for: Concrete
Cored bricks
Flintlime bricks
Flintlime hollow bricks
Bricks

Content: 2 pc(s)

Material properties: fibreglass-reinforced
zinc galvanized

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2751855 Fischer 520182 TherMax 10/220 M 6 Spacer fittings 280 mm 22 mm 2 pc(s)

Description

The Fischer Thermax distance mounting system is a solution for attachment in the outer wall without thermal bridges in the WDVS. The stock screw with the glass fiber reinforced cone milled itself automatically through the plaster into the insulation material. During installation, the stock screw is rotated into the universal dowel UX and thus anchored securely in the building material. The anti-cold cone on the head of the stock screw interrupts the thermal bridge and takes the external fixing. The Thermal Max attaches light loads such as lamps, letter boxes or lightning conductors in concrete, porous concrete and masonry from perforated and solid stone.

This text is machine translated.

Features

The distance mounting allows the attachment to be adjusted to the exact positioning, avoiding pressure marks or damaging the WDVS.
The plastic cone interrupts the thermal bridge between the attachment and the inner mounting and offers an energy-optimized mounting.
The glass-fiber reinforced plastic cone milled itself positively into the WDVS and enables simple, fast mounting without special tools.
The combination with the universal dowel UX securely anchored in the underground.
Without the UX plug, direct installation in wooden base is also possible after pre-drilling.
