Fischer 52164 S 14 ROE 185 Dowel 185 mm 14 mm 25 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
14 mm
- Product type
Dowel
- Material
Polyamide
- Length
185 mm
- Dim
(Ø x L) 14 mm x 185 mm
- Suitable for
Concrete
Flintlime bricks
Natural stone
Solid brick
Cored bricks
Flintlime hollow bricks
Drywall sheet
Solid stone
- Content
25 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479198 Fischer 52164 S 14 ROE 185 Dowel 185 mm 14 mm 25 pc(s)
Description

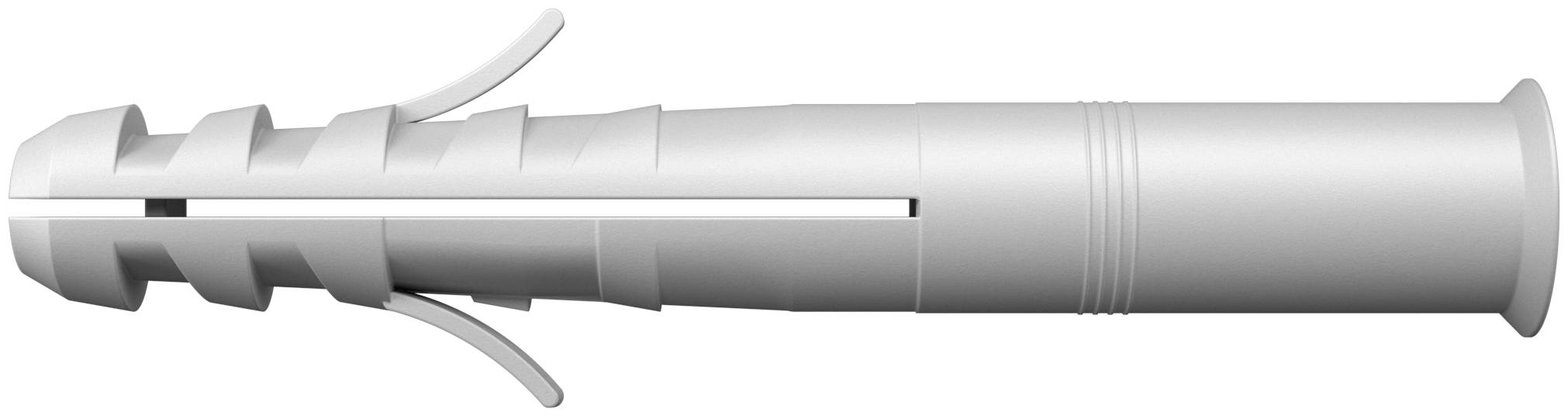

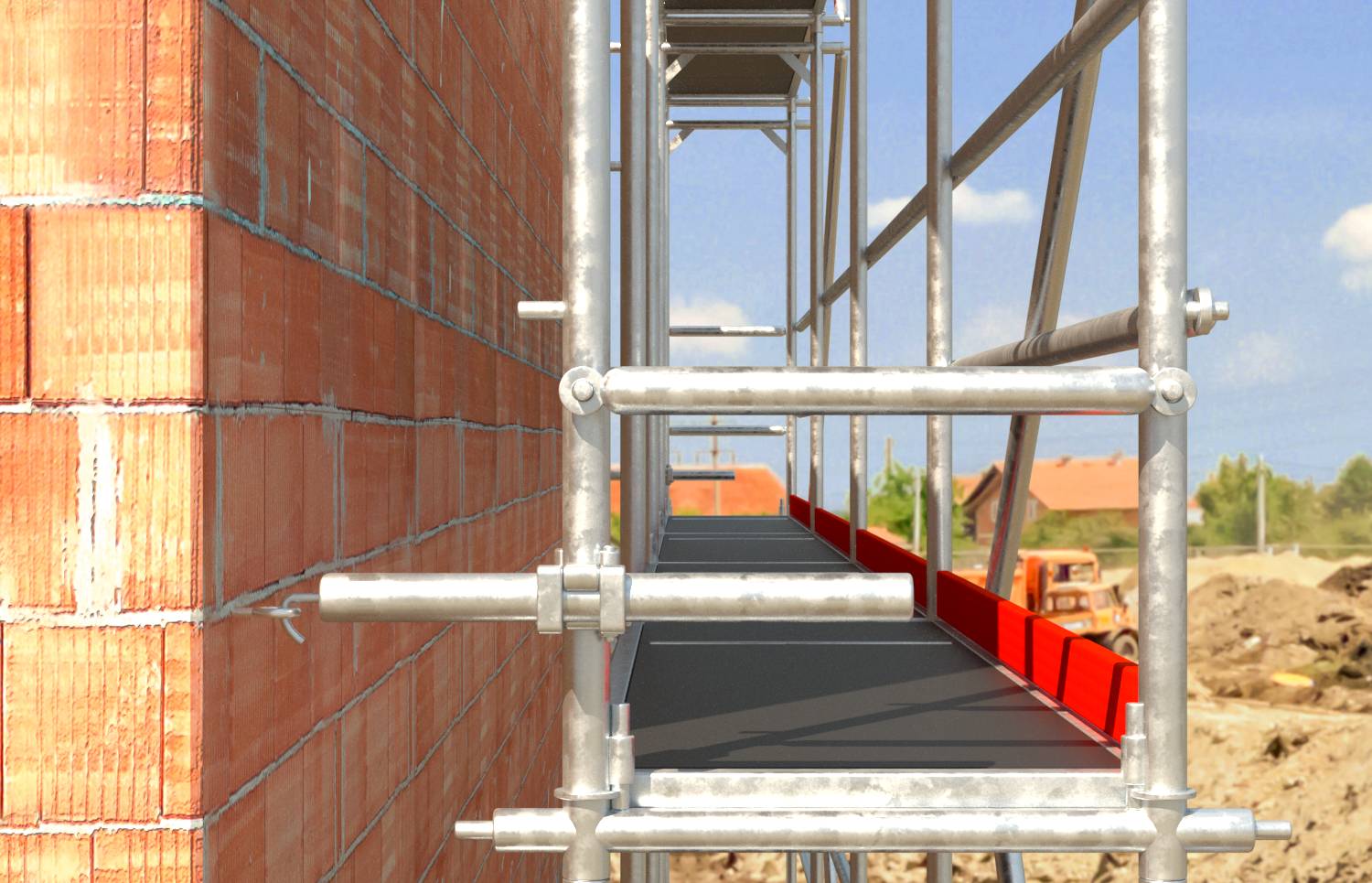

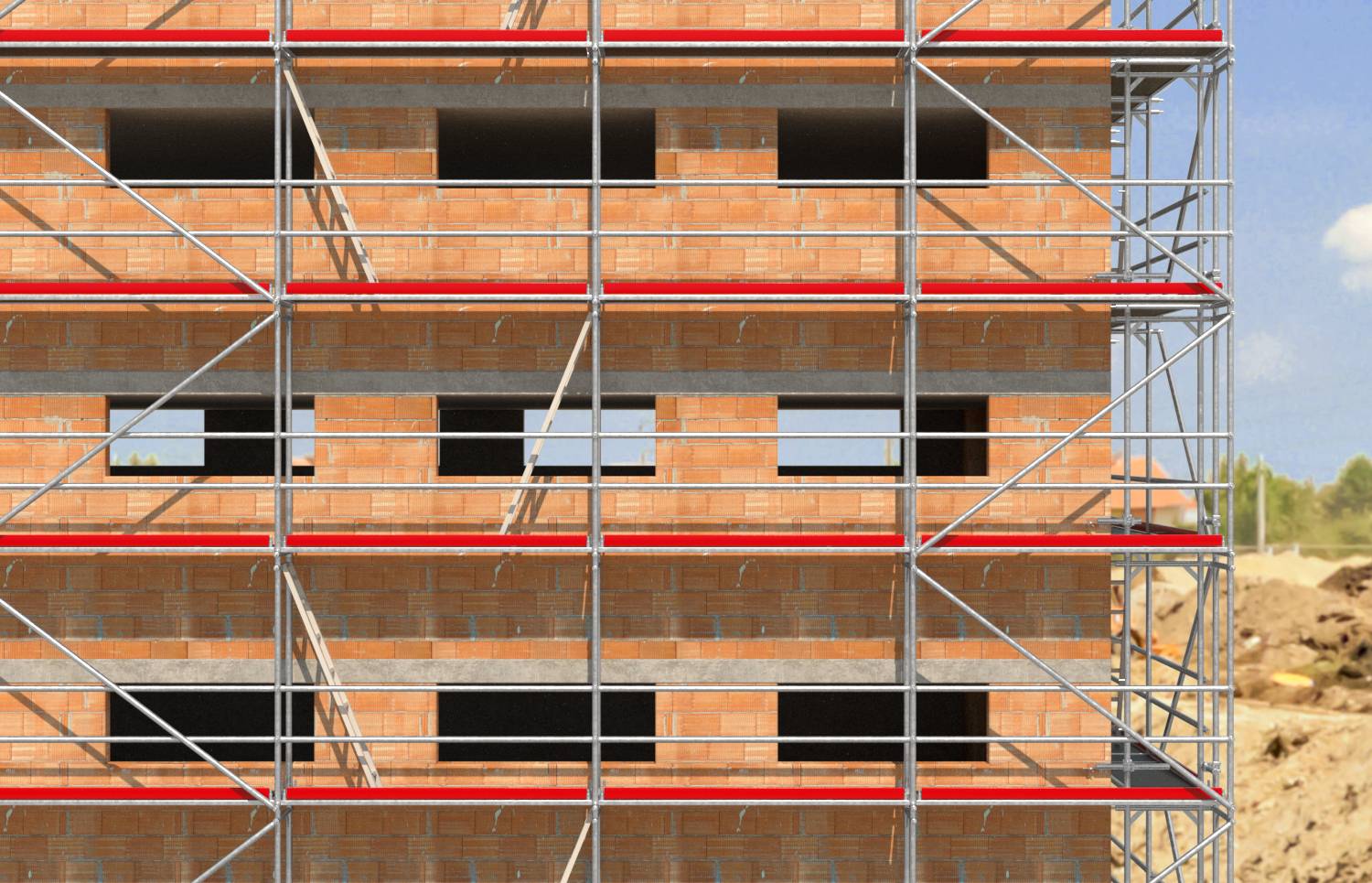

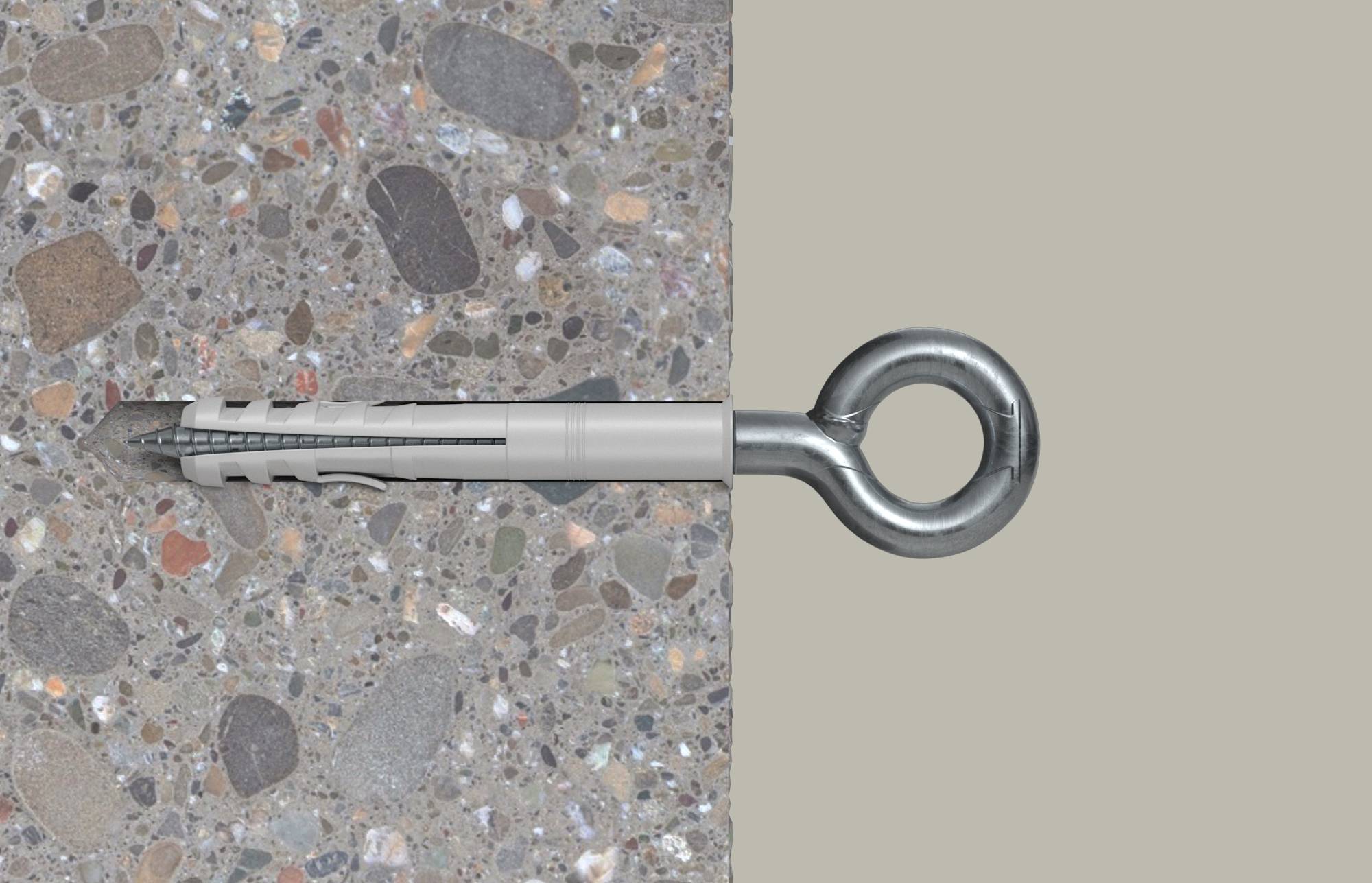

the fischer S 14 ROE anchor plug is a spring plug made of high-quality polyamide to accommodate the fischer GS 12 scaffold. The expanding wings prevent twisting and facilitate mounting. When the scaffold is screwed in, the spread zone expands and firmly anchored in the building material. When mounted near the edge, turn the dowel so that the spreading force acts parallel to the edge.
This text is machine translated.
This text is machine translated.
Features
- Made from high-quality polyamide
- suitable for fixings in solid materials
- optimal holding values together with fischer GS 12 framework
- Edge prevents lower slides and chipping
- Close to the edges thanks to slim expansion geometry.
