Fischer 522676 MW AUF A2 Elbow piece
EAN:
Part number:
Item no:
Highlights & Details

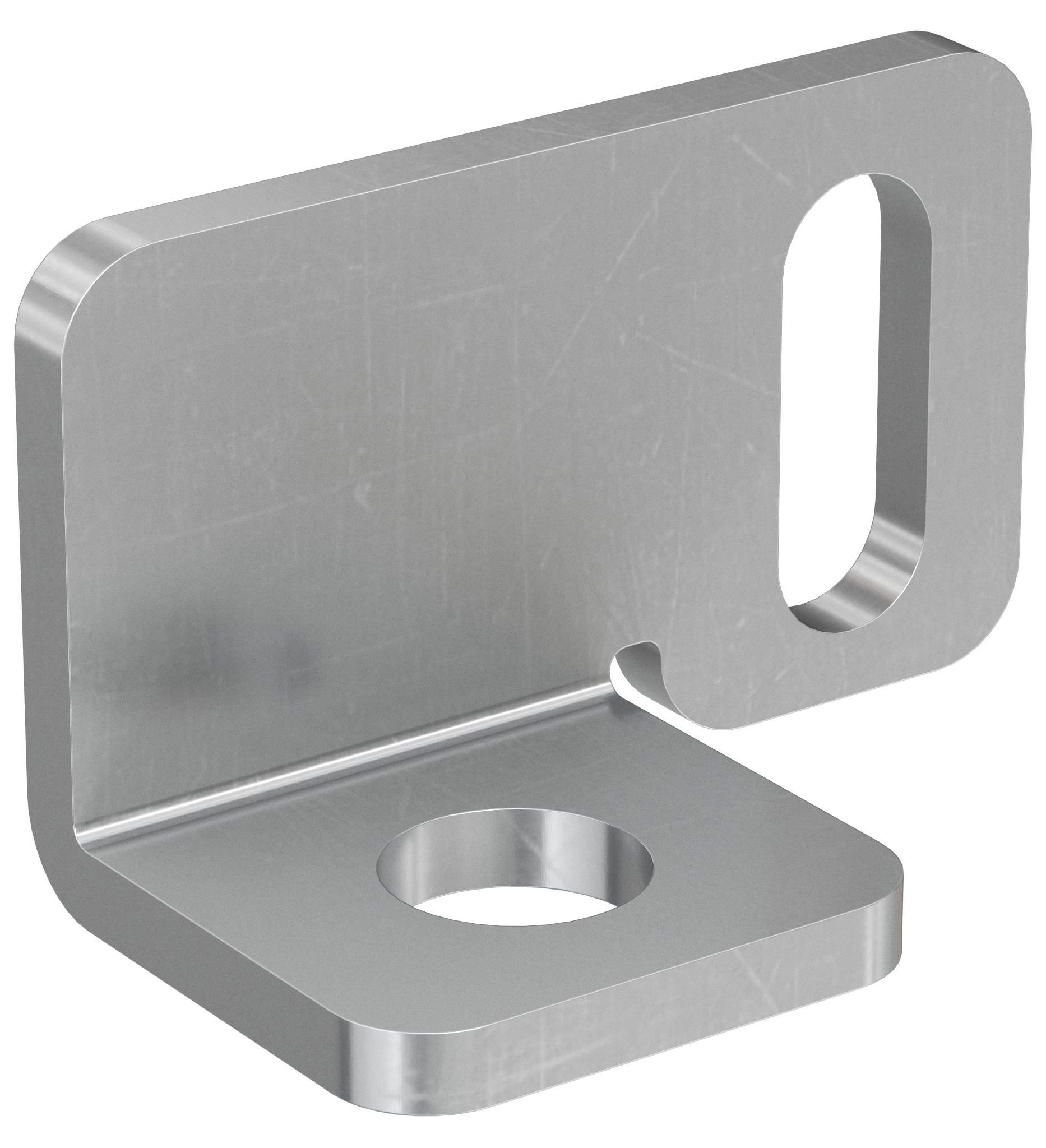

Fischer MW angle bracket ON A2 stainless steel A2
- Holder for connecting solar rails with STSI or STSR stock screws or for connecting two overlapping and 90° crossed solar rails
- Slotted hole on vertical section
- Version with a short slot
- A2-stainless steel

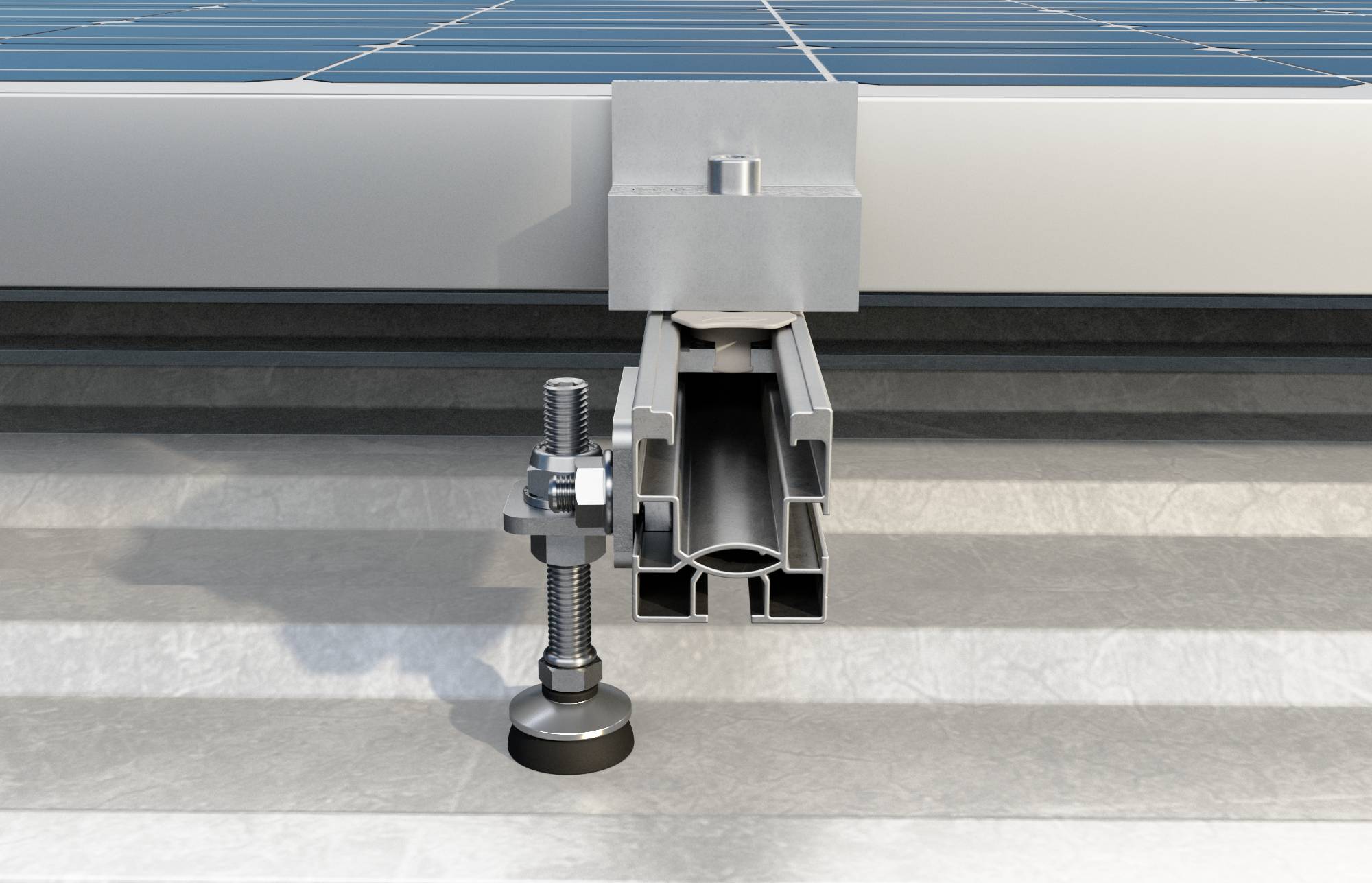

- Connection with STRS or STSI stock screws:
- Insert and tighten the MW connecting bracket between the two nuts of the STSR/STSI stock bolt
- Connect the solar rail through the oblong hole with the screw SKS M 8 and the flange nut MU FM 8 with the MW bracket
- Use the two nuts of the STSR/STSI stock screw to adjust the position of the MW bracket

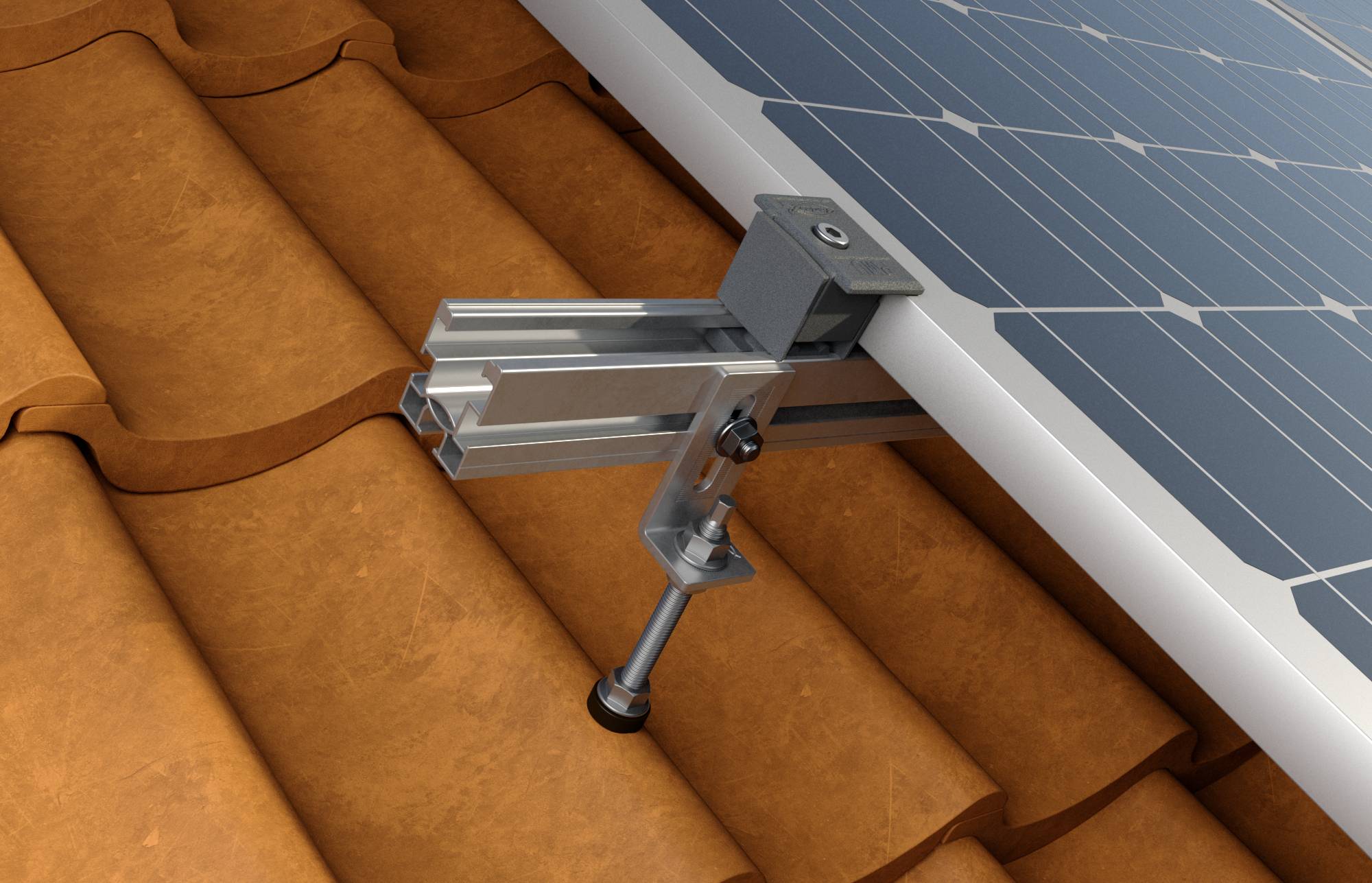

- Crossing of two solar rails:
- Connect the MW angle with the lower solar rail to the FCN AL hammer head nut and the SKS M 8 screw
- Secure the upper solar rail to the angle using the slotted hole with the SKS M 8 screw and the flange nut MU FM 8
- Suitable for:
- Corrugated sheet roof systems
- To connect to:
- Solar light rail
- SolarFish track
- SolarMid rail
Technical specifications
- Dimensions 9 x 23.5 mm
- Hole diameter: 12.5 mm
- Thickness: 4 mm
- Product type
Elbow piece
- Weight
65 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3028794 Fischer 522676 MW AUF A2 Elbow piece
Description
MW ON A2 is the angle of A2 stainless steel for connecting stock screws with solar rails or for connecting two overlapping 90° solar rails. The slot in the vertical part enables the height adjustment of the solar rail. Fast mounting through the lower hole and quick setting through the lateral slotted hole. The connections with the rail are provided with non-slip knurled nuts for a secure attachment.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 pcs.
