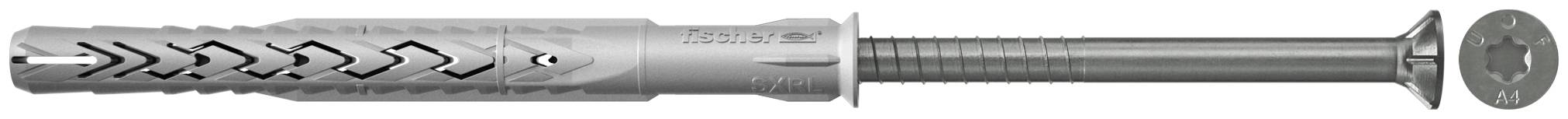

Fischer 522711 SXRL 10x120 T A4 Plug (long) 120 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 50 mm
- Usable length for anchoring depth 50 mm: 70 mm
- Usable length for anchoring depth 90 mm: 30 mm
- Min. Drill hole depth for through-hole mounting: 130 mm
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Steel
- Length
120 mm
- Dim
(Ø x L) 10 mm x 120 mm
- Suitable for
Foamed concrete wall
- Content
50 pc(s)
- Outside Ø
10 mm
- Features
incl. countersunk screw
- Material properties
rust-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877854 Fischer 522711 SXRL 10x120 T A4 Plug (long) 120 mm 10 mm 50 pc(s)
Description

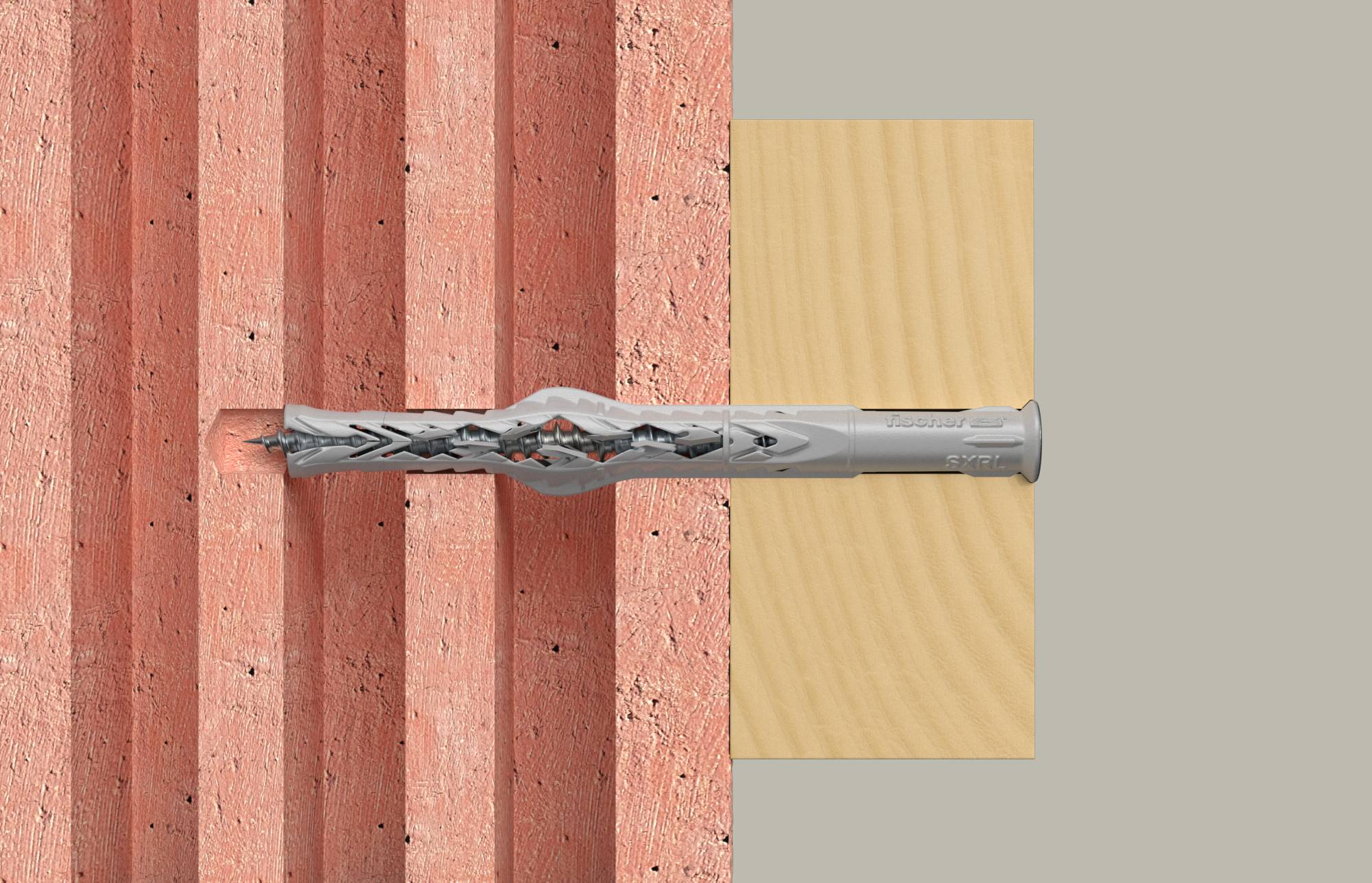

The fischer Long shaft anchor SXRL-T A4 is with the fishermen countersunk screw with T40-drive for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. With the safety screw made of non-rusting steel is the Long shaft anchor for attachments in outdoor areas such as façades, ceiling and roof substructures.
