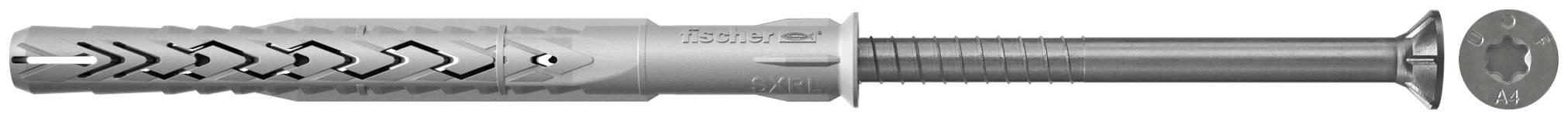

Fischer 522714 SXRL 10x180 T A4 Plug (long) 180 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 110 mm
- Usable length for anchoring depth 50 mm: 130 mm
- Usable length for anchoring depth 90 mm: 90 mm
- Min. Drill hole depth for through-hole mounting: 190 mm
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Steel (stainless)
- Length
180 mm
- Dim
(Ø x H) 10 mm x 180 mm
- Suitable for
Hollow bricks
- Content
50 pc(s)
- Outside Ø
10 mm
- Features
incl. countersunk screw
- Material properties
rust-proof
- Height
180 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1878655 Fischer 522714 SXRL 10x180 T A4 Plug (long) 180 mm 10 mm 50 pc(s)
Description
The fischer Long shaft anchor SXRL-T A4 is with the fishermen countersunk screw with T40-drive for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. With the safety screw made of non-rusting steel is the Long shaft anchor for attachments in outdoor areas such as façades, ceiling and roof substructures.
