Fischer 522716 Langschaftdübel SXRL 10x230 T A4 Plug (long) 230 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

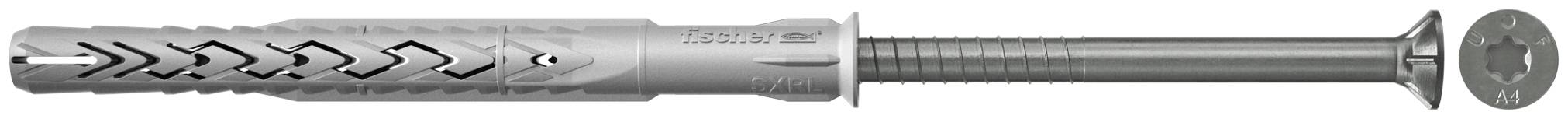

Long shaft bolt SXRL 10x230T A4
Technical specifications
- Usable length for anchoring depth 70 mm: 160 mm
- Usable length for anchoring depth 50 mm: 180 mm
- Usable length for anchoring depth 90 mm: 140 mm
- Min. Drill hole depth for through-hole mounting: 240 mm
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Steel
- Length
230 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 10 mm x 230 mm
- Suitable for
Foamed concrete wall
- Content
50 pc(s)
- Features
incl. countersunk screw
- Material properties
rust-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877296 Fischer 522716 Langschaftdübel SXRL 10x230 T A4 Plug (long) 230 mm 10 mm 50 pc(s)
Description

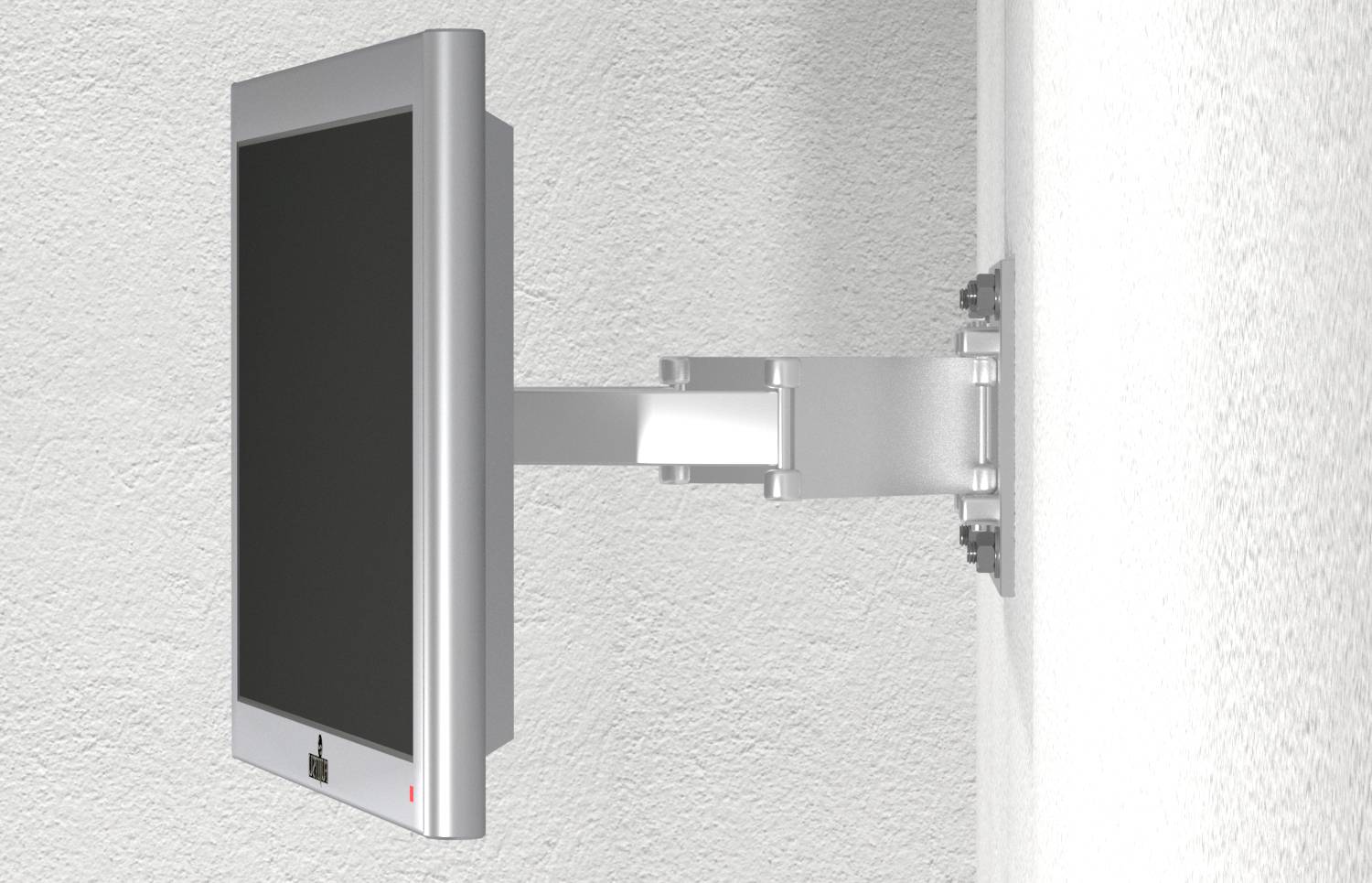

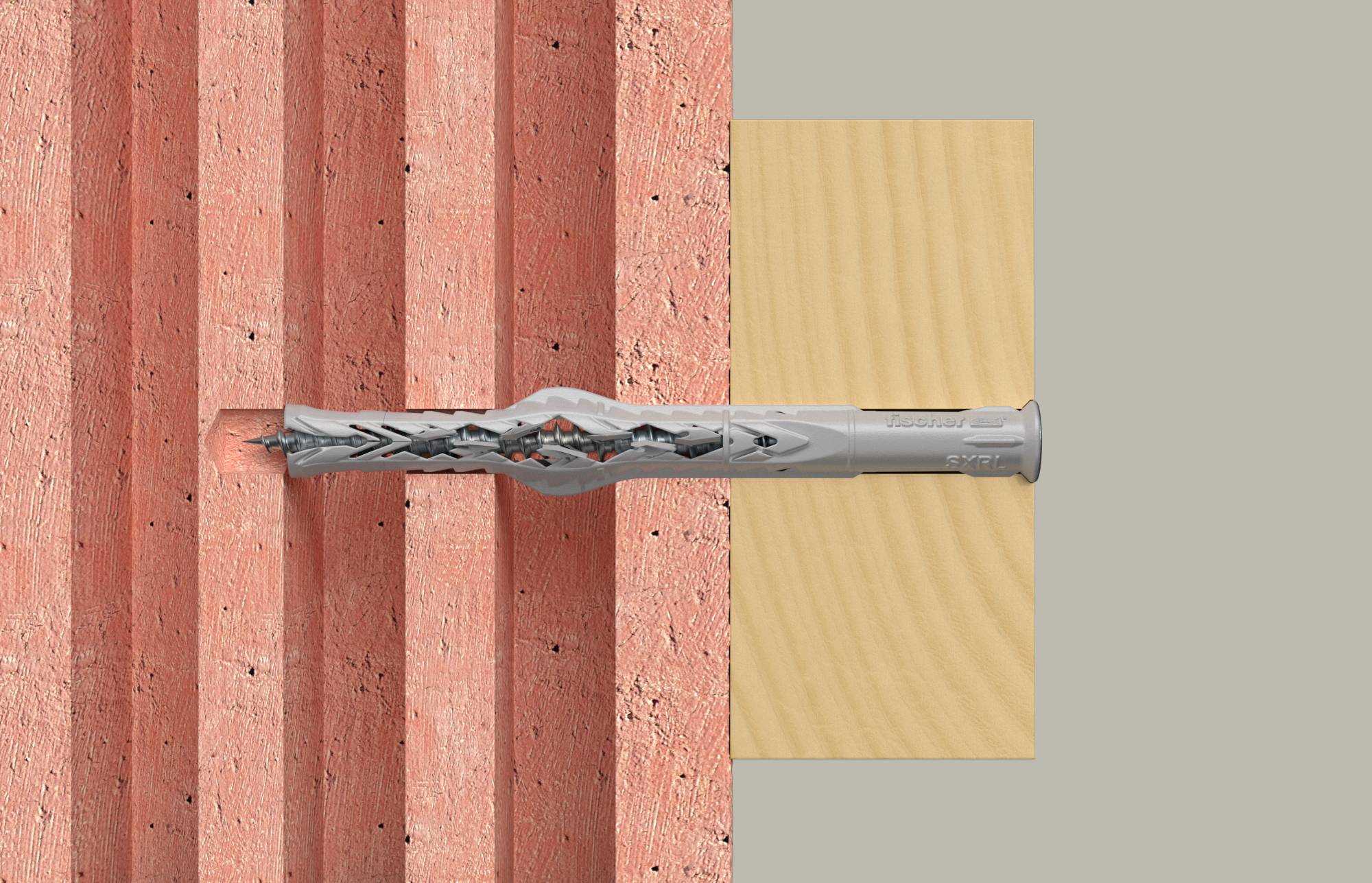

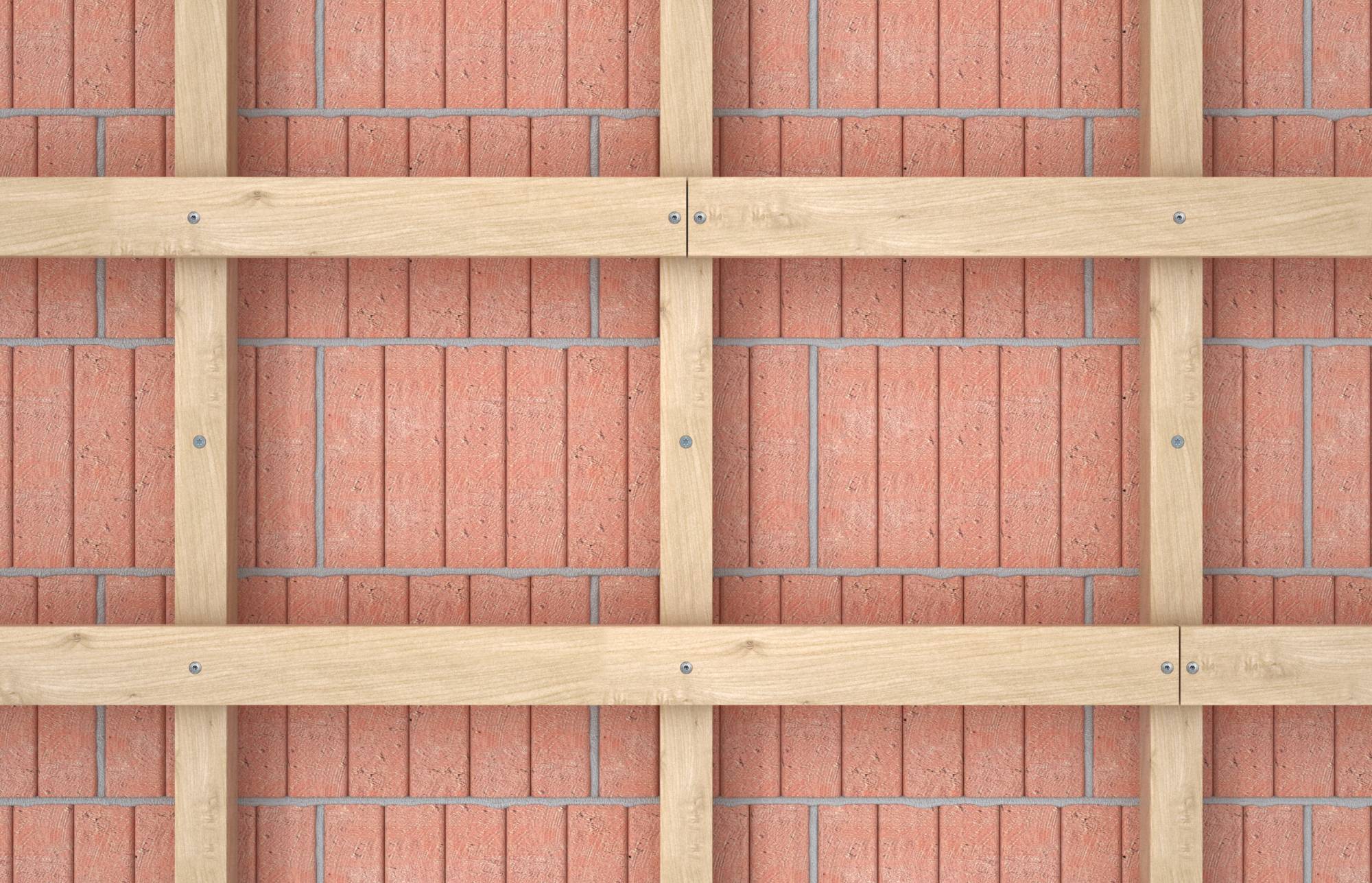

The fischer Long shaft anchor SXRL-T A4 is with the fishermen countersunk screw with T40-drive for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. With the safety screw made of non-rusting steel is the Long shaft anchor for attachments in outdoor areas such as façades, ceiling and roof substructures.
