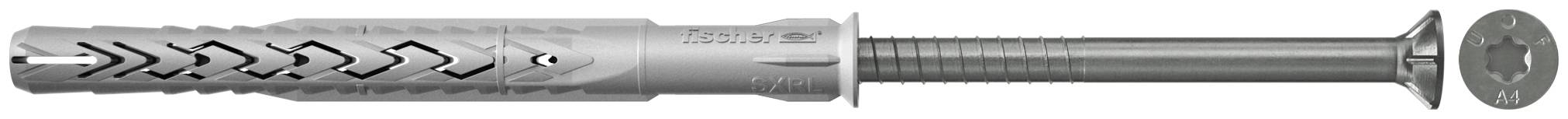

Fischer 522717 SXRL 10x260 T A4 Plug (long) 260 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 190 mm
- Usable length for anchoring depth 50 mm: 210 mm
- Usable length for anchoring depth 90 mm: 170 mm
- Min. Drill hole depth for through-hole mounting: 270 mm
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Non-corrosive steel
- Length
260 mm
- Dim
(Ø x L) 10 mm x 260 mm
- Suitable for
Solid stone
Concrete
Brickwork
Foamed concrete wall
Hollow bricks
- Content
50 pc(s)
- Outside Ø
10 mm
- Features
incl. countersunk screw
- Material properties
rust-proof
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877856 Fischer 522717 SXRL 10x260 T A4 Plug (long) 260 mm 10 mm 50 pc(s)
Description
The fischer Long shaft anchor SXRL-T A4 is with the fishermen countersunk screw with T40-drive for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. With the safety screw made of non-rusting steel is the Long shaft anchor for attachments in outdoor areas such as façades, ceiling and roof substructures.
