1/4

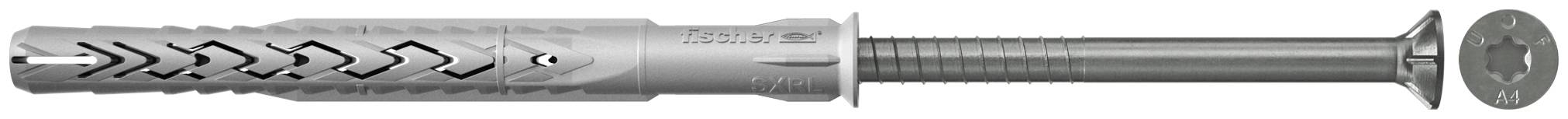

Fischer 522718 SXRL 10x290 T A4 Plug (long) 290 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 220 mm
- Usable length for anchoring depth 50 mm: 240 mm
- Usable length for anchoring depth 90 mm: 200 mm
- Min. Drill hole depth for through-hole mounting: 300 mm
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Steel
- Length
290 mm
- Dim
(Ø x L) 10 mm x 290 mm
- Suitable for
Concrete
Brickwork
Hollow bricks
Foamed concrete
- Content
50 pc(s)
- Outside Ø
10 mm
- Features
incl. countersunk screw
incl. safety screw
- Material properties
A4
rust-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1879252 Fischer 522718 SXRL 10x290 T A4 Plug (long) 290 mm 10 mm 50 pc(s)
Description

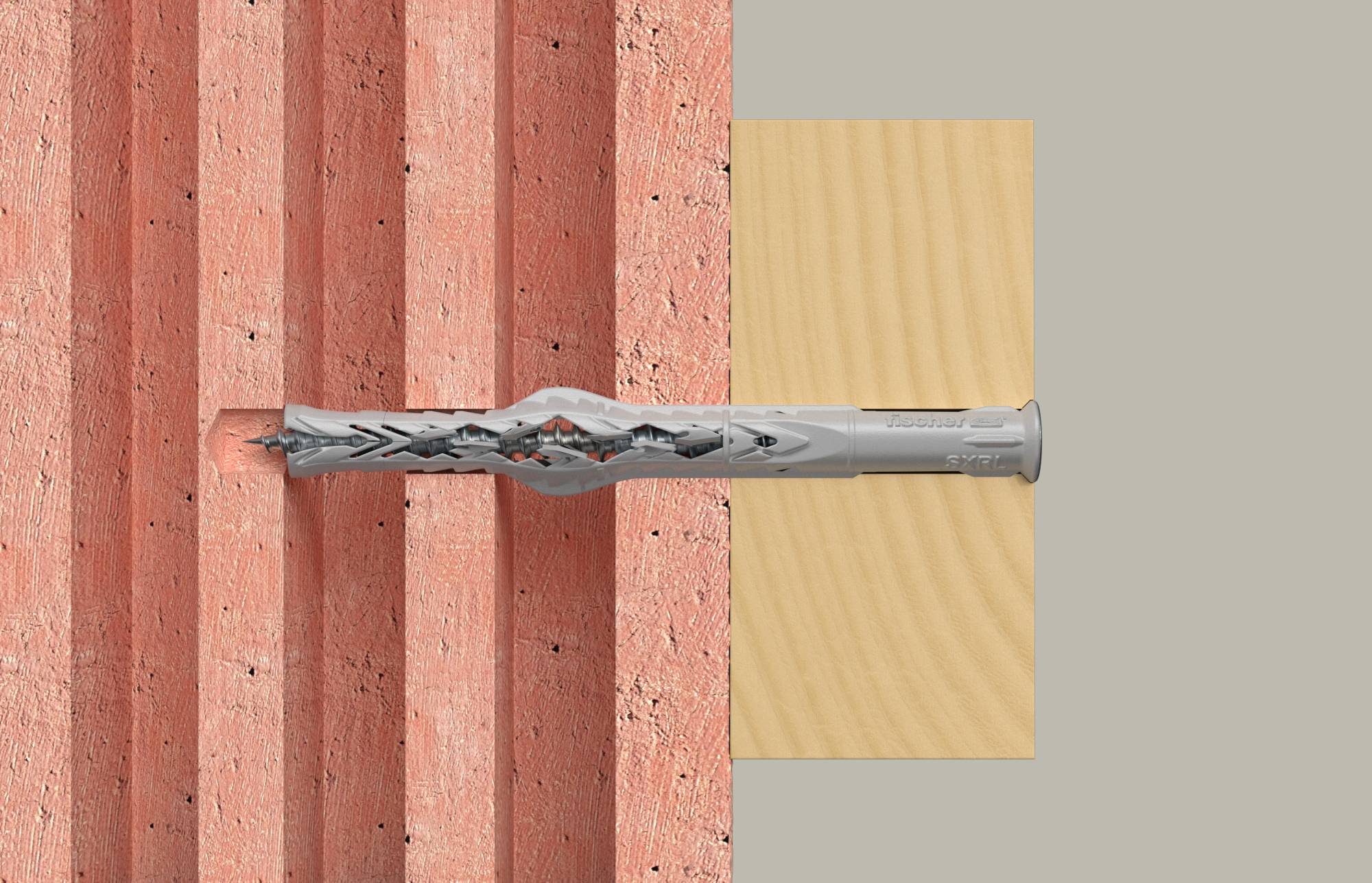

The fischer Long shaft anchor SXRL-T A4 is with the fishermen countersunk screw with T40-drive for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. With the safety screw made of non-rusting steel is the Long shaft anchor for attachments in outdoor areas such as façades, ceiling and roof substructures.
