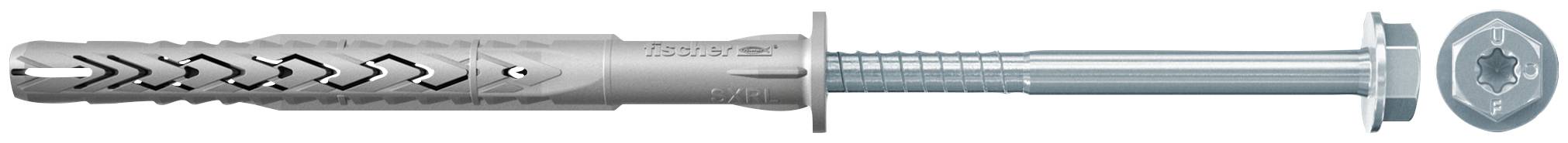

Fischer 522720 Langschaftdübel SXRL 10x100 FUS Plug (long) 100 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 30 mm
- Usable length for anchoring depth 50 mm: 50 mm
- Usable length for anchoring depth 90 mm: 10 mm
- Min. Drill hole depth for through-hole mounting: 110 mm
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Steel
- Length
100 mm
- Dim
(Ø x L) 10 mm x 100 mm
- Suitable for
Brickwork
- Content
50 pc(s)
- Outside Ø
10 mm
- Features
incl. safety screw
incl. hex screw
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877297 Fischer 522720 Langschaftdübel SXRL 10x100 FUS Plug (long) 100 mm 10 mm 50 pc(s)
Description

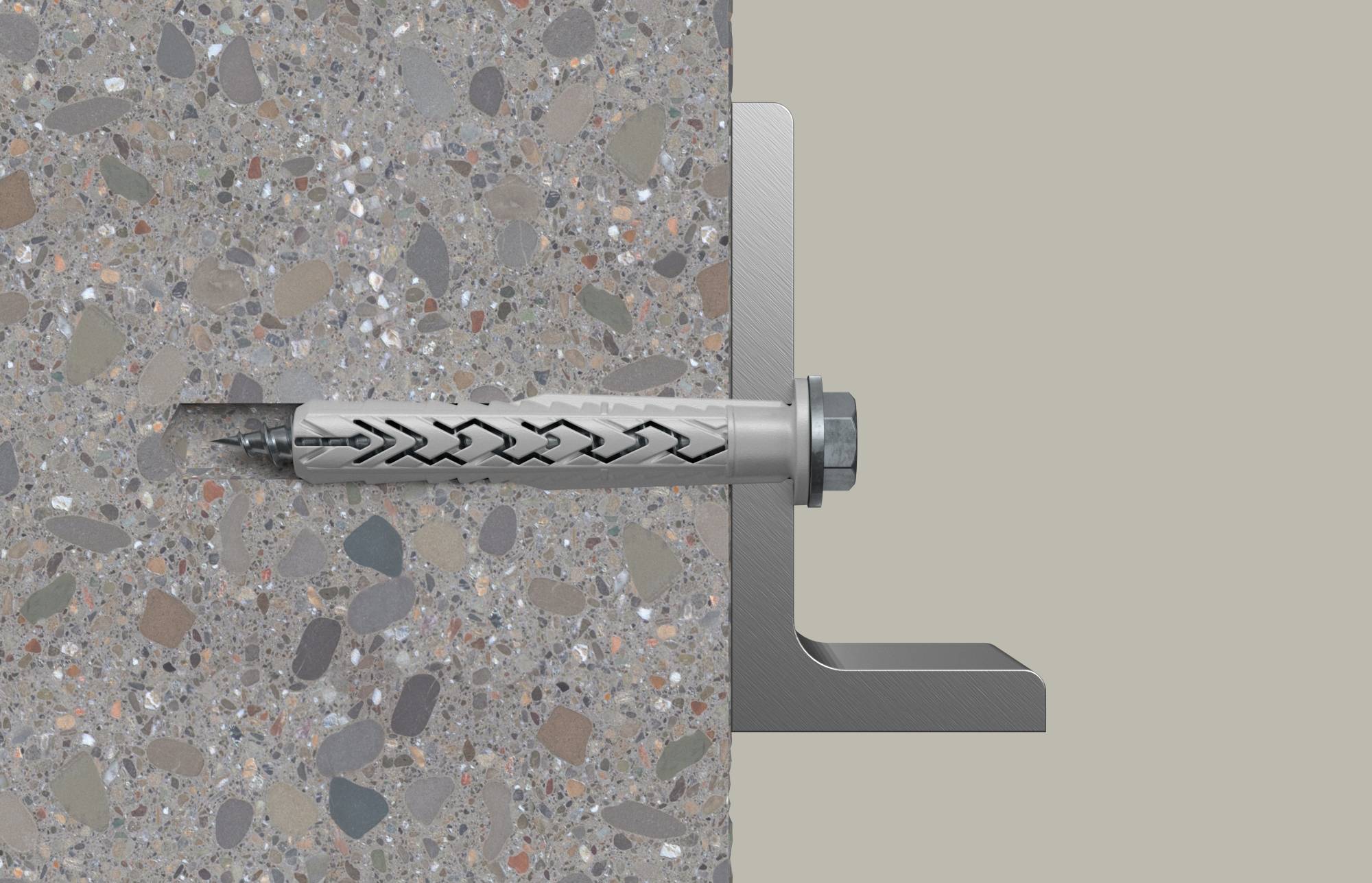

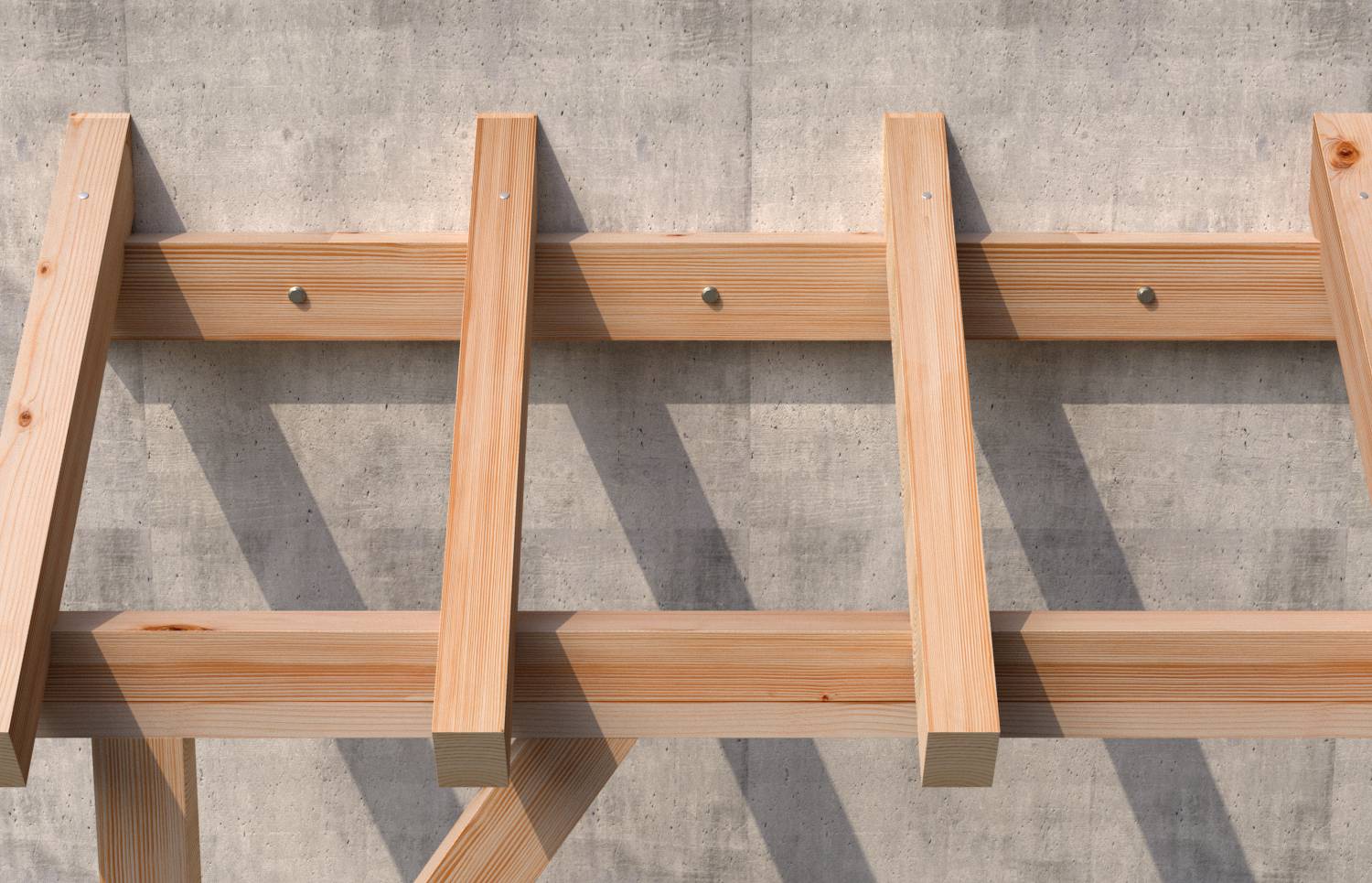

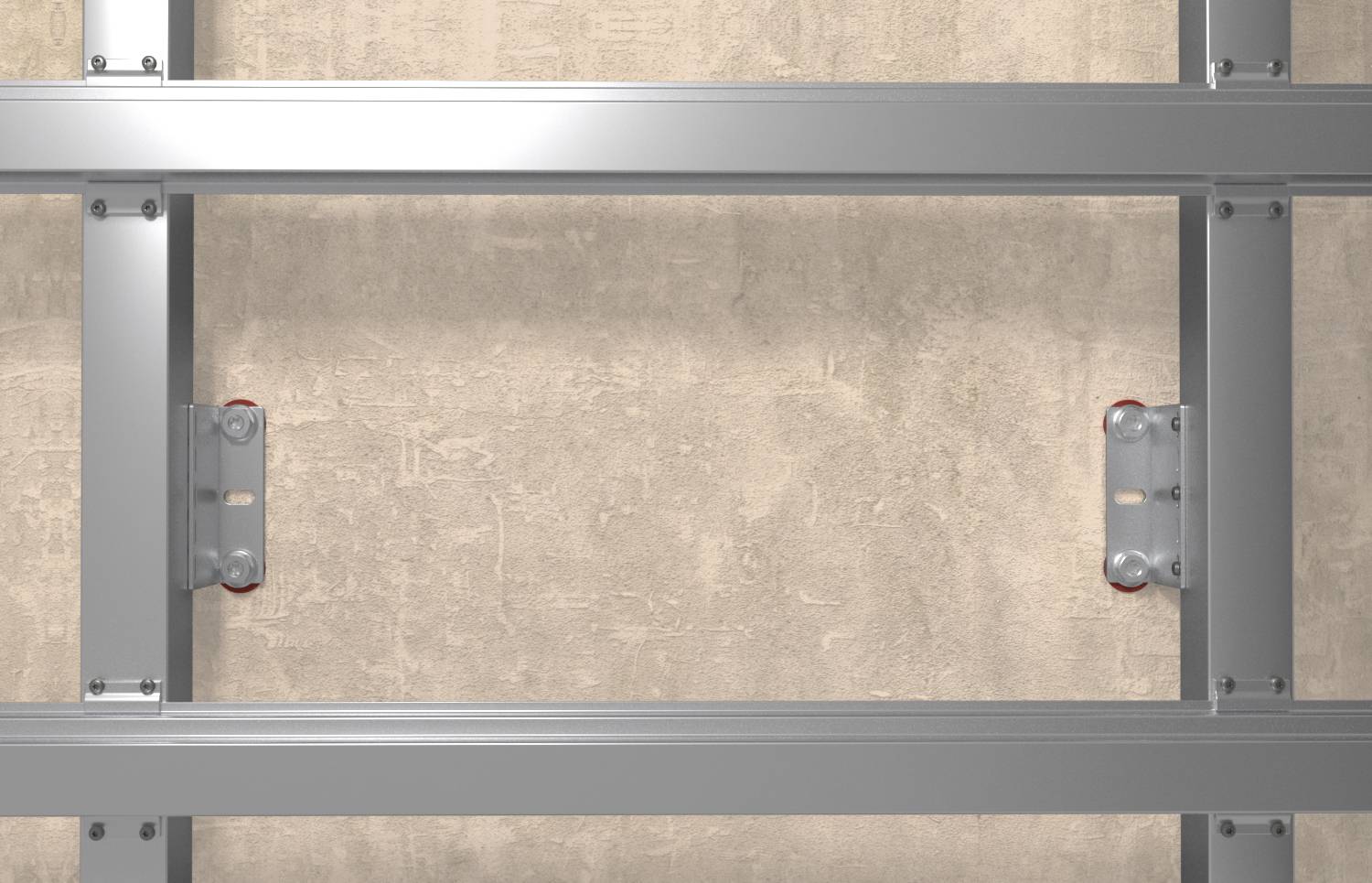

The SXRL-FUS is Fischer Long shaft bolt with the fishermen cap screw with keel disc and integrated bit holder T40 for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. The security screw from electro-galvanised is the Long shaft anchor for attachments of the facades, ceiling and roof substructures made of metal.
